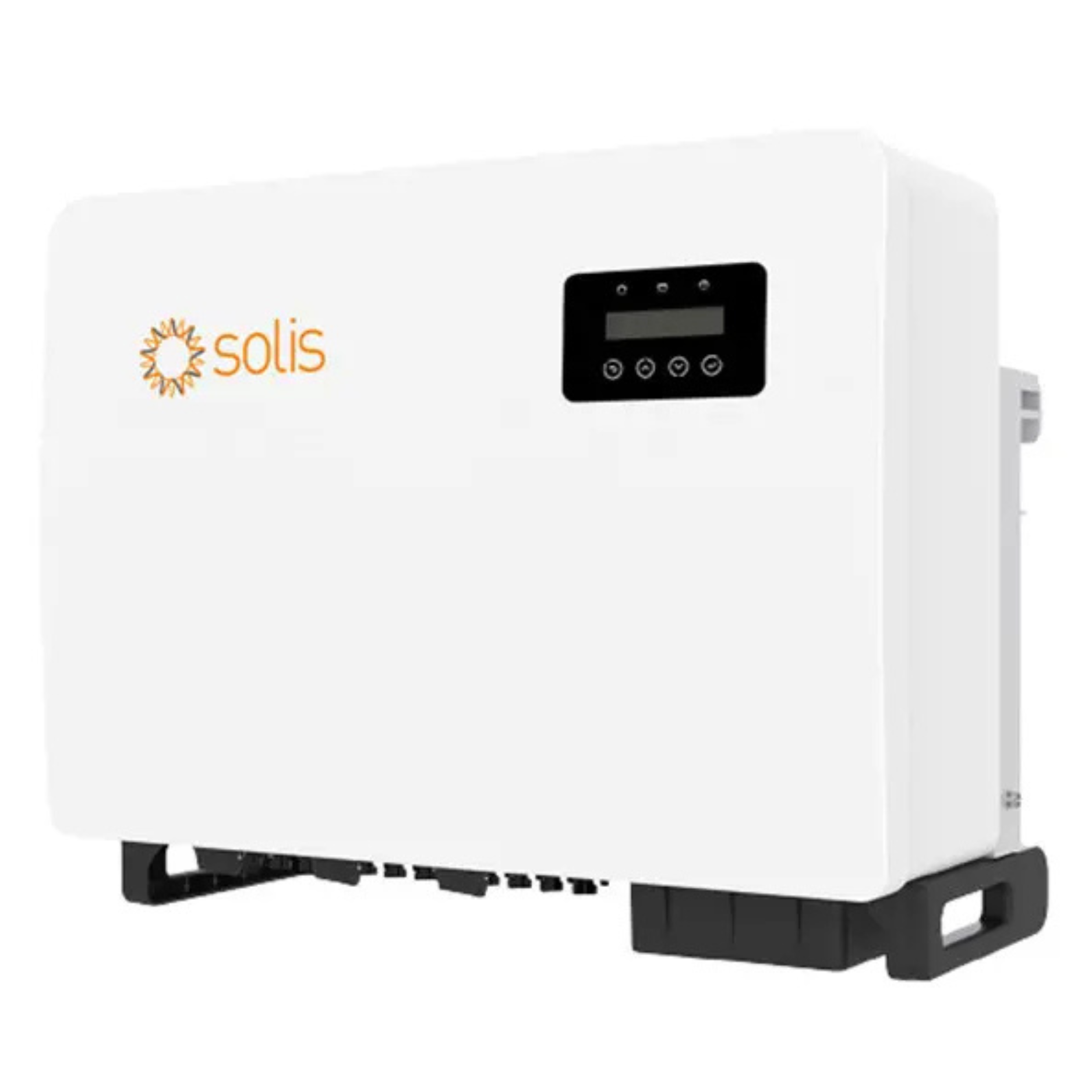

Solis 60kW On-Grid Solar Inverter

PDF Document

Key Features:

1. Superior Efficiency:

   • Achieves a maximum efficiency of 98.7%, providing optimal energy conversion with minimal power loss.

2. Advanced MPPT Technology:

   • Features 4 independent MPPTs, allowing for efficient power generation from multiple solar panel arrays under varying conditions.

3. Wide Voltage Range:

   • Supports a DC input voltage range of 200V to 1000V, ensuring flexibility in system design.

4. Real-Time Monitoring:

   • Compatible with SolisCloud for remote monitoring, performance tracking, and fault diagnostics via mobile or desktop.

5. Comprehensive Safety Features:

   • Includes Type II surge protection, anti-islanding, ground fault detection, and DC reverse polarity protection for secure operation.

6. Efficient Cooling System:

   • Equipped with an intelligent fan cooling system to maintain optimal temperature and ensure long-term reliability.

7. Durable and Weather-Resistant:

   • Designed to endure harsh weather conditions, with a robust build for outdoor installation.

8. User-Friendly Design:

   • Lightweight and compact with an intuitive LCD display for easy setup and monitoring.

Technical Specifications:

• Model: Solis 60kW On-Grid
• Output Power: 60,000W
• Input Voltage (DC): 200V - 1000V
• Max PV Input Current: 22A per MPPT
• Number of MPPTs: 4
• Output Voltage (AC): 230/400V
• Grid Frequency: 50/60 Hz
• Operating Temperature Range: -25°C to 60°C
• Communication Interface: RS485, Wi-Fi, GPRS (optional)
• Cooling Method: Intelligent fan cooling
• Weight: Approx. 70 kg
• Dimensions: 580 x 755 x 310 mm

Applications:

• Ideal for large commercial and industrial solar power systems where high energy output and reliability are essential.

Benefits:

• Cost Efficiency: Reduces reliance on grid electricity, lowering energy bills.
• Eco-Friendly: Contributes to a greener environment by utilizing renewable energy.
• Reliable Operation: Engineered for consistent performance in diverse environments.

Additional Options:

• Compatible with Wi-Fi and GPRS modules for enhanced system monitoring and control.
