Description

Click Here To View Data Sheet

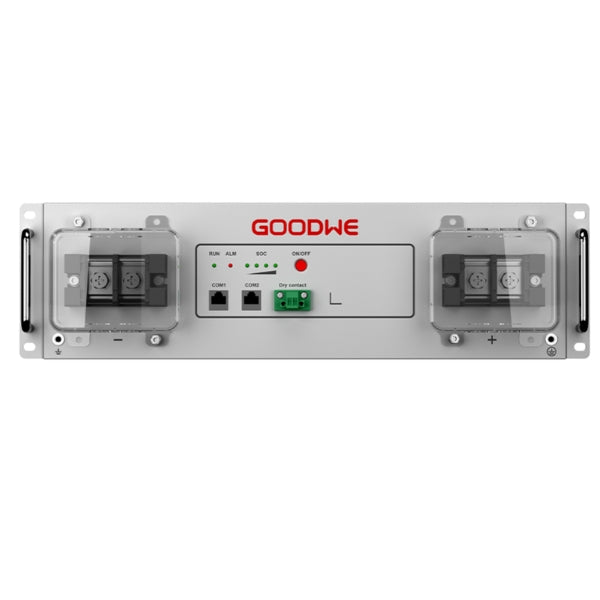

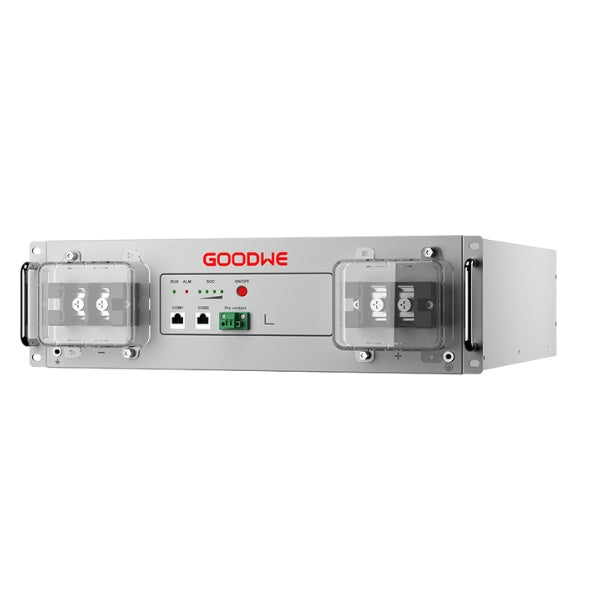

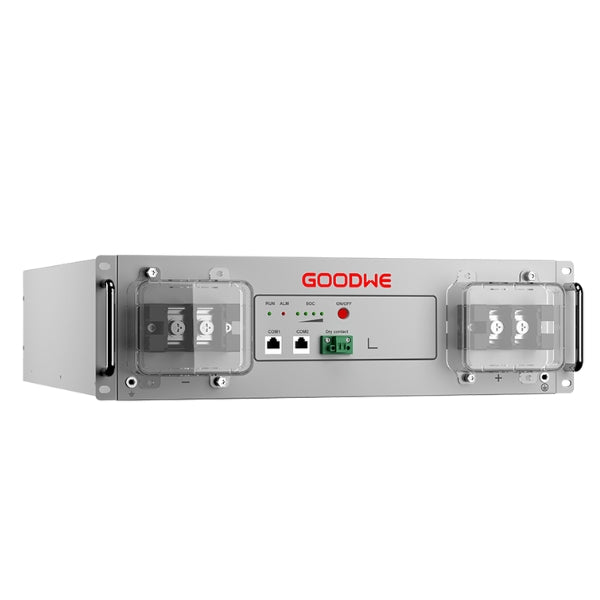

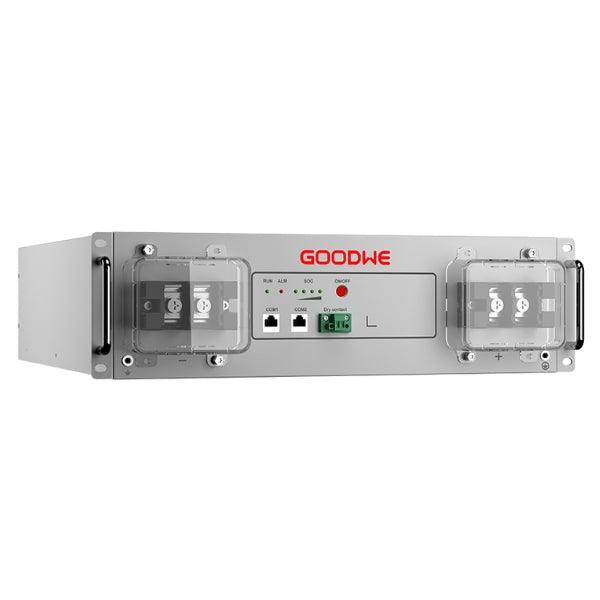

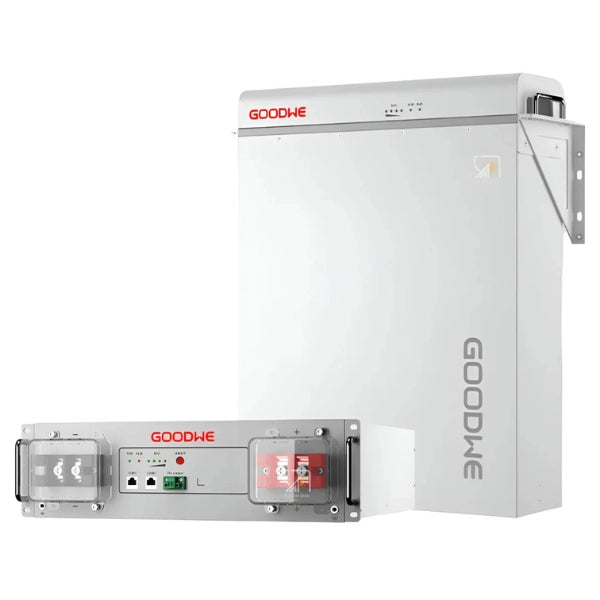

Harnessing the reliability of lithium iron phosphate (LFP) battery cell technology, GoodWe's low-voltage Lynx A G3 Series is crafted to meet residential energy needs. Focused on optimizing self-consumption and providing reliable solar power backup, this battery offers homeowners a seamless energy storage solution. The battery presents high energy density, enabling effective storage of significant energy within a confined space. Each battery pack is designed as a standalone unit, incorporating a dedicated Battery Management System (BMS). It also allows for the connection of up to 30 units in parallel and supports different installation methods for system expansion. With its impressive battery cycle life, investing in this battery ensures enduring value for homes.

Flexible & Adaptable Applications :

  •  Continuous discharge current of up to 150A
  •  Scalable up to 150kWh, 30 units in parallel

Superb Safety & Reliability :

  • Reliable LFP technology with high cycle stability
  • Long life cycle, >6000 times (70% EOL)

Friendly & Thoughtful Design:

  • Compact and lightweight design
  •  Multiple installation methods supported for expansion

Smart Control:

  • Remote diagnosis & update via inverter
  • Auto reboot after undervoltage

Category

Specification

Model

LX A5.0-30

Nominal Battery Energy (kWh)

5.12

Usable Energy (kWh)

5

Cell Type

LFP (LiFePO₄)

Operating Voltage Range (V)

43.20 ~ 58.24

Nominal Charge Current (A)

60

Max. Continuous Charge Current (A)

90

Nominal Discharge Current (A)

100

Max. Continuous Discharge Current (A)

150

Max. Pulse Discharging Current (A)

<200 (30s)

Max. Continuous Discharging Power (W)

7200

Communication

CAN

Operating Temperature (°C)

Charge: 0 to 45Discharge: -20 to +55

Max. Storage Time

12 months (Initial Voltage ≥ 50%)

Max. Operating Altitude (m)

4000

Weight (kg)

44

Dimensions (W × H × D mm)

442 × 133 × 520 (Core part)442 × 133 × 550 (Maximum)

Ingress Protection Rating

IP65

Applications

On-Grid / Off-Grid / Backup / Hybrid

Scalability

Max. 30 in Parallel (150kWh)(Handle Tool or Combiner Box is Optional)

Mounting Method

19-inch standard rack, Rack-Mounted, Wall-Mounted

Round-trip Efficiency

≥96%

Cycle Life

6000 cycles @ 25°C 0.2C 70% EOL

Safety

IEC62619, IEC63056, NRS097-2-1

EMC

EN IEC 61000-6-1, EN IEC 61000-6-2, EN IEC 61000-6-3, EN IEC 61000-6-4

Transportation

UN38.3, ADR

Environment

ROHS
