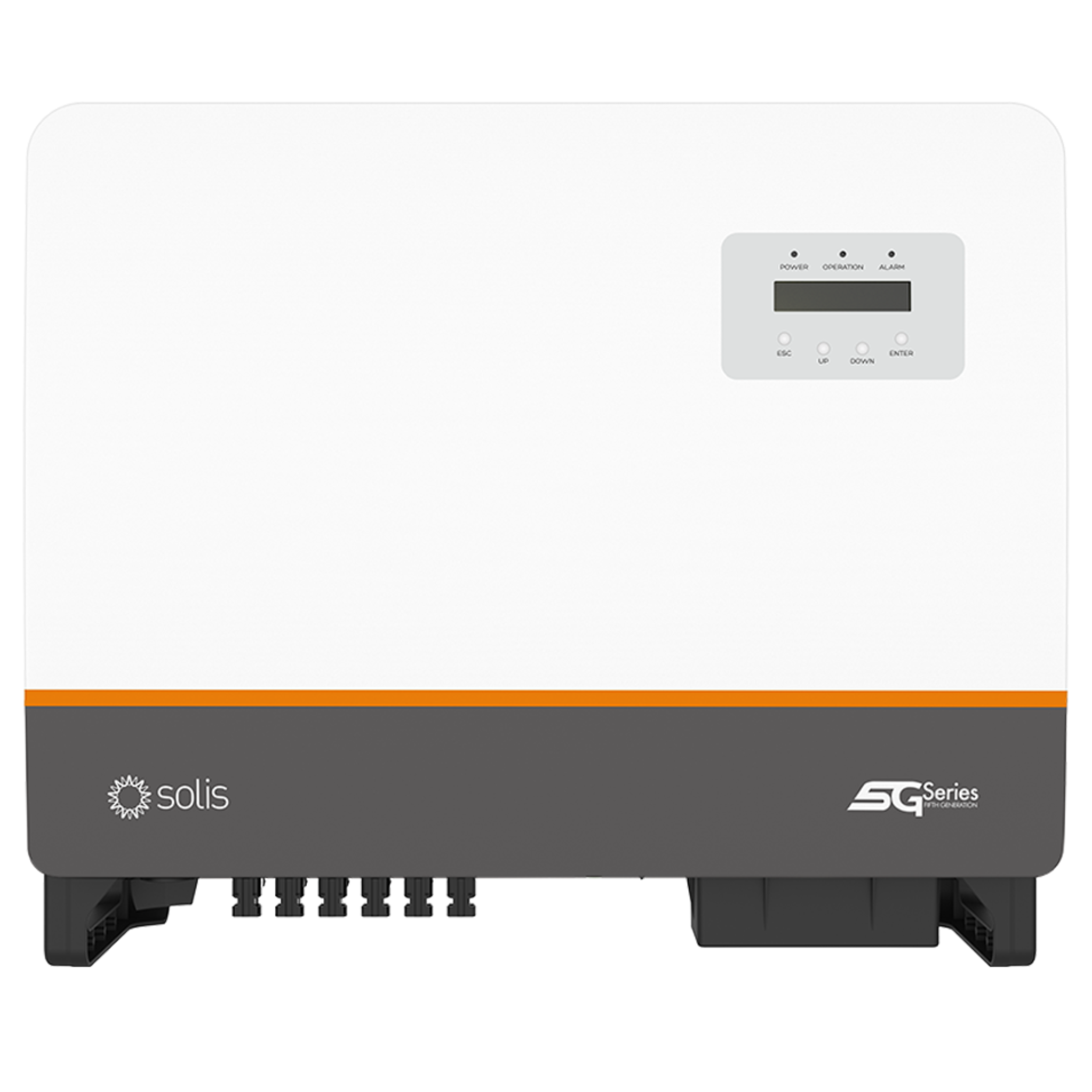

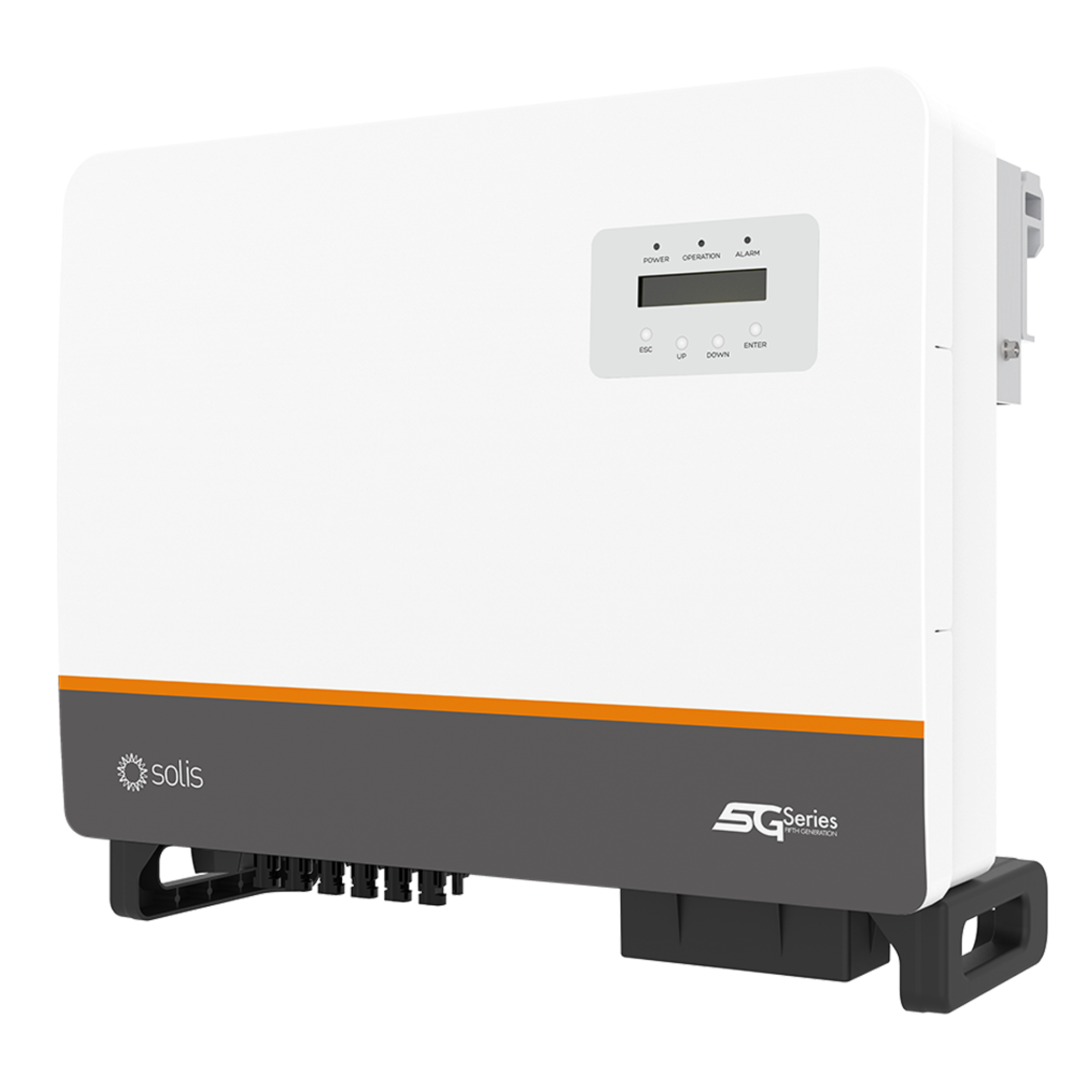

Solis 30kW On-Grid Solar Inverter

PDF Document

Key Features:

1. Exceptional Efficiency:

   • Delivers a maximum efficiency of 98.8%, ensuring optimal energy conversion with minimal power loss.

2. Dual MPPT Technology:

   • Features 2 independent Maximum Power Point Trackers (MPPTs) to optimize energy harvesting from multiple solar panel arrays.

3. Wide Operating Voltage Range:

   • Operates within a broad DC input voltage range of 200V to 1000V, ensuring compatibility with various PV configurations.

4. Real-Time Monitoring:

   • Supports SolisCloud for remote system monitoring, performance tracking, and diagnostics via mobile or desktop applications.

5. Comprehensive Safety Features:

   • Includes Type II surge protection, anti-islanding, and ground fault protection for safe and reliable operation.

6. User-Friendly Design:

   • Compact, lightweight design with an intuitive LCD display for monitoring and easy configuration.

7. Effective Cooling System:

   • Advanced natural convection cooling reduces the need for maintenance and ensures reliable operation in hot climates.

8. Durability and Longevity:

   • Engineered with high-quality materials to withstand harsh environmental conditions.

Technical Specifications:

• Model: Solis 30kW On-Grid
• Output Power: 30,000W
• Input Voltage (DC): 200V - 1000V
• Max PV Input Current: 22A per MPPT
• Number of MPPTs: 2
• Output Voltage (AC): 230/400V
• Grid Frequency: 50/60 Hz
• Operating Temperature Range: -25°C to 60°C
• Communication Interface: RS485, Wi-Fi, GPRS (optional)
• Cooling Method: Natural convection
• Weight: Approx. 26 kg
• Dimensions: 310 x 563 x 219 mm

Applications:

• Designed for large residential, commercial, and industrial solar systems requiring high power output and reliable performance.

Benefits:

• Energy Savings: Reduces electricity costs by harnessing solar energy.
• Eco-Friendly: Promotes sustainable and renewable energy usage.
• Reliable Performance: Optimized for long-term use in diverse environmental conditions.

Additional Options:

• Compatible with Wi-Fi and GPRS modules for enhanced monitoring and control.
