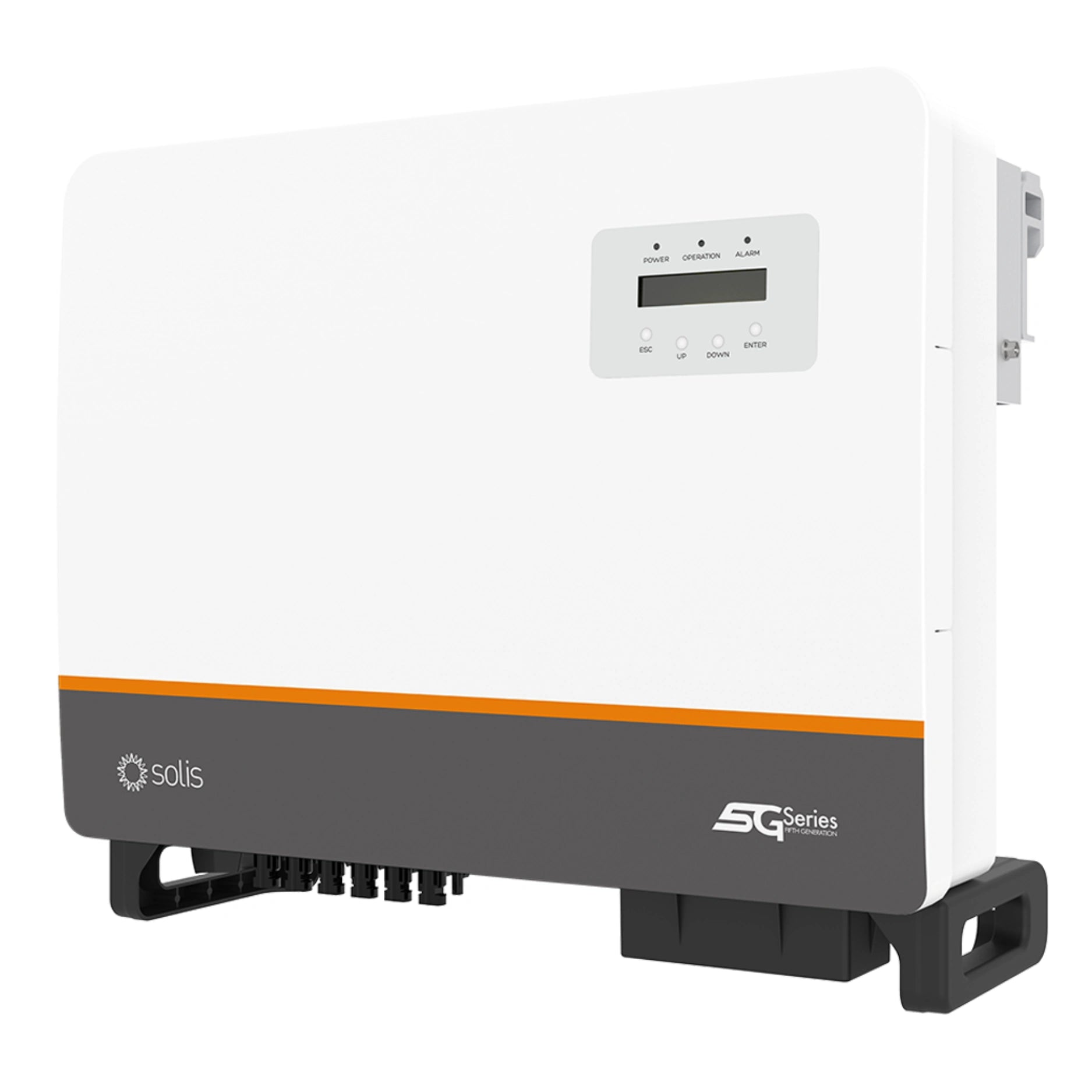

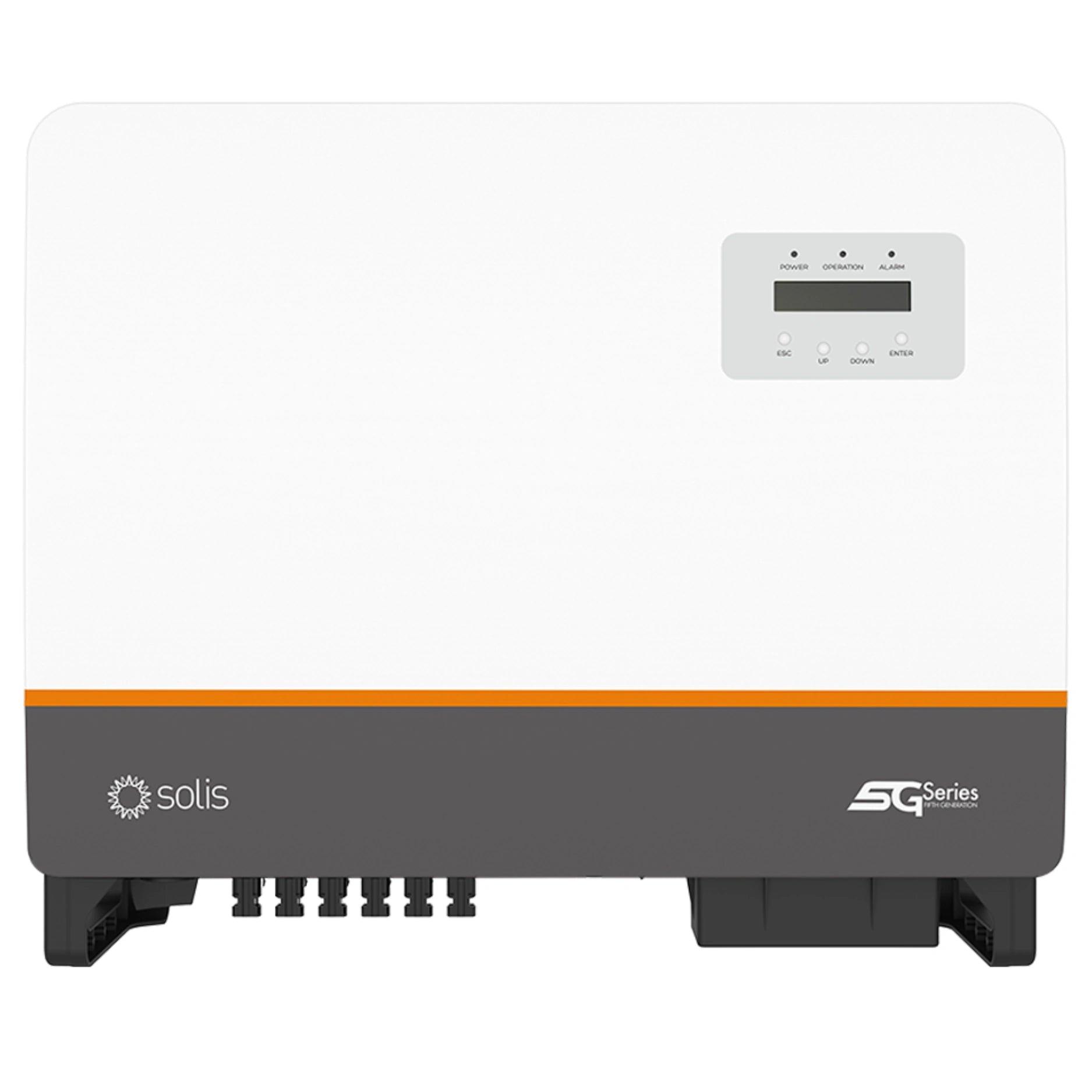

Solis 25kW On-Grid Solar Inverter

PDF Document

Key Features:

1. High Efficiency:

   • Offers a maximum efficiency of 98.8%, ensuring superior energy conversion and reduced energy loss.

2. Advanced MPPT Technology:

   • Equipped with 2 independent Maximum Power Point Trackers (MPPTs) for optimized energy harvesting from different solar panel arrays.

3. Wide Voltage Range:

   • Operates within a broad input voltage range of 200V to 1000V, ensuring consistent performance in varying conditions.

4. Real-Time Monitoring:

   • Supports SolisCloud for remote monitoring and system diagnostics via mobile or desktop devices.

5. Enhanced Safety Features:

   • Includes Type II surge protection, anti-islanding, and ground fault protection for reliable and safe operation.

6. User-Friendly Design:

   • Compact and lightweight, with an easy-to-read LCD screen for monitoring and configuration.

7. Efficient Cooling System:

   • Natural convection cooling improves reliability and reduces the need for maintenance.

8. Durability:

   • Built to endure harsh weather conditions with a robust and durable design.

Technical Specifications:

• Model: Solis 25kW On-Grid
• Output Power: 25,000W
• Input Voltage (DC): 200V - 1000V
• Max PV Input Current: 22A per MPPT
• Number of MPPTs: 2
• Output Voltage (AC): 230/400V
• Grid Frequency: 50/60 Hz
• Operating Temperature Range: -25°C to 60°C
• Communication Interface: RS485, Wi-Fi, GPRS (optional)
• Cooling Method: Natural convection
• Weight: Approx. 25 kg
• Dimensions: 310 x 563 x 219 mm

Applications:

• Ideal for commercial and industrial solar installations requiring high energy output and reliability.

Benefits:

• Cost Savings: Significantly reduces electricity costs by leveraging solar energy.
• Eco-Friendly: Promotes the use of clean and renewable energy.
• Reliable Performance: Engineered for long-term use under challenging conditions.

Additional Options:

• Compatible with Wi-Fi or GPRS modules for enhanced monitoring capabilities.
