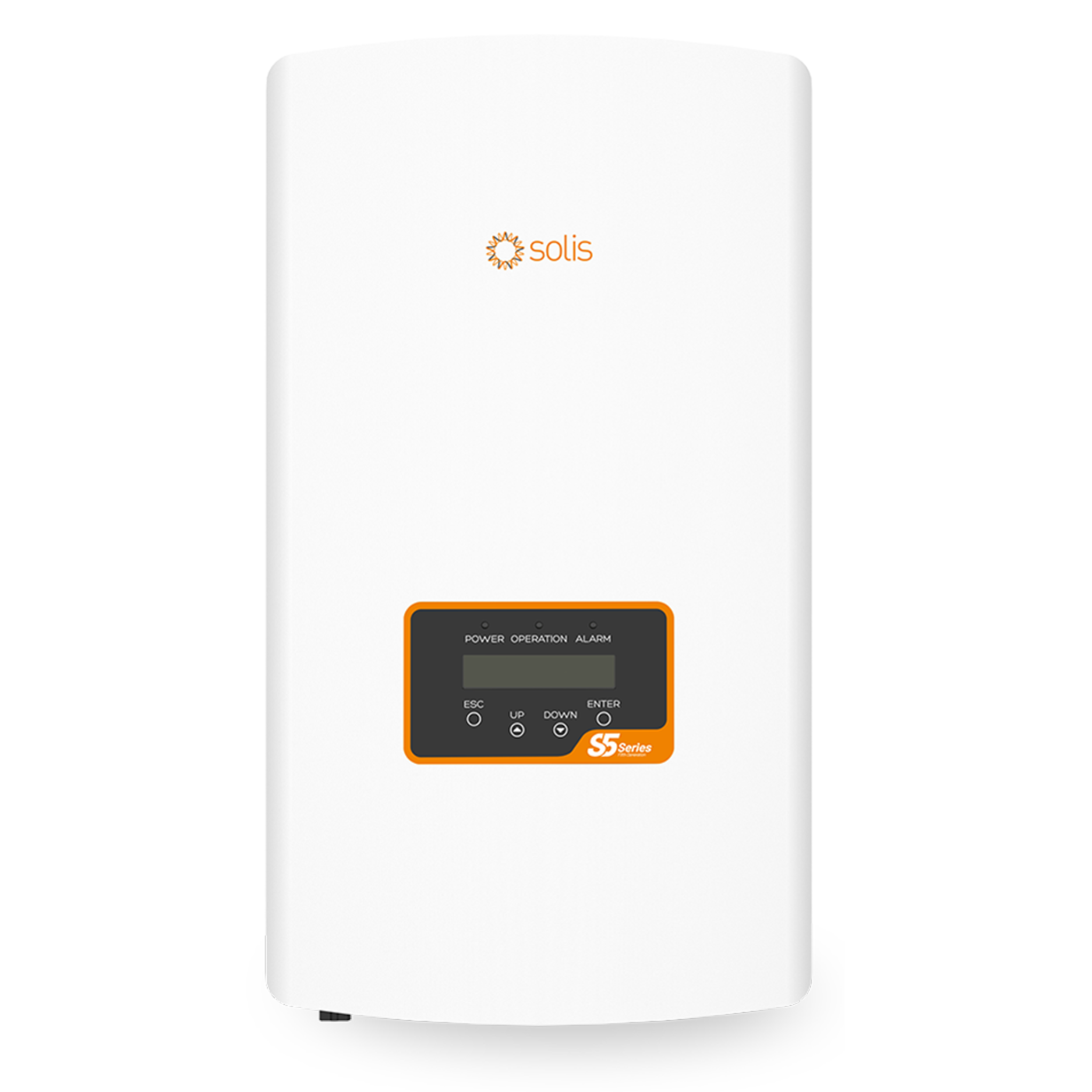

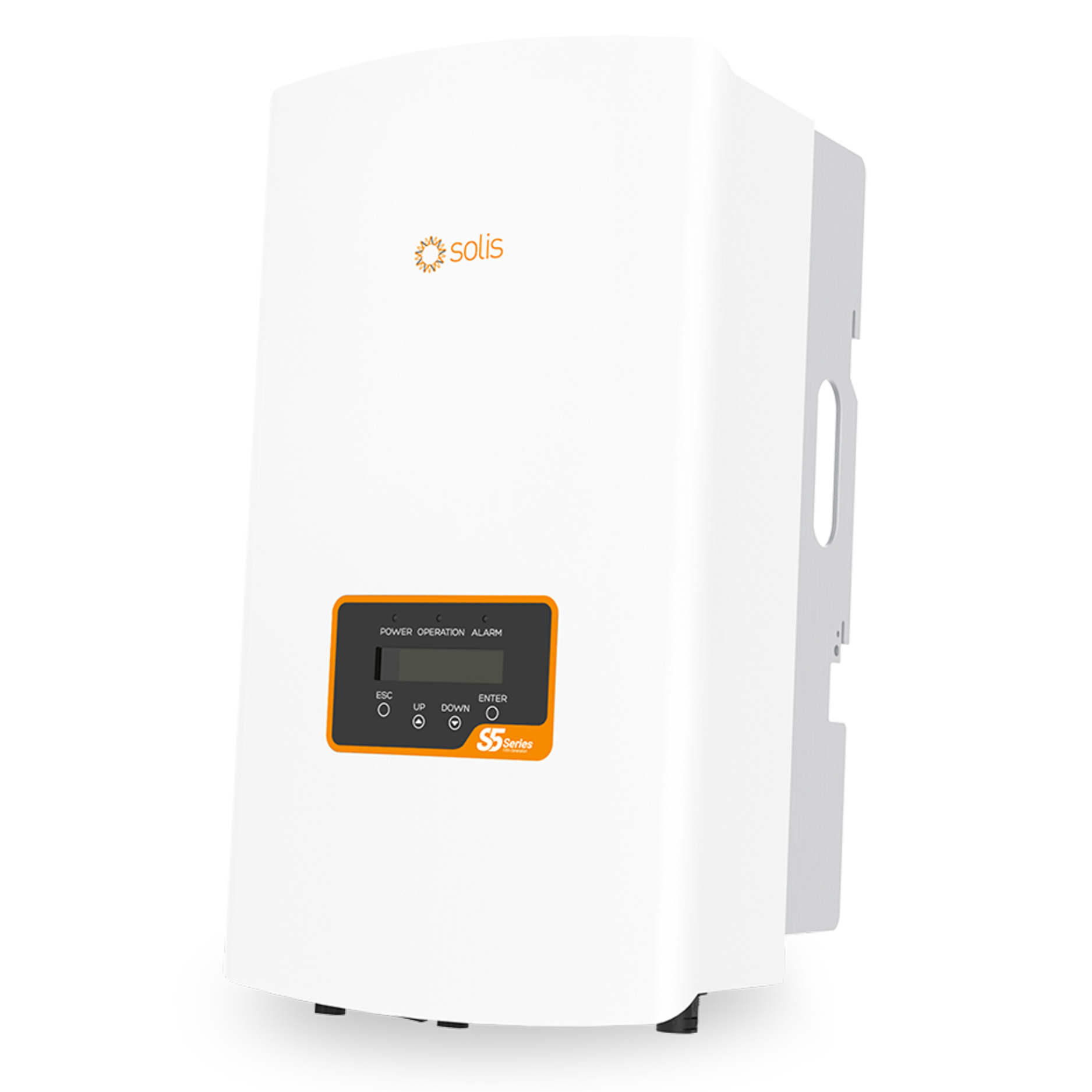

Solis 20kW On-Grid Solar Inverter

PDF Document

Key Features:

1. Superior Efficiency:

   • Achieves a maximum efficiency of 98.7%, ensuring excellent energy conversion and minimal power loss.

2. Advanced Dual MPPT Technology:

   • Equipped with 2 independent MPPTs, allowing flexible and optimized power generation from different solar panel configurations.

3. Wide Operating Voltage Range:

   • Operates effectively within a voltage range of 200V to 1000V, suitable for varied environmental conditions.

4. Real-Time Monitoring:

   • Supports SolisCloud for remote monitoring and system performance analysis via mobile or desktop devices.

5. Robust Safety Features:

   • Includes Type II surge protection, ground fault protection, and anti-islanding, ensuring safe and reliable operation.

6. Durable Build:

   • Designed to withstand harsh environments with high-quality materials and a natural convection cooling system.

7. User-Friendly Interface:

   • Features an intuitive LCD display for quick setup, monitoring, and diagnostics.

8. Low Maintenance:

   • Simple installation and low operational costs, reducing long-term maintenance efforts.

Technical Specifications:

• Model: Solis 20kW On-Grid
• Output Power: 20,000W
• Input Voltage (DC): 200V - 1000V
• Max PV Input Current: 22A per MPPT
• Number of MPPTs: 2
• Output Voltage (AC): 230/400V
• Grid Frequency: 50/60 Hz
• Operating Temperature Range: -25°C to 60°C
• Communication Interface: RS485, Wi-Fi, GPRS (optional)
• Cooling Method: Natural convection
• Weight: Approx. 24 kg
• Dimensions: 310 x 563 x 219 mm

Applications:

• Perfect for medium to large-scale residential, commercial, and industrial solar installations where high performance and reliability are critical.

Benefits:

• Cost-Effective: Reduces reliance on grid electricity, lowering energy bills.
• Environmentally Friendly: Supports sustainable energy production.
• High Reliability: Engineered for long-lasting performance under challenging conditions.

Additional Options:

• Compatible with Wi-Fi or GPRS monitoring kits for enhanced system control and visibility.
