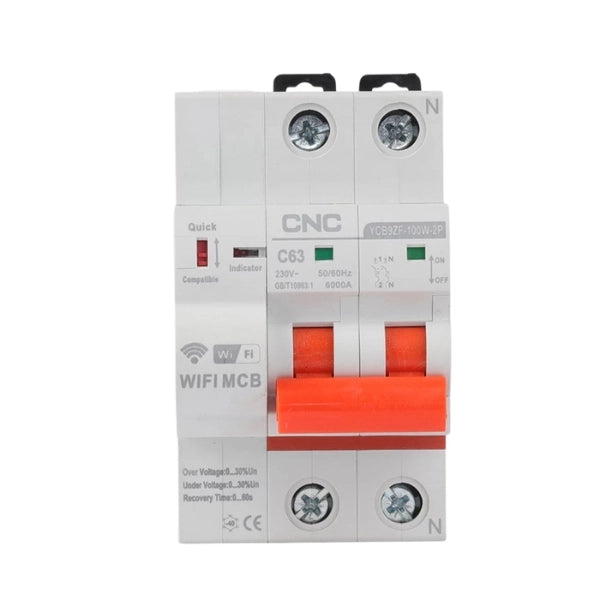

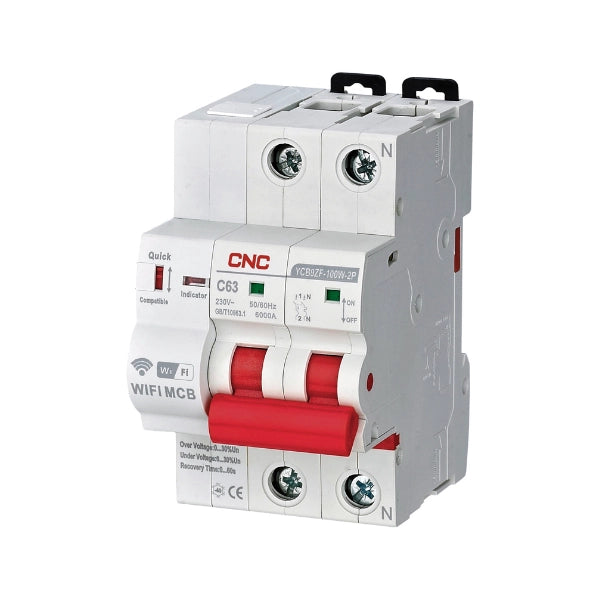

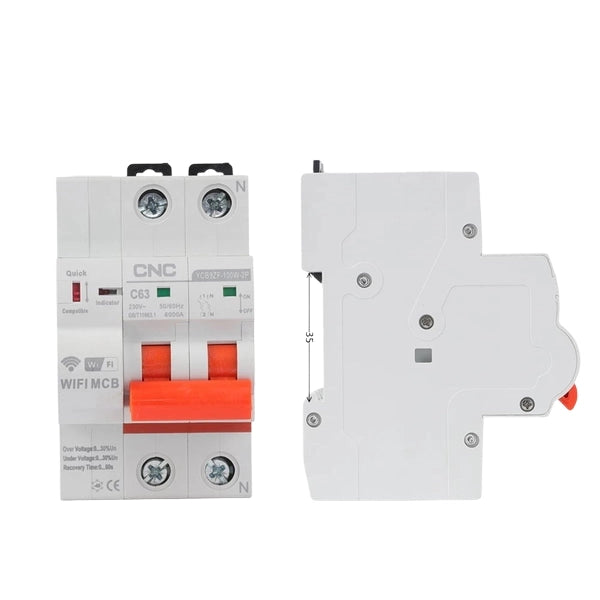

CNC 2P WiFi Smart Circuit Breaker YCB9ZF-100A – Remote Control & Protection

Description

Type：YCB9ZF-100W
Rated current：0~63A，100A
Poles：2 Pole
Short circuit breaking capacity：6kA
Mechanical life：More than 20000 times
Electrical life：More than 6000 times
Operating environment temperature：40 ℃~70 ℃

General

• Data monitoring: keeping an eye on and analyzing data all the time to make operations and management run smoothly.
• Fault alarm and protection: Makes sure that problems are found quickly and starts protective measures to stop more damage.
• Centralized management: a control system in one place that makes it easy to keep an eye on and run operations.
• Portable barrier remover: a tool made to safely take down barriers when needed.
• Deal with dangerous situations anywhere and at any time: lets you deal with dangerous situations on-site or from afar.
• Remote control: Being able to protect and manage operations from afar for added convenience.
• Rights management: controls who can access information and what rights they have for authorized users.
• Data report: Generates reports based on collected data for analysis and decision-making.

Features:

Full protection for human electricity safety

local and remote integrated control

operation record can be checked

monitoring for electrical fires

fault early warning; overvoltage and underload protection

voltage/current imbalance and fault phase protection

rights management

automatic locking and unlocking

local and remote locking

electricity statistics and status indication

Under Normal Condition of Voltage Leakage:
Failure of automated operations: If the device is in the tripping state, it will not automatically close but can only be activated remotely or manually via local control.

Manual intervention: If the device is in the closed condition, it won't open automatically. It can only be unlocked remotely through device control or manually with local operation.

Under Abnormal Voltage Leakage:

Automatic fault detection: If the equipment is in the closed state, it will automatically open when voltage fluctuation occurs, and return to normal once the issue is resolved.

Remote troubleshooting: If the device is in the opening condition, it will not close automatically. Once the voltage is stabilized, the device will need manual reset or remote operation to restore the system.

Wi-Fi breaker connected with the Tuya smart app:

Users can remotely monitor and control the Wi-Fi breaker by connecting it to the Tuya Smart App. The software allows users to remotely turn on or off the breaker, monitor energy usage, and receive real-time status updates. The Tuya Smart App enhances convenience and provides intelligent control through basic remote capabilities, allowing users to schedule tasks, automate processes, and ensure system security.
