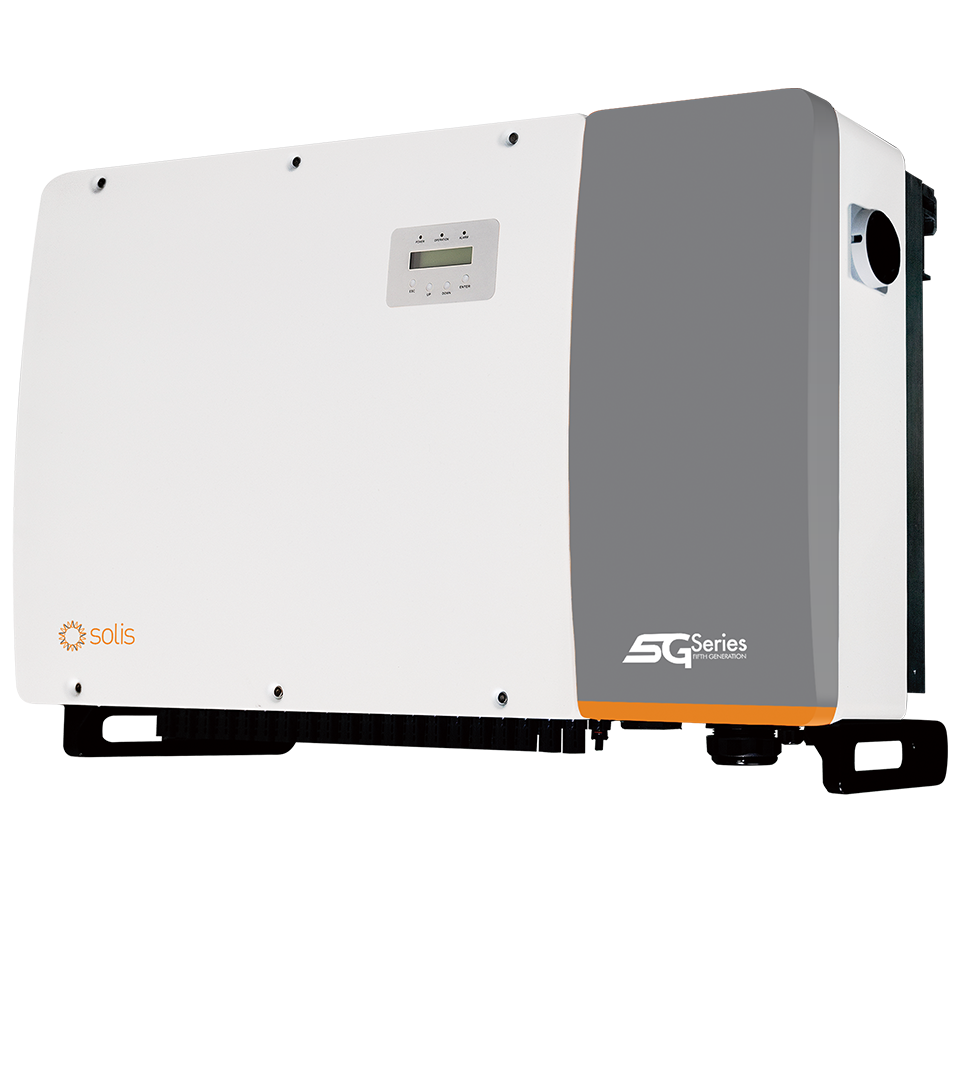

Solis 125kW Three Phase On-Grid Solar Inverter

PDF Document

Key Features:

1. Exceptional Efficiency:

   • Delivers a maximum efficiency of 99%, ensuring superior energy conversion with minimal losses.

2. Multiple MPPTs for Maximum Output:

   • Equipped with 10 independent MPPTs to optimize energy harvest from different solar panel arrays, even under varying environmental conditions.

3. Wide DC Input Voltage Range:

   • Supports a DC input voltage range of 180V to 1000V, providing flexibility for various system designs and configurations.

4. Advanced Grid Management:

   • Features active and reactive power control, grid support functionality, and compatibility with high-voltage utility systems.

5. Real-Time Monitoring:

   • Supports SolisCloud for remote system monitoring, diagnostics, and performance optimization via mobile or desktop.

6. Enhanced Safety Features:

   • Includes Type II surge protection, anti-islanding, ground fault detection, and over-voltage/over-current protection to ensure safe and reliable operation.

7. Robust Cooling System:

   • Designed with intelligent fan cooling, enabling the inverter to operate efficiently under high loads and in hot environments.

8. Durable Design for Harsh Conditions:

   • IP66-rated for outdoor installation, ensuring resistance to dust and water.

Technical Specifications:

• Model: Solis 125kW Three Phase On-Grid
• Output Power: 125,000W
• Input Voltage (DC): 180V - 1000V
• Max PV Input Current: 30A per MPPT
• Number of MPPTs: 10
• Output Voltage (AC): 320/400V
• Grid Frequency: 50/60 Hz
• Operating Temperature Range: -25°C to 60°C
• Communication Interface: RS485, Wi-Fi, GPRS (optional)
• Cooling Method: Intelligent fan cooling
• Weight: Approx. 95 kg
• Dimensions: 970 x 600 x 368 mm

Applications:

• Designed for large-scale commercial, industrial, and utility solar power installations, providing high energy output and reliable grid connectivity.

Benefits:

• Cost-Effective Energy Solution: Reduces electricity costs significantly by leveraging renewable solar energy.
• Eco-Friendly Power Generation: Minimizes carbon footprint and supports a cleaner environment.
• Optimized System Performance: Multiple MPPTs and real-time monitoring ensure maximum energy generation.

Additional Options:

• Compatible with Wi-Fi and GPRS modules for enhanced system management and monitoring.
