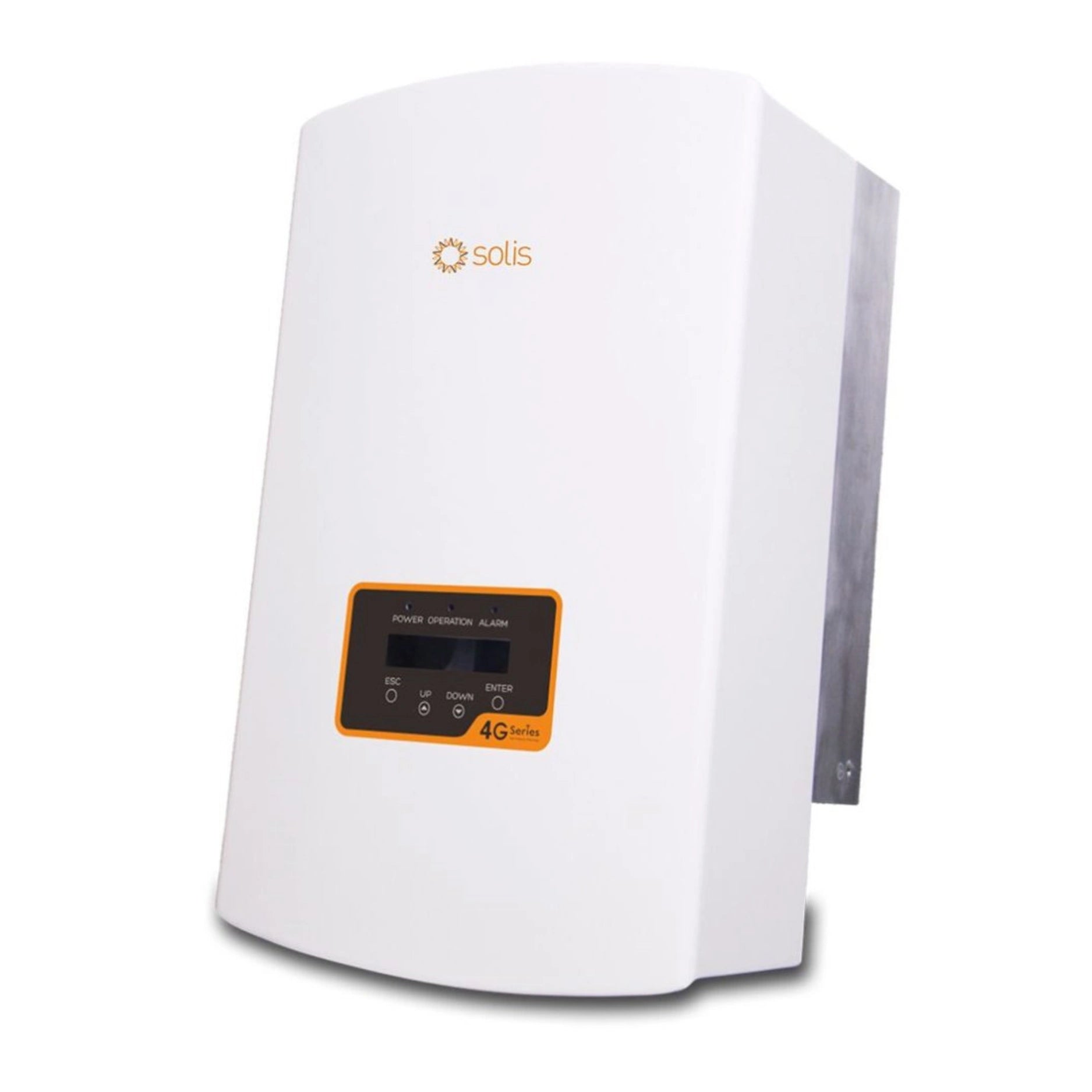

Solis 10kW On-Grid Solar Inverter

PDF Document

The Solis 10kW On-Grid Solar Inverter is a high-performance device designed to efficiently convert DC power from solar panels into AC power for residential and commercial applications. Its advanced features and robust design make it a reliable choice for various energy needs.

Key Features:

• High Efficiency: Achieves a maximum efficiency of 98.5%, ensuring optimal energy conversion and minimal losses.

• Dual MPPT Design: Equipped with two Maximum Power Point Tracking (MPPT) channels, each supporting up to 16A of current, allowing for flexible panel configurations and improved energy harvest.

• Wide Voltage Range: Operates with an ultra-low start-up voltage of 180V and a maximum PV input voltage of 1100V, providing flexibility in system design.

• Integrated AFCI: Includes Arc Fault Circuit Interruption (AFCI) for enhanced safety, detecting and mitigating arc faults in the DC circuit.

• Type-II Surge Protection: Features Type-II over-voltage surge protection for both DC and AC sides, safeguarding the system against voltage spikes.

• IP66 Rating: Designed with an IP66 rating, ensuring durability and protection against dust and water ingress.

• Smart Grid Ready: Compliant with international standards for seamless integration with the grid, supporting features like dynamic peak management and zero feed-in.

Technical Specifications:

• Model: Solis S5-GR3P10K

• Rated Output Power: 10kW

• Input Voltage (PV Side):

  • Max. Input Voltage: 1100V
  • MPPT Voltage Range: 180V - 850V
  • Start-Up Voltage: 180V
  • Max. Input Current: 16A per MPPT

• Output Voltage: 400V (Three-Phase)

• Output Frequency: 50Hz/60Hz

• Operating Temperature Range: -25°C to +60°C

• Dimensions: 480mm (W) x 480mm (H) x 176mm (D)

• Weight: 19.8 kg

• Ingress Protection: IP66

Applications:

The Solis 10kW On-Grid Solar Inverter is ideal for:

• Residential Solar Installations: Providing reliable power for household appliances and reducing electricity bills.

• Small to Medium Commercial Use: Supporting energy demands in small to medium-sized businesses.
