SolarMax ONYX PV9000 6kW Ultra Hybrid Inverter

PDF Document

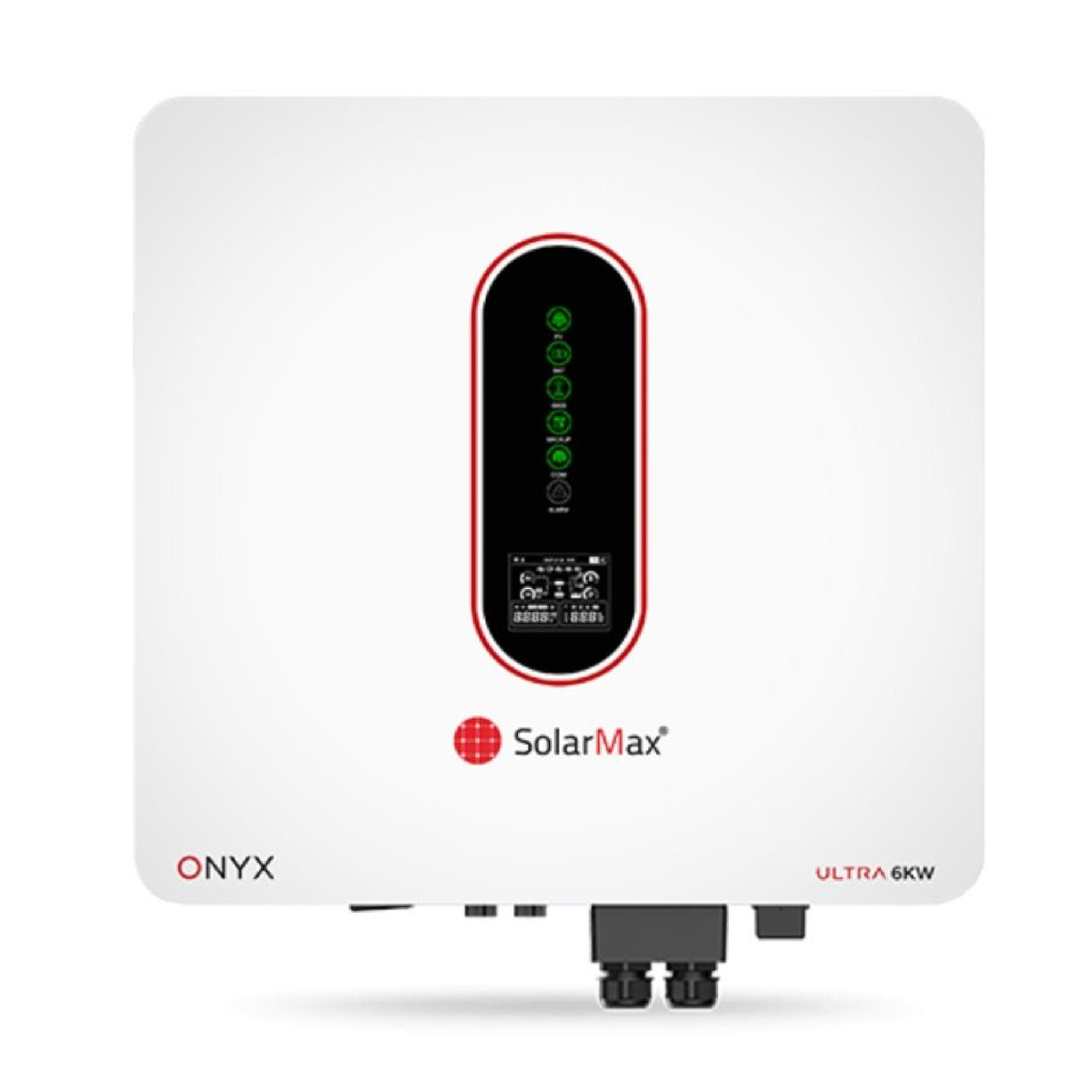

SolarMax SM-ONYX-UL-6KW Hybrid Solar Inverter

The SolarMax SM-ONYX-UL-6KW is an upgraded 2024 model offering advanced hybrid functionality with dual MPPT and dual AC outputs, making it a versatile choice for residential, commercial, and off-grid solar installations. This inverter supports seamless integration with solar panels, battery systems, and generators, ensuring maximum energy efficiency and flexibility.

Key Features

·         Rated Power: 6000W AC output, ideal for powering large residential or commercial systems.

·         Dual MPPT PV Input: Capable of handling up to 9000W from solar panels, allowing for optimal energy harvesting and management across different strings of panels.

·         Max Charging Current: 120A, ensuring fast charging of battery systems.

·         MPPT Voltage Range: 70V to 520V DC, offering flexibility with a wide range of solar panels.

·         Max PV Input Voltage: 550V DC, providing high voltage capacity to suit various solar setups.

·         Battery Voltage: 48V with a range of 40V to 60V DC, compatible with both lead-acid and lithium batteries.

·         Built-in Battery Management System (BMS): Optimizes battery life and ensures safe, efficient charging and discharging.

·         Set Bulk & Float Voltage for Lead Acid/Flooded Batteries: New feature for better battery charging control.

·         Dual AC Output: 6000W, allowing you to distribute power to different loads or areas within your property.

• LCD Display: Provides clear and accessible status information and settings for easy operation and monitoring.
• WiFi & Bluetooth Integration: Includes WiFi dongle for remote monitoring and firmware updates; Bluetooth for parameter settings from mobile devices.
• Parallel Operation: Supports parallel configurations with 9 units in single-phase and 3 units in three-phase for expanded system capacity.
• Generator Compatibility: Can work with generators and automatically start the generator when required, adding flexibility in off-grid and backup scenarios.
• Pure Sine Wave Output: Ensures stable and clean power for sensitive electronics and appliances.
• Net Metering: Supports feed-in to the grid, allowing users to earn credits for excess energy produced.
• Easy Installation: Plug-and-play setup for quick and hassle-free installation.
• CT Function for Self Consumption: Helps to optimize self-consumption of solar power, ensuring maximum use of generated energy.
