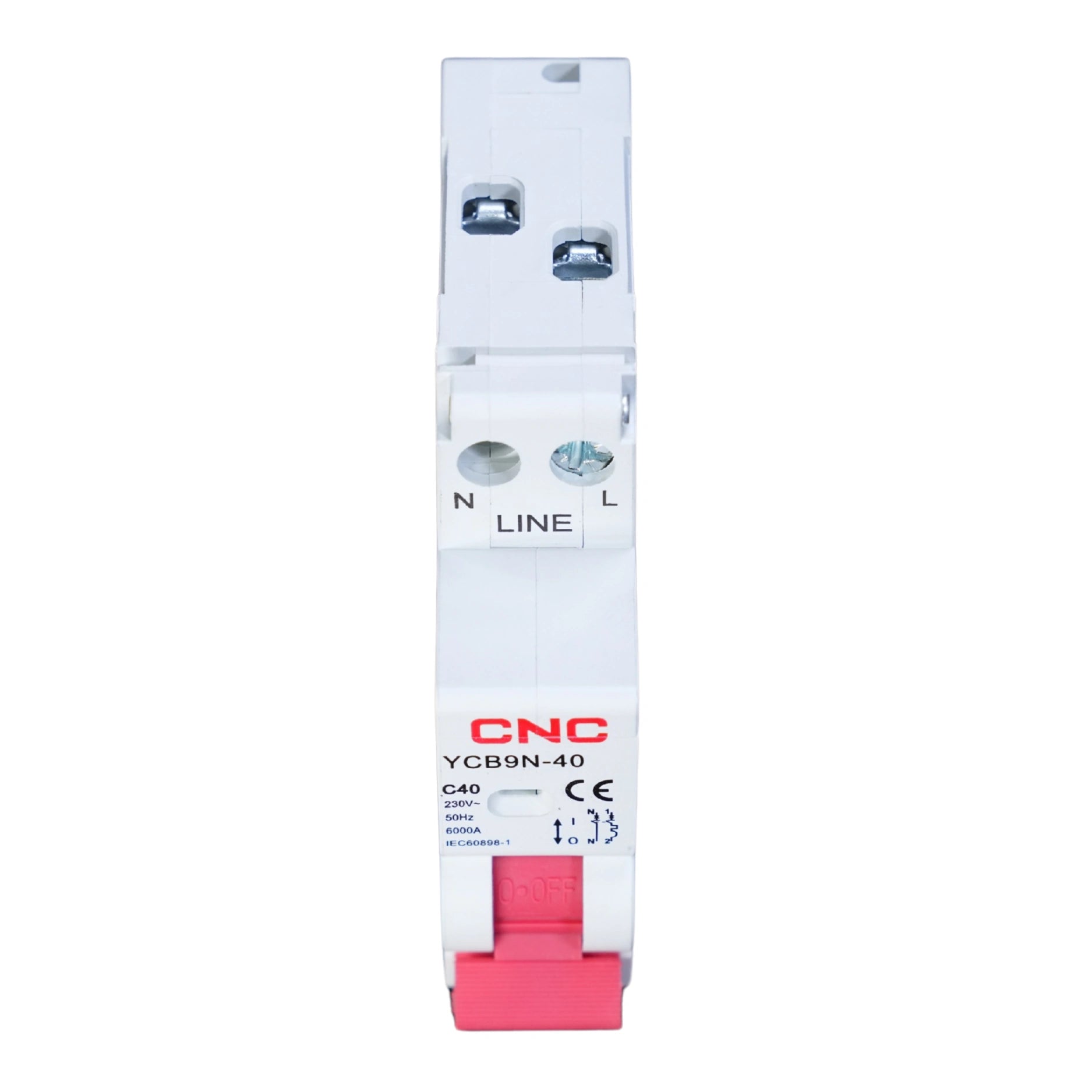

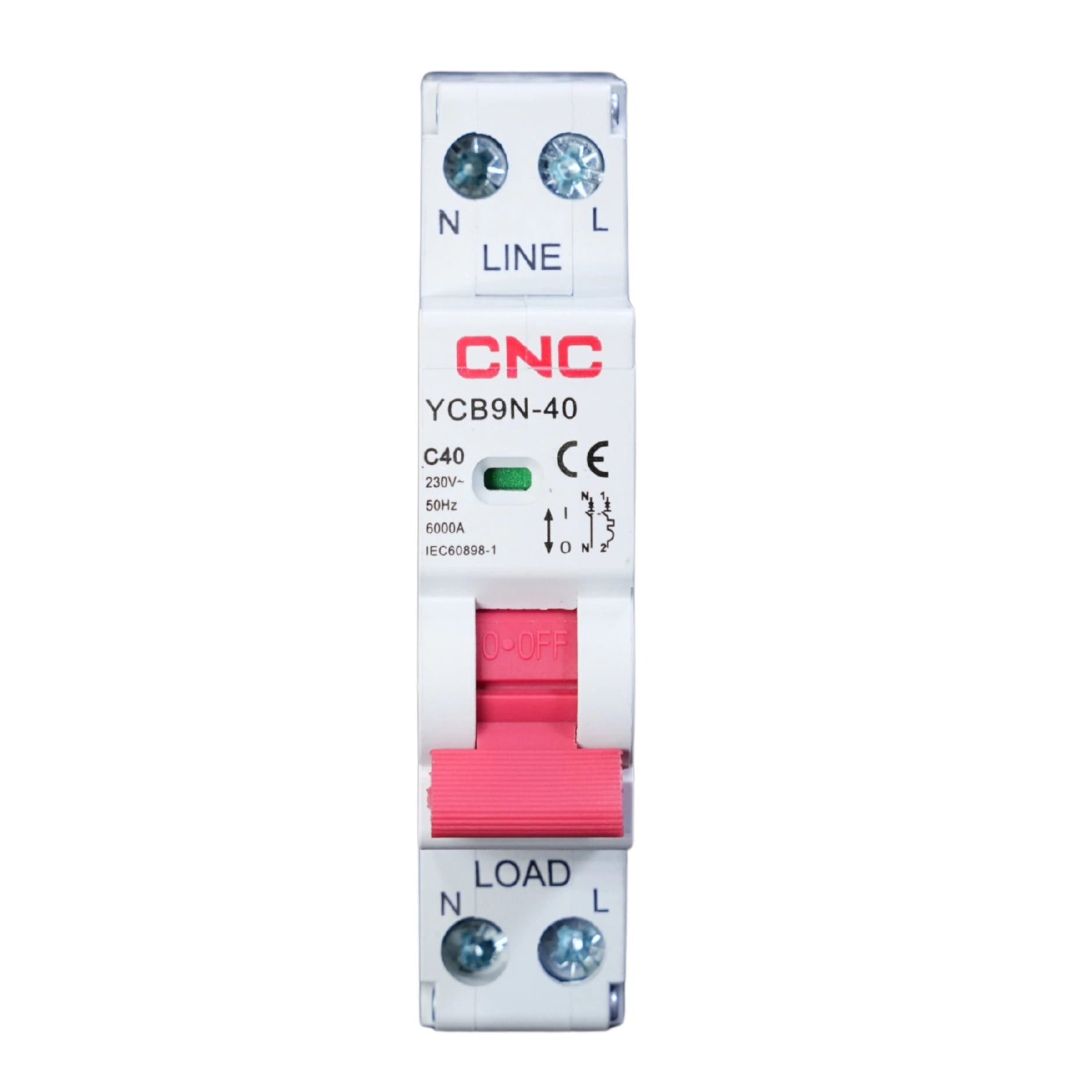

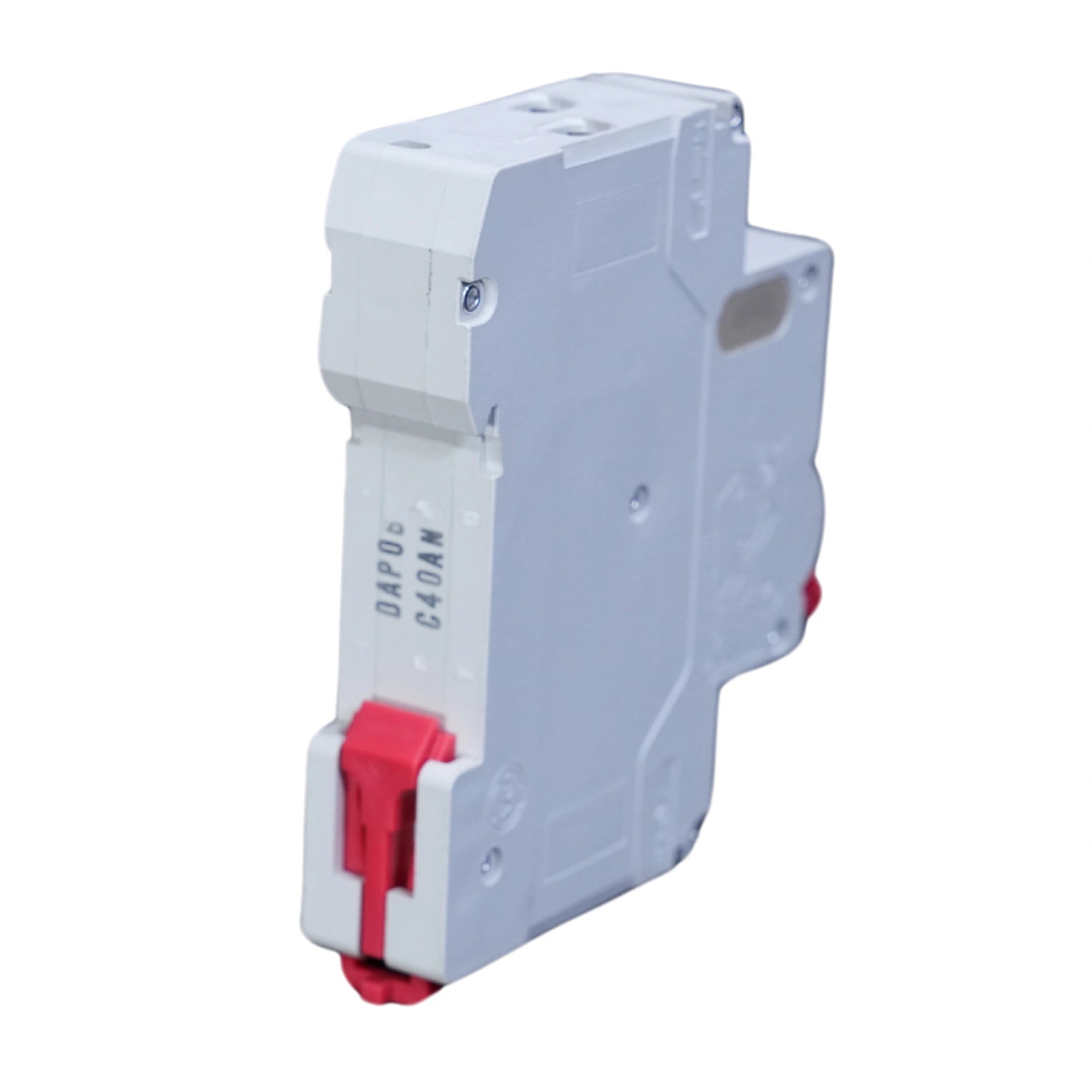

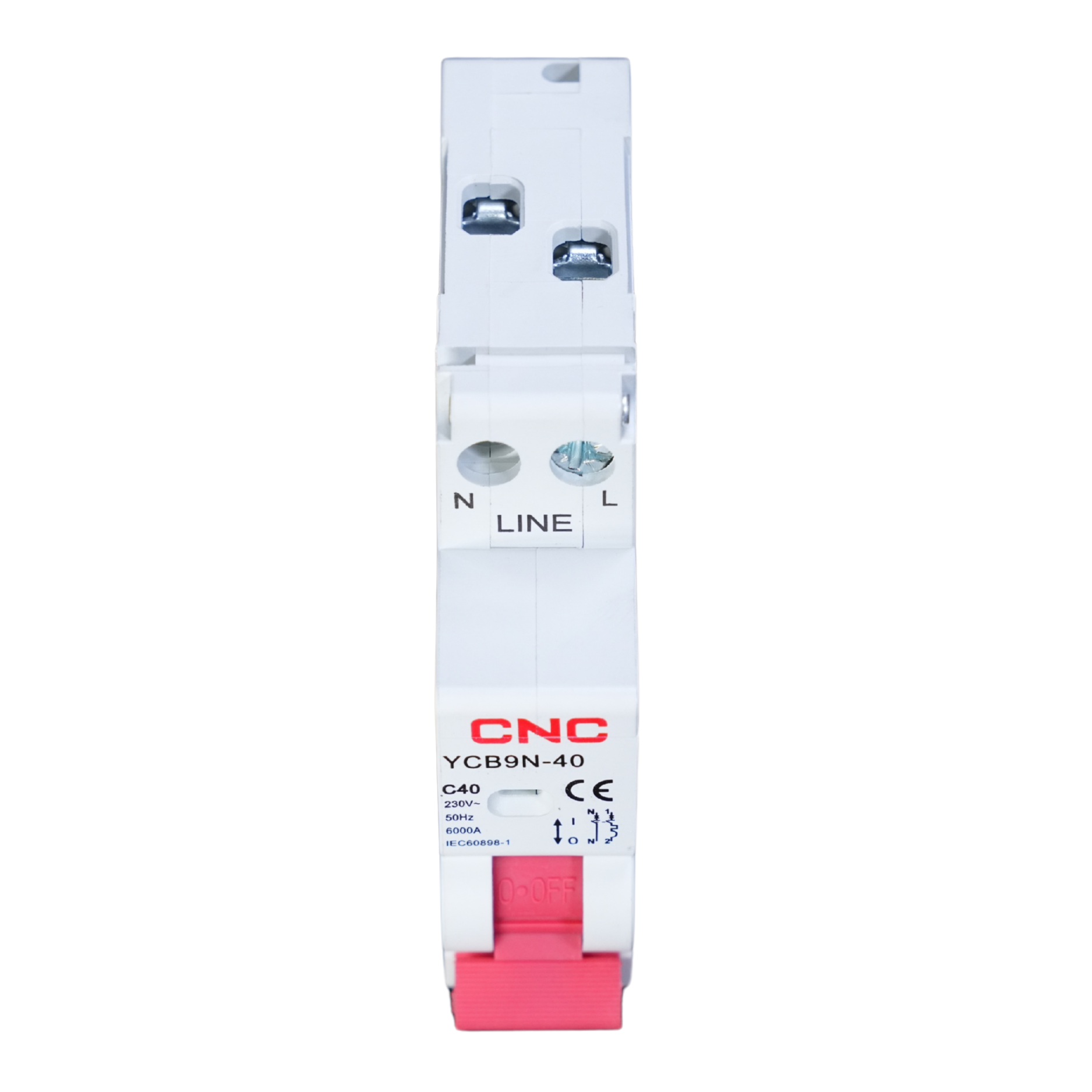

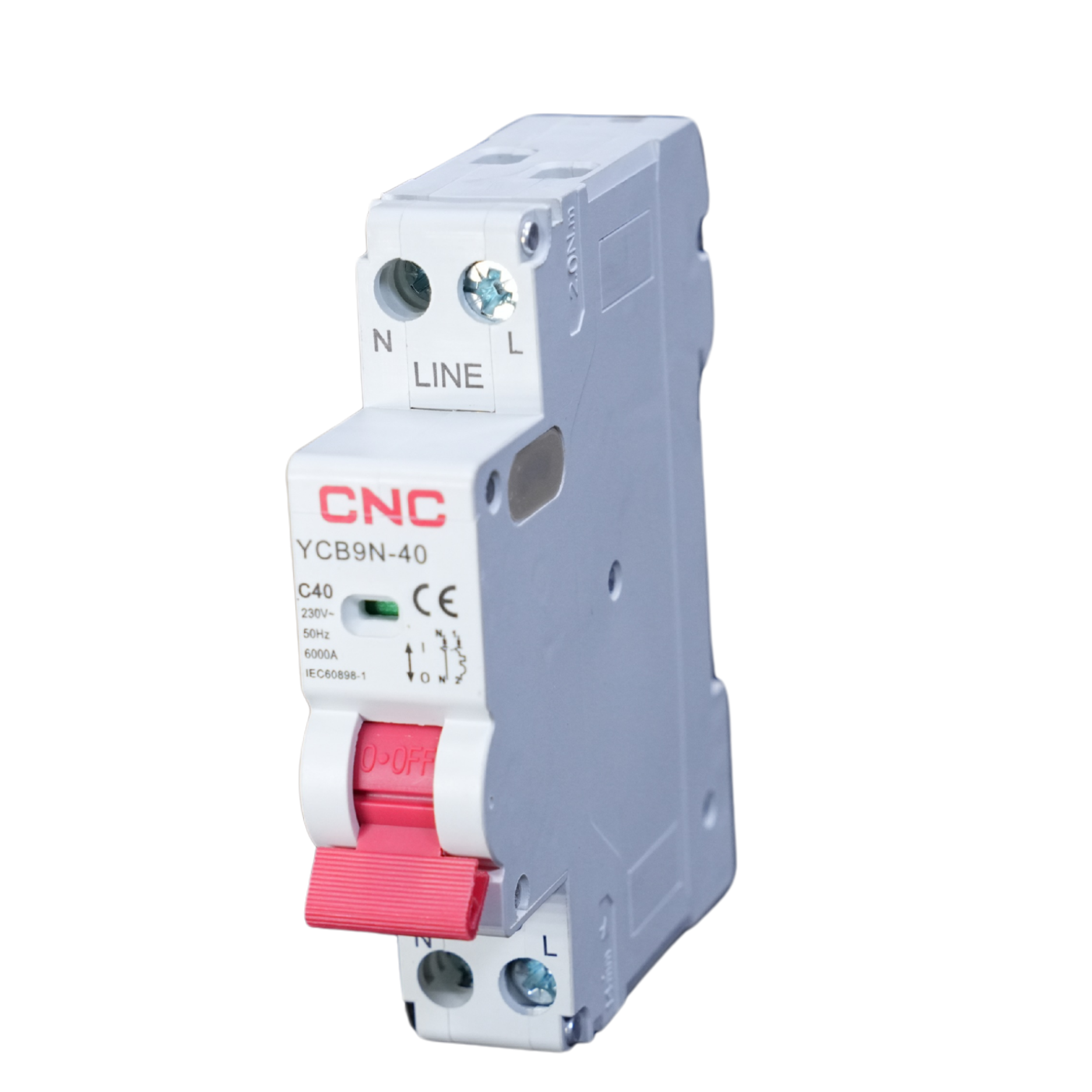

CNC 1P+N MCB AC Cricuit Breaker YCB9N-40

General ●      Provides overload and short Circuit protection for electrical systems. ●      Suitable for residential,...
Vendor: CNC ELECTRIC
SKU: 1P+N-AC-MCB-1
Availability: In Stock
Rs.975.00
Rs.975.00
(-0%)
Size: 18*73*82mm
AMPARE: 10A
10 customers are viewing this product
Why Shop With Us?
  • CNC Electric Pakistan
CNC 1P+N MCB AC Cricuit Breaker YCB9N-40

CNC 1P+N MCB AC Cricuit Breaker YCB9N-40

Rs.975.00

CNC 1P+N MCB AC Cricuit Breaker YCB9N-40

Rs.975.00
Size: 18*73*82mm
AMPARE: 10A

General

      Provides overload and short Circuit protection for electrical systems.

      Suitable for residential, commercial, and industrial applications.

      Conforms to IEC/EN 60898-1 safety standards.

      Easy installation with DIN rail compatibility and flexible connections.

Ac Breaker Key Features

1. Comprehensive Protection
Ensures safety with reliable overload and short circuit protection for electrical systems. Ideal for preventing damage and ensuring smooth operations.

      Protects against overload and short circuit faults.

      Thermal-magnetic release for precise performance.

2. Versatile Applications
Ac Breaker Designed for residential, commercial, and industrial setups, catering to diverse environments and requirements.

      Suitable for energy industries and infrastructure projects.

      Supports B (3-5In) and C (5-10In) tripping curves.

3. High Performance
Built to handle demanding conditions with a high breaking capacity and long operational life.

      Rated breaking capacity of 6000A.

      Electrical life of 8,000 cycles and mechanical life of 20,000 cycles.

4. Durable and Reliable Build
Crafted for durability, withstanding a wide range of temperatures and ensuring consistent operation.

      Operates in temperatures from -5°C to +40°C.

      Insulation voltage of 500V and impulse withstand voltage of 4000V.

Release

lype lest current Tripping time Expected result lype Test current Tripping time Expected resut
B,C 1.13In t≤1h(In≤63A Not tripping B 3In t≤0.1s Not tripping
1.13In t≤2h(In>63A)
C 5In t≤0.1s
B,C 1.45In t<1h(In≤63A) Tripping
1.45In t<2h(In>63A) B 5In t<0.1s Tripping
B,C 2.55In 1s<t<60s(In≤32A) Tripping
C 10In t<0.1s
2.55In 1s<t<120s(In>32A)


1P+N Ac Breaker Specifications

      Rated Current (In): 6A, 10A, 16A, 20A, 25A, 32A, 40A

      Poles: 1P+N

      Rated Voltage (Ue): 230V

      Breaking Capacity: 6000A

      Tripping Characteristics: B, C

      Protection Degree: IP20

      Mounting: DIN rail EN 60715 (35mm)

Overall and Mounting Dimensions (mm)

Iype Standart EC/EN 60898-1
Electrical features Rated current In A 6,10,16,20,25,32,40
Poles P 1P+N
Rated voltage Ue V 230
Insulation voltage Ui V 500
Rated frequency Hz 50/60
Rated breaking capacity A 6000
Rated impulse withstand voltage(1.2/50)Uimp V 4000
Dielectric test voltage at ind.Freq.for 1min kv 2
Pollution degree 2
Thermo-magnetic release characteristic B,C
Mechanical features Electrical life t 8000
Mechanical life t 20000
Protection degree IP20
Reference temperature for setting of thermal element 30
Ambient temperature -5~+40
(with daily average≤35℃)
Storage temperature -25~+70
Terminal connection type Cable/Pin-type busbar
Installation Terminal size top /bottom for cable mm² 16
AWG 5月18日
Terminal size top /bottom for busbar mm² 10
AWG 5月18日
Tightening torque N*m 2
In-Ibs 18
Mounting On DIN rail EN 60715(35mm)by means of fast clip
Connection From top or bottom
