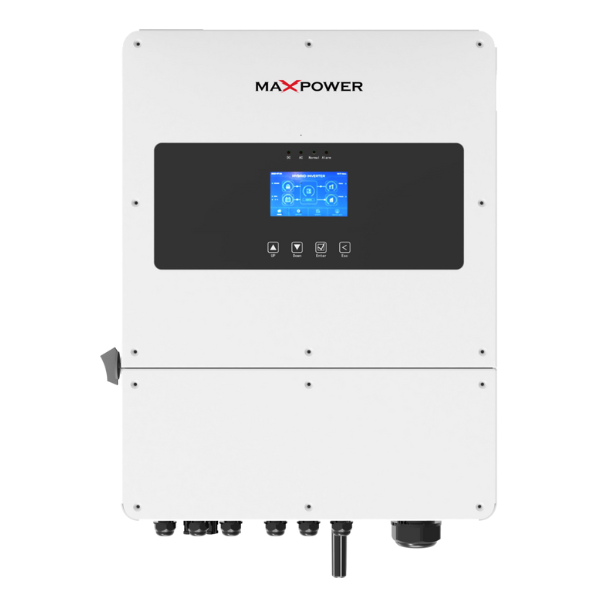

MAXPower Voltas HYB 6K-H4 Single Phase Hybrid Inverter

General:

The Voltas 6K-H4 Single Phase Hybrid Inverter is an innovative solution that maximizes solar energy utilization while providing efficient battery management for residential and commercial applications. This hybrid inverter’s robust design ensures reliable performance and adaptability to various energy needs.

Data Sheet:

MAXPower Voltas HYB 6K-H4 Single Phase Hybrid Inverter

Support:

The Voltas 6K-H4 supports and both lead-acid and Li-Ion batteries; the Voltas 6K-H4 operates within a battery voltage range of 40-60 V. It offers a maximum charge current of 140 A and a discharge current of 140 A and utilizes a 3-stage charging curve for effective battery maintenance. An optional external temperature sensor enhances its performance by ensuring optimal charging conditions.

Specification:

Key Specifications:

• Max. PV Input Power: 9,000 W
• PV Input Voltage: 370 V (range: 125-500 V)
• MPPT Voltage Range: 150-425 V
• No. of MPPT Trackers: 2
• Rated AC Output Power: 6,000 W
• Max. AC Output Power: 7,200 W
• Power Factor: 0.8 leading to 0.8 lagging

Safety:

Safety features include integrated PV ARC fault detection and output over-voltage protection, ensuring reliable operation. With a maximum efficiency of 97.90% and an IP65 rating for protection against dust and water, the Voltas 6K-H4 is ideal for various environments. This inverter combines advanced technology, durability, and exceptional performance to elevate your solar energy system.

Key Specifications:

• Max. PV Input Power: 9,000 W
• PV Input Voltage: 370 V (range: 125-500 V)
• MPPT Voltage Range: 150-425 V
• No. of MPPT Trackers: 2
• Rated AC Output Power: 6,000 W
• Max. AC Output Power: 7,200 W
• Power Factor: 0.8 leading to 0.8 lagging
