Huawei inverter 25 kw On-Grid Solar Inverter

PDF Document

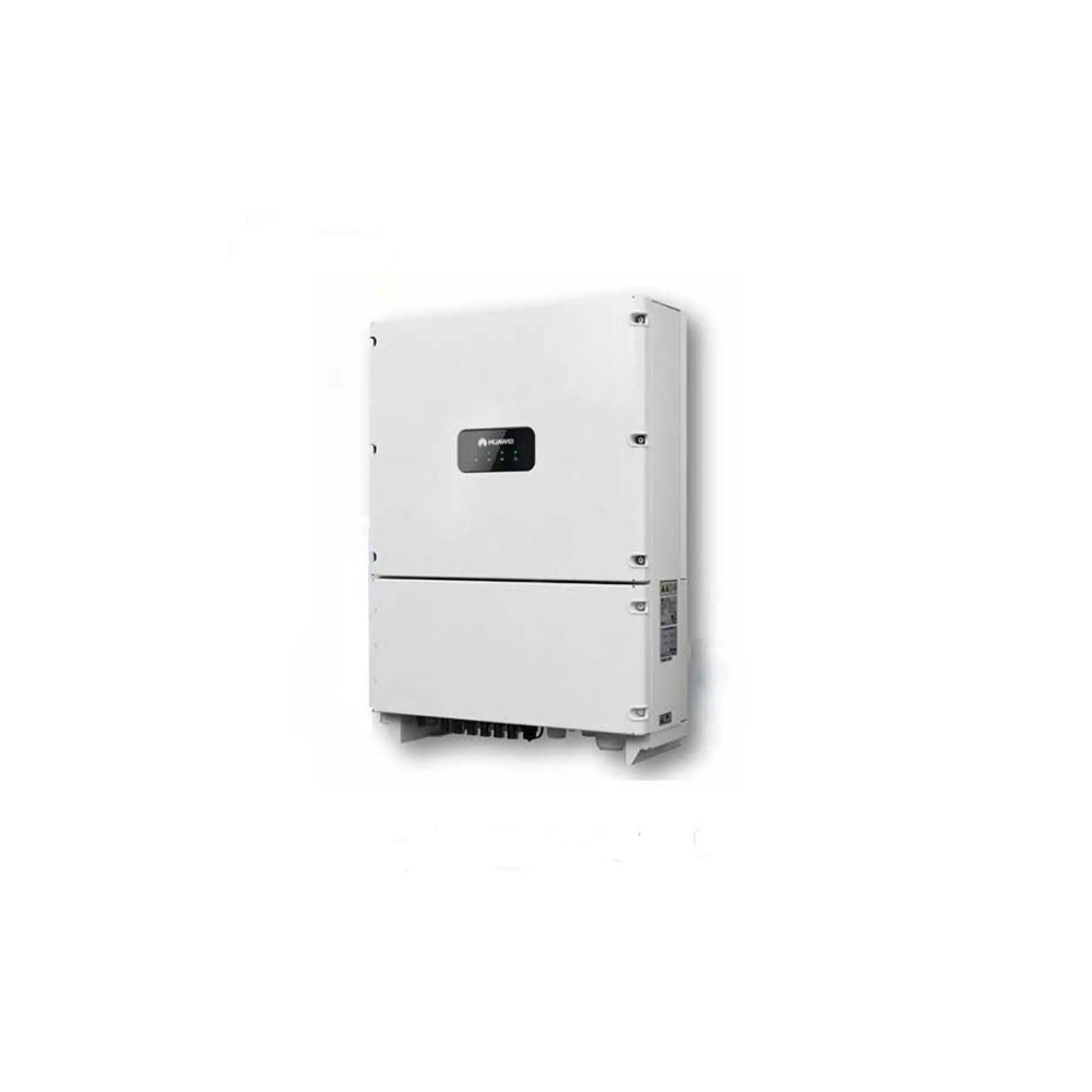

The Huawei SUN2000-25KTL-M5 is a 25 kW three-phase on-grid solar inverter designed for commercial and industrial solar installations. It efficiently converts direct current (DC) from solar panels into alternating current (AC) suitable for grid integration.

Key Features:

• 3-phase inverter with 22,000VA power output

• 2 independent MPP trackers

• Installation via FusionSolarApp

• Efficiency up to 98.65

• Communication via WLAN/Ethernet* and 4G*

• RS485 for Smart Power Sensor and Smartlogger

• AC and DC overvoltage protection

• High Efficiency: Achieves a maximum efficiency of 98.4%, ensuring optimal energy conversion and utilization.

• Multiple MPPTs: Equipped with multiple Maximum Power Point Trackers (MPPTs) to optimize power output from solar panels under varying conditions.

• Enhanced Safety: Features AI-powered Arc Fault Circuit Interruption (AFCI) technology to detect and mitigate electrical arcs, reducing potential fire hazards.

• Robust Design: With an IP66 rating, the inverter is dust-tight and protected against powerful water jets, making it suitable for outdoor installations in various environmental conditions.

• Flexible Communication: Supports WLAN, Fast Ethernet, and 4G communications, allowing seamless monitoring and management through the FusionSolar app or web portal.

Technical Specifications:

• DC Input:

  • Maximum Voltage: 1,080 V
  • MPPT Voltage Range: 470–850 V
  • Number of Inputs: 4
  • Number of MPPT Trackers: 2

• AC Output:

  • Rated AC Power: 25,000 W
  • Maximum Apparent Power: 27,500 VA
  • Rated Output Voltage: 220/380 V, 230/400 V, 240/415 V; 3W/N + PE
  • Maximum AC Current: 40.5 A
  • Frequency: 50/60 Hz
  • Power Factor: 0.8 (adjustable)
  • Total Harmonic Distortion (THD): <3%

• General Specifications:

  • Operating Temperature Range: -25°C to +60°C
  • Humidity: 0–100%
  • Altitude: Up to 4,000 m
  • Dimensions (W x H x D): 546 mm x 460 mm x 228 mm
  • Weight: 21 kg
  • Communication Interfaces: RS485, WLAN

• Protection Features:

  • Anti-Islanding Protection
  • Overvoltage Protection
  • Overcurrent Protection
  • Residual Current Device (RCD)
  • Reverse Polarity Protection
  • Isolation Monitoring

Applications:

The SUN2000-25KTL-M5 is ideal for medium to large commercial and industrial solar installations, offering a balance of efficiency, safety, and durability.
