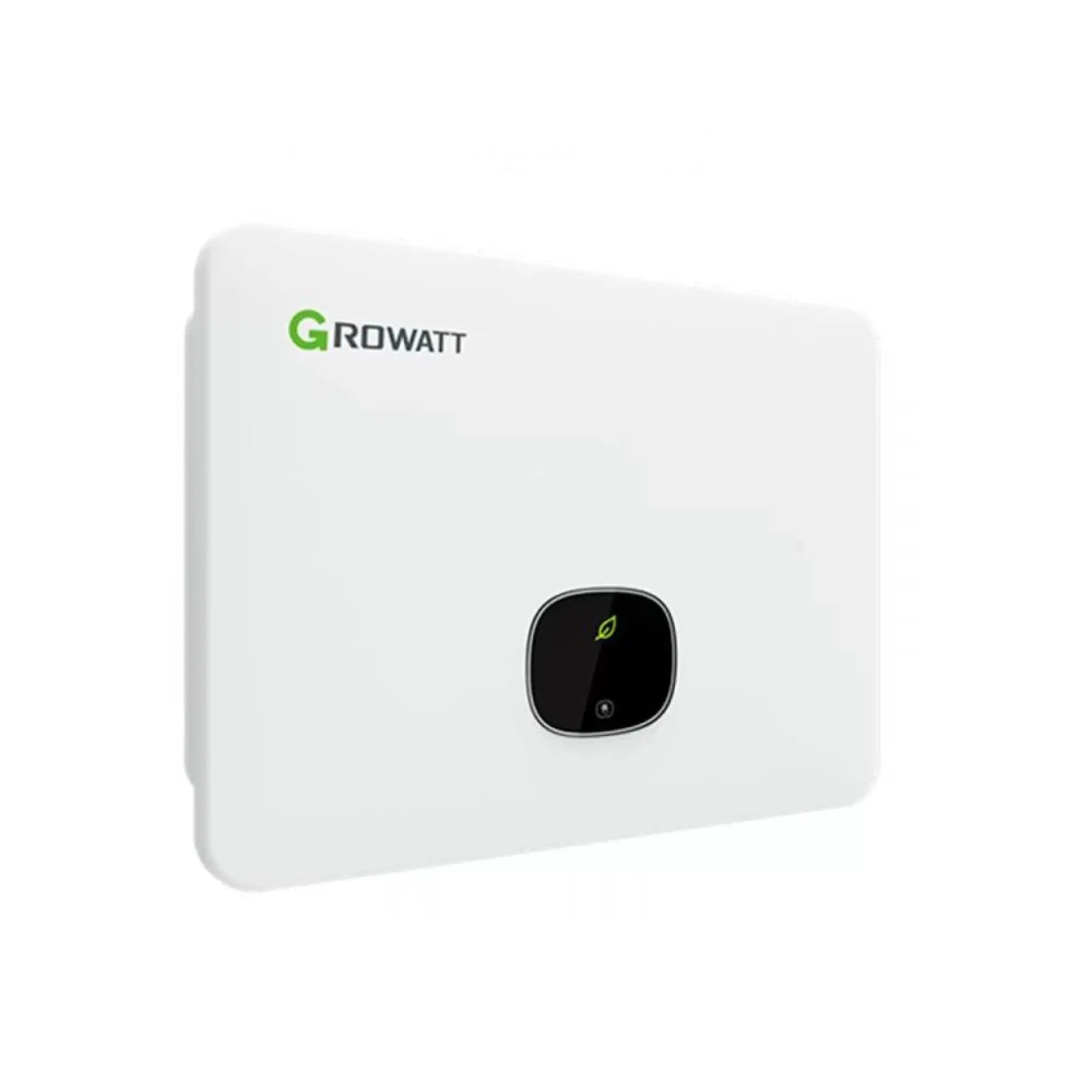

Growatt 25kW On-Grid

PDF Document

OVERVIEW:

The 25000TLS-3 is an advanced Grid-Tied Solar Inverter with world class capabilities.

• 25kW Grid Tied Inverter

• Up to 31.25kW DC Power

• 200V – 1000V MPPT Input Range

• 37.5A Max PV Input per Tracker | 40.3A AC Output

• Dual Independent MPP Trackers

• 98.7% Efficiency

• MC4 Compatible Connector

• Integrated DC Switch

• Multiple Protection and Fault Detection Functions

• IP65 rated

• LCD Display

• Easy cable management with the included Matrix Cabling System.

• Transformerless – Smart Cooling – Silent Operation

• Three Phase

• Grid Feedback Management

• WiFi monitor included, easy to control via web and Android app.

The Growatt 25kW on-grid inverter is a high-efficiency, three-phase device designed for commercial and industrial solar energy systems. It converts direct current (DC) from solar panels into alternating current (AC) compatible with the utility grid, facilitating effective energy utilization.

Key Features:

• High Efficiency: Achieves a maximum efficiency of up to 98.7%, ensuring optimal energy conversion with minimal losses.

• Dual MPPTs: Equipped with dual Maximum Power Point Trackers (MPPTs), it efficiently manages power from multiple solar panel arrays, maximizing energy harvest even under varying conditions.

• Robust Design: The inverter features a compact and lightweight design, with dimensions of 470 mm (W) x 754 mm (H) x 270 mm (D) and a weight of 48 kg, facilitating easy installation. It operates within a wide temperature range and has an IP65 protection rating, making it suitable for various environmental conditions.

• Advanced Communication: Supports multiple communication interfaces, including USB, RS485, WiFi, GPRS, and LAN, allowing for real-time monitoring and integration with smart energy management systems.

• Comprehensive Protection: Includes multiple safety features such as DC reverse polarity protection, AC/DC surge protection devices (SPDs), ground fault monitoring, and anti-islanding protection, ensuring safe and reliable operation within the grid.

Specifications:

• Model: 25000TL3-S

• Rated AC Output Power: 25,000 W

• Maximum Recommended PV Power: 31,250 W

• Maximum DC Voltage: 1,000 V

• Nominal Voltage: 580 V

• MPPT Voltage Range: 200 V to 1,000 V

• Maximum Input Current per MPPT: 32 A

• Number of MPP Trackers / Strings per MPP Tracker: 2 / 2

• Protection Rating: IP65, suitable for outdoor installations

• Certifications: Complies with international standards, ensuring safety and reliability.

The Growatt 25kW on-grid inverter is an excellent choice for enhancing solar energy systems, offering high efficiency, advanced features, and robust protection mechanisms that support effective energy management and seamless integration with modern monitoring solutions.
