Growatt 10kW On-Grid

PDF Document

OVERVIEW:

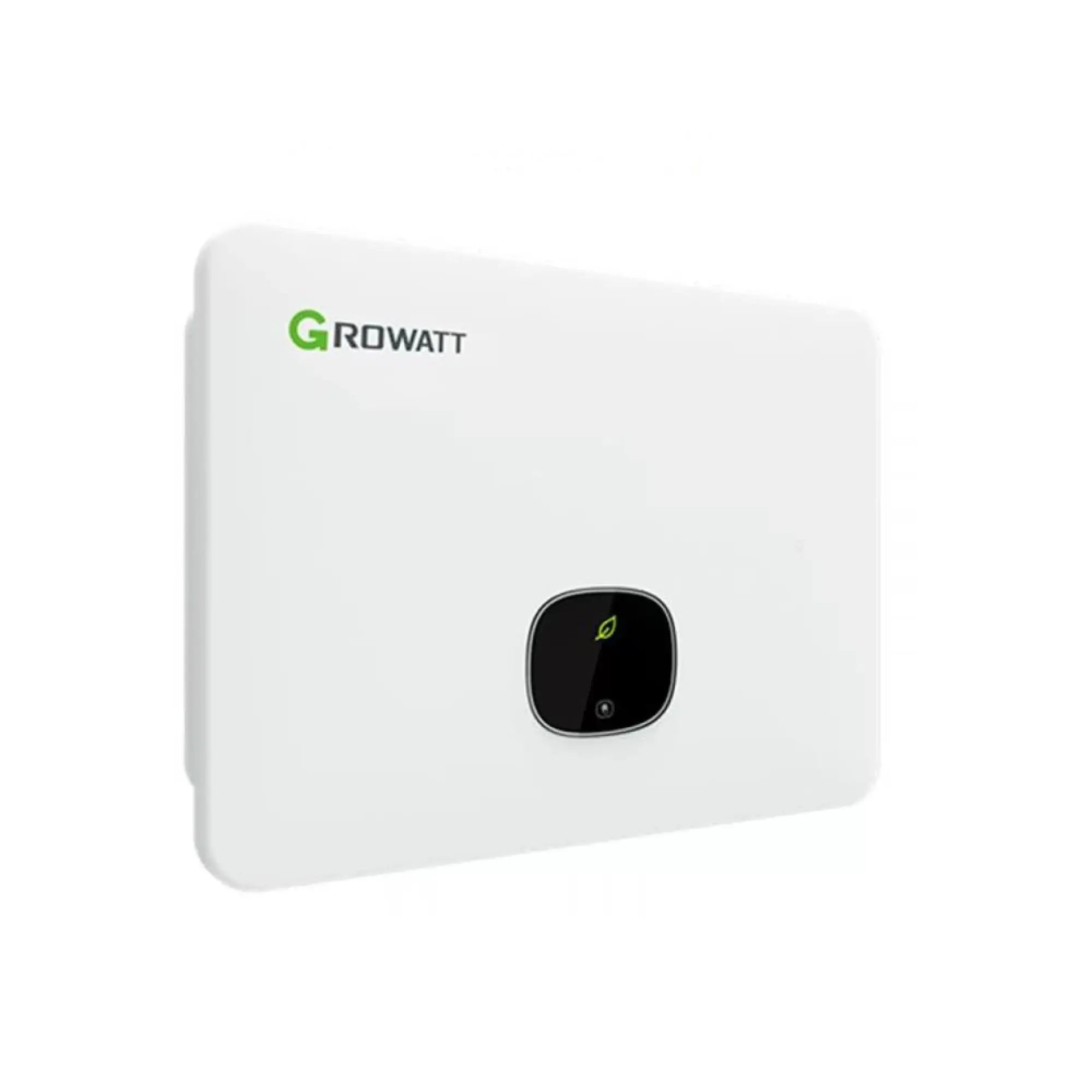

The Growatt MOD 10KTL3-X inverter is a string inverter known for its solid construction and reliability, typical of Growatt. This three-phase inverter is suitable for both residential and commercial installations, and with a maximum DC input capacity of 15,000 watts, this Growatt inverter is efficient for a full string of solar panels.

Features:

• High Efficiency: Boasts a peak efficiency of up to 98.6%, maximizing the amount of solar energy converted into usable electricity and minimizing losses.
• Wide MPPT Range: Equipped with a broad Maximum Power Point Tracking (MPPT) range, the MOD10KTL3-X optimizes energy production across varying sunlight conditions and panel configurations.
• Dual MPPT Design: Features dual MPPTs, allowing for flexible array configurations and improved performance in partial shading or different solar exposure scenarios.
• Advanced Cooling: Utilizes an advanced cooling system that ensures reliable operation and prolongs the lifespan of the inverter, even under demanding conditions.
• Smart Monitoring: Integrated with Growatt’s monitoring platform, allowing users to track system performance and manage energy production remotely via smartphone or web applications.
• Durability and Reliability: Designed with robust protection features against overvoltage, overheating, and short circuits, ensuring stable operation in various environmental conditions.
• User-Friendly Interface: Offers a clear and intuitive display for easy system status monitoring and configuration.

Specifications:

• Rated Power: 10 kW
• Input Voltage Range: Suitable for a wide range of solar panel voltages.
• Dimensions: Compact and space-efficient design for easy installation.
• Weight: Lightweight construction facilitates easier handling and setup.
• Compliance: Meets international standards for safety and performance.

The Growatt 10kW MOD10KTL3-X is an excellent choice for those seeking a reliable and efficient solar inverter to maximize their solar energy system’s performance, offering advanced features and high durability to meet various energy needs.

The Growatt 10kW on-grid inverter is a high-performance device designed to convert the direct current (DC) generated by solar panels into alternating current (AC) suitable for residential and small industrial applications. This inverter is known for its efficiency, reliability, and advanced features that enhance energy management in solar power systems.

Key Features:

• High Efficiency: The inverter boasts a maximum efficiency of up to 98.5%, ensuring optimal energy conversion and minimal losses.

  Signature Solar



• Multiple MPPTs: Equipped with multiple Maximum Power Point Trackers (MPPTs), it effectively manages power from different strings of solar panels, maximizing energy harvest even under varying conditions.

  Signature Solar



• Robust Design: Designed to operate within a wide temperature range (-13°F to +140°F) and featuring natural convection cooling, the inverter is built for durability and consistent performance.

  Signature Solar



• Advanced Communication: It includes built-in 4G/Wi-Fi communication capabilities, allowing for real-time monitoring and integration with smart applications on iOS, Android, and Windows platforms.

  Signature Solar



• Comprehensive Protection: The inverter is equipped with multiple safety features, including AC surge protection, short circuit protection, ground fault monitoring, and anti-islanding protection, ensuring safe operation within the grid.

  Signature Solar



Specifications:

• Rated Output Power: 10,000W

• Maximum PV Input: 20,000W

• Maximum MPPT Operating Voltage: 550V DC

• Maximum Output Current: 42A

• Protection Rating: NEMA4X (IP65), suitable for outdoor installations

• Certifications: UL Certified (1741)

The Growatt 10kW on-grid inverter is an excellent choice for those seeking to enhance their solar energy systems with a reliable and efficient inverter, offering advanced features that support effective energy management and integration with modern monitoring solutions.
