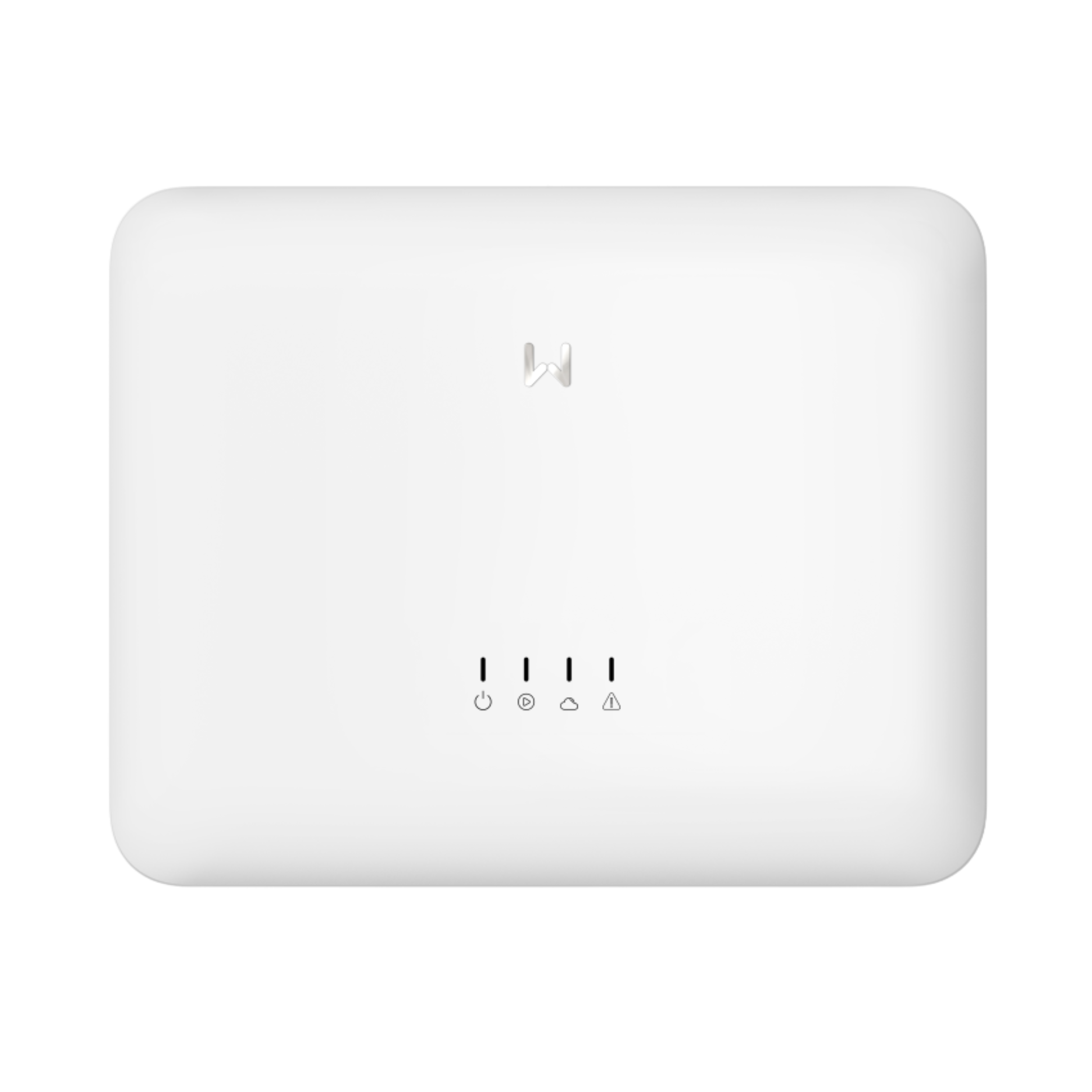

GoodWe 10KW On - Grid G3 Solar MPPT Inverter

10-Years Replacement Warranty

Click on the Link for Data sheet

PDF Document

The GoodWe G3 SDT Series MPPT Inverter is an advanced and reliable inverter designed to optimize solar energy generation for residential and small commercial applications. Equipped with cutting-edge technology and multiple MPPT (Maximum Power Point Tracking) features, this inverter ensures superior performance and energy efficiency.

Key Features

• High Energy Conversion Efficiency: Achieves up to 98.3% efficiency for maximum solar output.
• Dual MPPT Design: Allows flexibility in solar panel placement and enhances energy harvesting.
• Compact and Modern Design: Sleek white finish that complements modern home and office aesthetics.
• Smart Monitoring: Built-in Wi-Fi for real-time monitoring via the GoodWe app.
• Enhanced Safety Features: Includes protection against short circuits, overload, and overheating.
• Fanless Design: Quiet operation, suitable for noise-sensitive environments.

Technical Specifications

• Power Output: Varies between 5kW to 8kW models
• MPPT Voltage Range: 80V – 600V
• Efficiency: 98.3%
• Communication Interfaces: Wi-Fi, RS485, USB
• Operating Temperature: -25°C to 60°C
• Dimensions: 354mm x 433mm x 147mm
• Weight: 16kg

Applications

• Residential solar power systems
• Small-scale commercial solar installations
• On-grid systems requiring high reliability and efficiency
