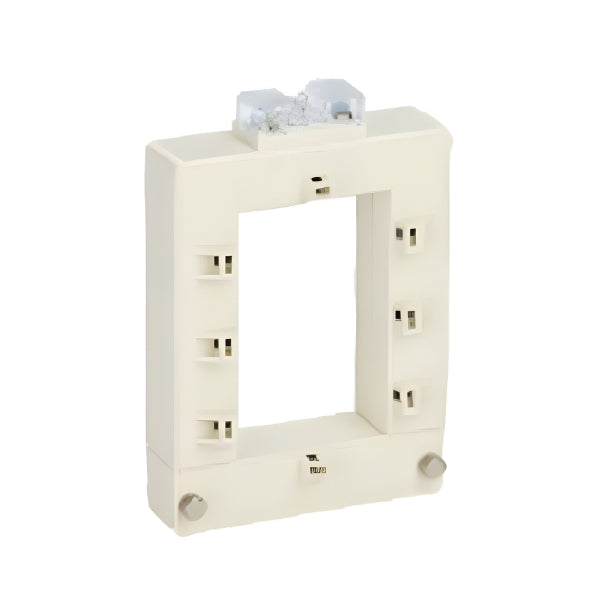

Fico Hi-Tech Clamp Type SC-LC 1015 Current Transformer (CT) – High Accuracy Series | 110×150mm Window | 1000A to 6000A

Fico Hi-Tech Clamp Type Current Transformer (CT) – SC-LC 1015 Model Series is specially designed for accurate current measurement, easy installation, and long-term industrial performance.
This model is ideal for energy meters, power monitoring systems, distribution panels, and industrial automation setups where non-intrusive installation is required.

Thanks to its clam-type split core design, installation becomes fast and safe without disconnecting the busbar or cable, making it a preferred choice for high-current industrial applications.

 TECHNICAL INSIGHT

Based on the provided image, the SC-LC 1015 Clamp Type CT features:

• Inner Window Size: 110mm × 150mm
• High current handling capacity from 1000A to 6000A
• Dual accuracy classes: Class 0.5 & Class 1
• Single P-Turn (1) for consistent output
• Designed for busbar mounting up to 60×20mm
• Optimized for precise metering and protection systems

This configuration makes it highly suitable for heavy electrical loads and commercial power distribution systems.

 TECHNICAL SPECIFICATIONS

Type: SC-LC 1015 (Inner Dia 110mm × 150mm)

INNER WINDOW SIZE – 110×150mm

 KEY FEATURES & BENEFITS

 Clamp Type Split Core Design – No need to disconnect cables
 High Accuracy Performance – Available in Class 0.5 & Class 1
 Wide Current Range – 1000A to 6000A
 Large Window Size – 110×150mm for heavy busbars
 Robust Construction – Long service life in industrial environments
 Low Power Loss – Efficient magnetic core design
 Easy Installation & Maintenance
 Compatible with Energy Meters & Protection Relays

 APPLICATION AREAS

The Fico Hi-Tech Clamp Type CT is widely used in:

• Industrial Power Distribution Panels
• Energy Monitoring & Billing Systems
• Switchgear & Control Panels
• Power Factor Correction Panels
• Substations & Transformer Rooms
• Commercial & Manufacturing Units

 WHY CHOOSE FICO HI-TECH CLAMP TYPE CT?

Fico Hi-Tech is known for precision engineering and reliable electrical measuring solutions.
The SC-LC 1015 series is engineered to deliver stable output, minimal error, and superior performance even under continuous high-current operations.

Its compact clam-type mechanism saves installation time and ensures maximum safety for technicians.

Frequently Asked Questions – Fico Hi-Tech Clamp Type CT

 What is a Clamp Type Current Transformer?

A clamp type CT is a split-core transformer that allows current measurement without disconnecting existing cables or busbars.

 What is the window size of SC-LC 1015?

The inner window size is 110mm × 150mm, suitable for large busbars up to 60×20mm.

 Which accuracy classes are available?

This model is available in Class 0.5 (high accuracy metering) and Class 1 (general metering).

 What current ratings are supported?

It supports current ratios from 1000/5A up to 6000/5A.

 Where can this CT be used?

It is ideal for energy meters, industrial panels, substations, and power monitoring systems.
