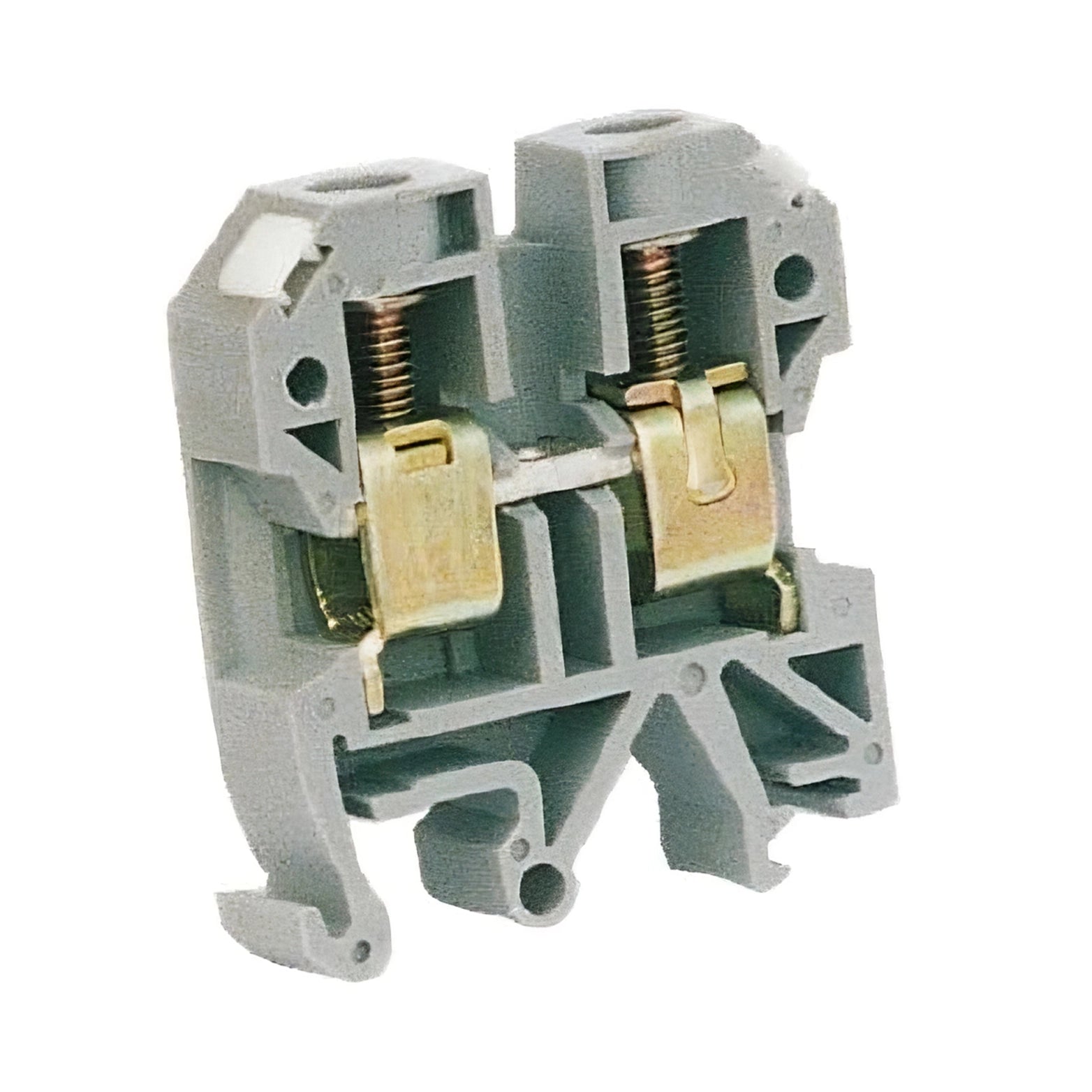

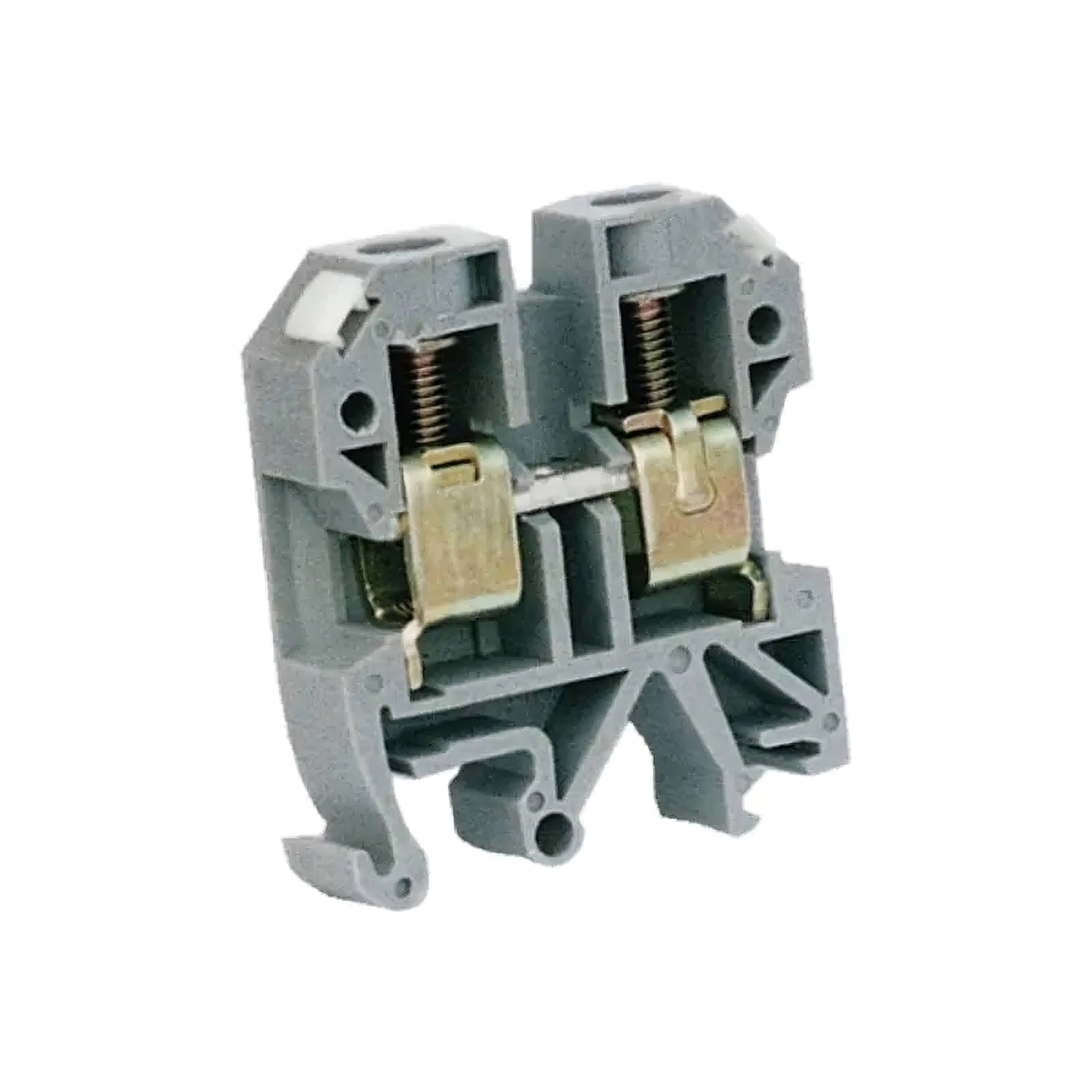

CNC Terminal Connector Baffle Series JXB/JXB

The CNC JXB/JXB Baffle Series Terminal Connector is an electrical connector designed to join wires together in a safe and organized manner.  The "baffle" design likely refers to an internal structure that helps to isolate and secure the connections.  These connectors are used in various electrical applications to provide a reliable and insulated connection point, preventing short circuits and ensuring proper electrical flow.

Features  of CNC JXB/JXB Baffle Series Terminal Connector:

• Available in multiple sizes: JXB-2.5, 4, 6, 10, 16, 35, 70
• Matching baffle plates (AP series) for insulation and separation
• Compact and modular design for space-saving installation
• Easy DIN rail mounting
• Flame-retardant and durable housing
• High-conductivity copper alloy terminals
• Color-coded for clear wiring identification
• Vibration-resistant connection
• Easy insertion and removal of wires
• Suitable for both solid and stranded wires

Specifications of CNC JXB/JXB Baffle Series Terminal Connector:

• Models: JXB-2.5, JXB-4, JXB-6 , JXB-10, JXB-16, JXB-35, JXB-70, JXB Baffle AP-2.5, JXB Baffle AP-4, JXB Baffle AP-6, JXB Baffle AP-10, JXB Baffle AP-16, JXB Baffle AP-35, JXB Baffle AP-70
• Current Capacity: Varies from 24A to 192A (based on model)
• Voltage Rating: Up to 800V
• Wire Size Range: 2.5mm² to 70mm²
• Mounting: DIN rail (35mm standard)
• Material: Flame-retardant polyamide (PA66)
• Terminal Material: Tin-plated copper alloy
• Operating Temperature: -40°C to +105°C

Uses:

• Electrical distribution panels
• Industrial automation wiring
• Machinery control cabinets
• Switchgear and switchboards
• Power supply and circuit wiring
• Building and infrastructure electrical systems

Benefits:

• Ensures safe and reliable wire connections
• Saves space in control panels
• Reduces installation time with snap-on DIN mounting
• Prevents short circuits with baffle insulation
• Long-lasting, corrosion-resistant contacts
• Compatible with a wide range of wire sizes and applications
