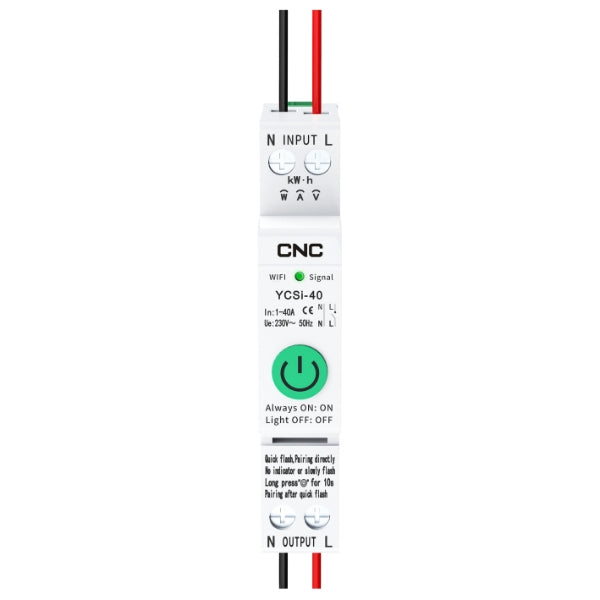

CNC Smart Wifi Breaker Single Pole 40A YCSI
General: The intelligent remote control switch is suitable for users or loads with AC50Hz/60Hz, rated...
- Rs.7,000.00
Rs.9,300.00- Rs.7,000.00
- (-25%)
- Unit price
- per
Save Rs.2,300.00
10 customers are viewing this product
Couldn't load pickup availability
General:
The intelligent remote control switch is suitable for users or loads with AC50Hz/60Hz, rated operating voltage of 230V, and rated working current of 63A and below. It has a beautiful appearance, excellent performance, and reliable operation.lt can quickly switch on/off and is installed with modular rail. lt is mainly used inhomes, shopping malls, office buildings, hotels,schools, hospitals, villas, and other places.
Features:
- The product can automatically close the circuit when power is supplied during normal operation on the line, and can also be set not to close the circuit when power is supplied.
- Operate the product remotely via a mobile phone app or computer to control opening/closing.
- Provides real-time feedback on the product’s opening/closing status.
- Allows for timing and delay of opening/closing operations.
- Multiple users can share control of the device.
- Automatically disconnects the protector within 0.1s if the leakage current exceeds the set value or if there is a personal electric shock (with leakage protection).
- Displays voltage, current, power, and electricity values.
|
Item |
Data |
|
Rated working voltage |
AC230V |
|
Rated current In |
1-40A/1-63A |
|
Life |
Electrical life 100,000 on/off times |
|
Local power consumption |
<3W |
|
Working voltage range |
AC110V-280V |
|
Maximum rated output current |
40A/63A |
|
Wiring |
Using clamp terminals, the cross-sectional area of the wire can reach 16mm |
|
Installation |
Installed on a standard TH35 rail |
|
RS485 communication |
Baud rate: 9600; communication address range: 1-247 |
Working Environment:
|
Item |
Data |
|
Ambient air temperature |
--5 °C ~ +40°C, the average value within 24 hours does not exceed +35°C |
|
Limiting service temperature |
-25°C ~ +70°C |
|
Altitude |
The altitude of the installation site does not exceed 2000 meters |
|
Humidity |
a. When the ambient air temperature is +40°C, the relative humidity of the air should not exceed 50%, and there can be a higher relative humidity at a lower temperature. |
|
b. When the monthly average minimum temperature of the wettest month is 25°C, the monthly average relative humidity is 90%. |
|
|
c. Condensation on the product surface due to temperature changes has been taken into account. |
|
|
Pollution degree |
Level 2 |
|
Installation Category |
Class II and III |
