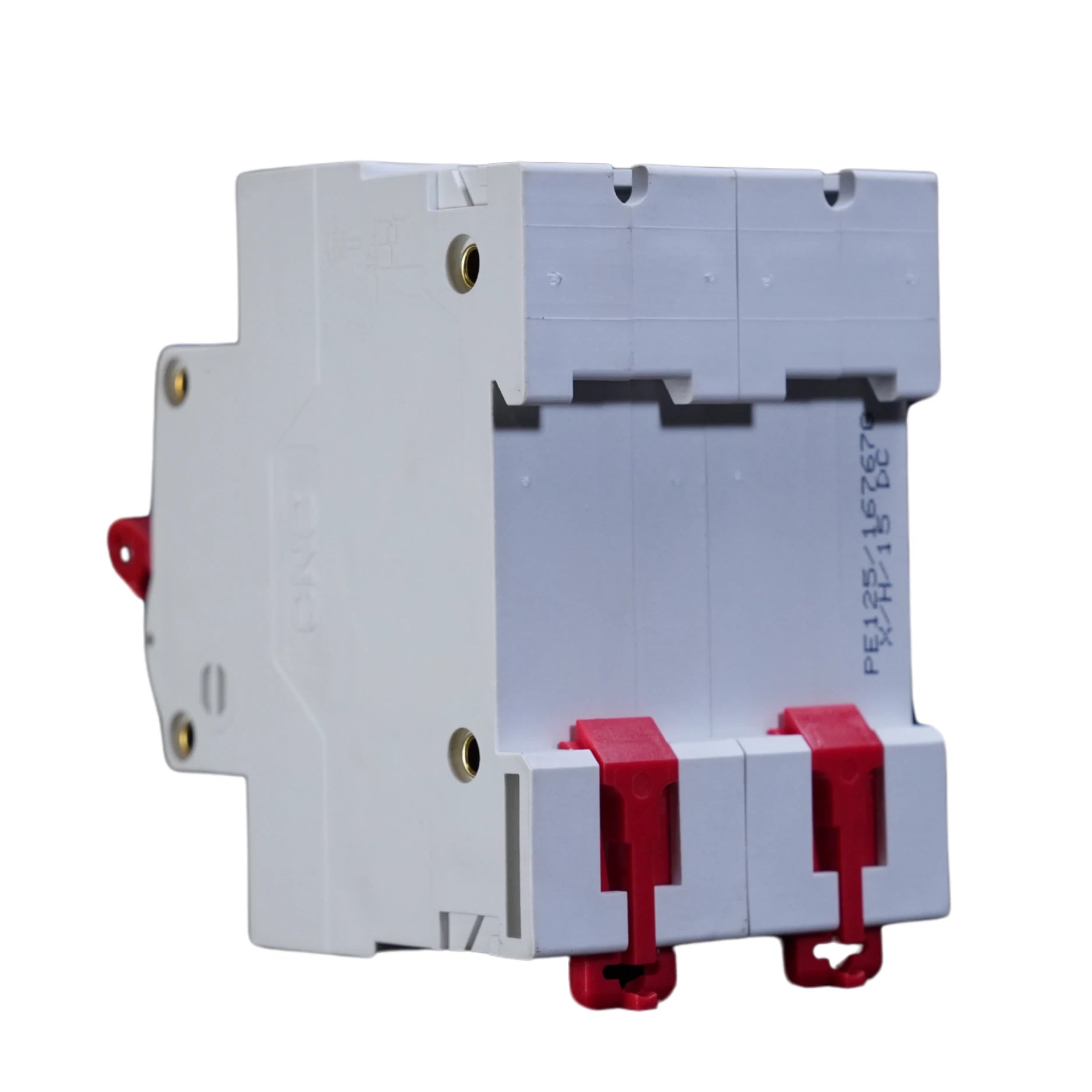

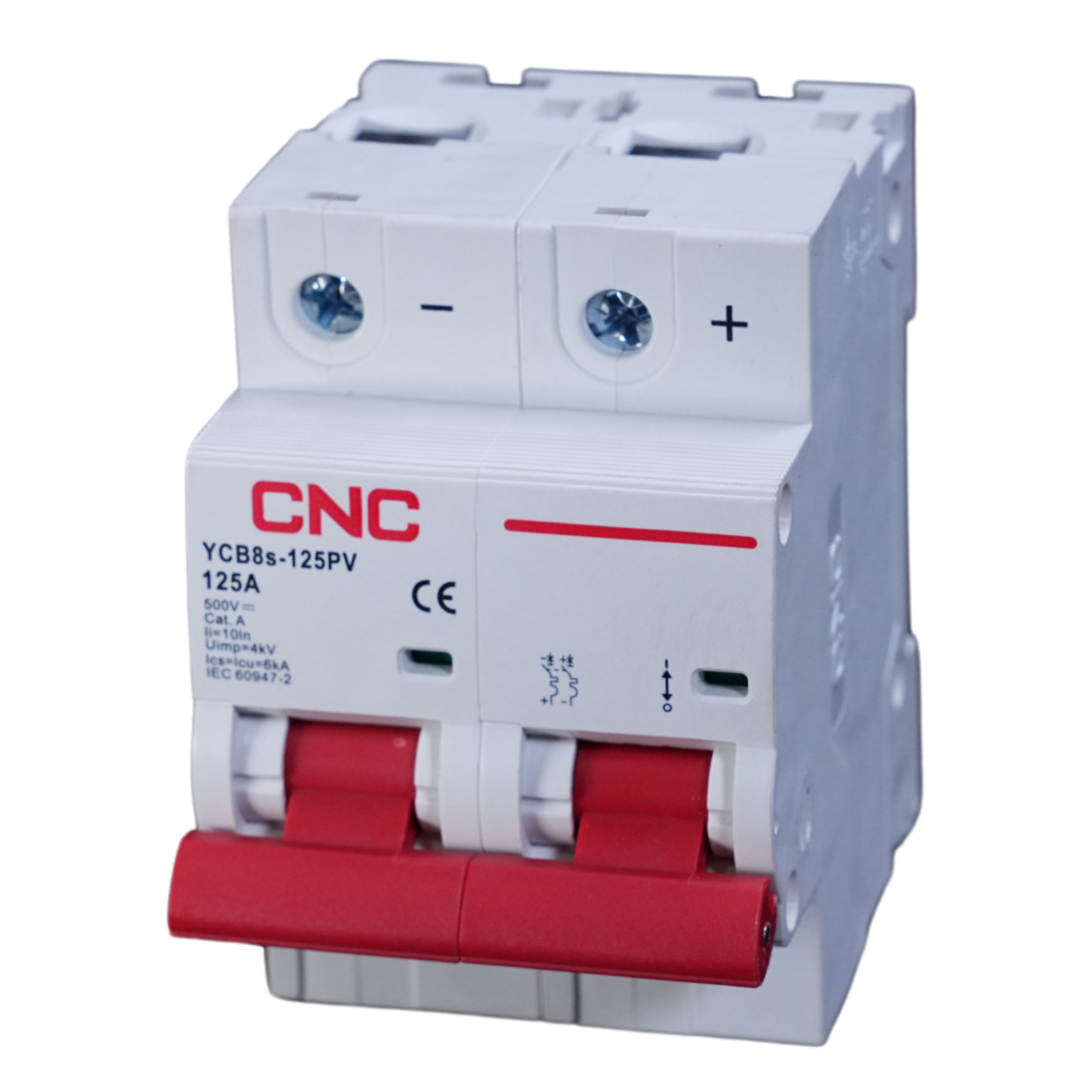

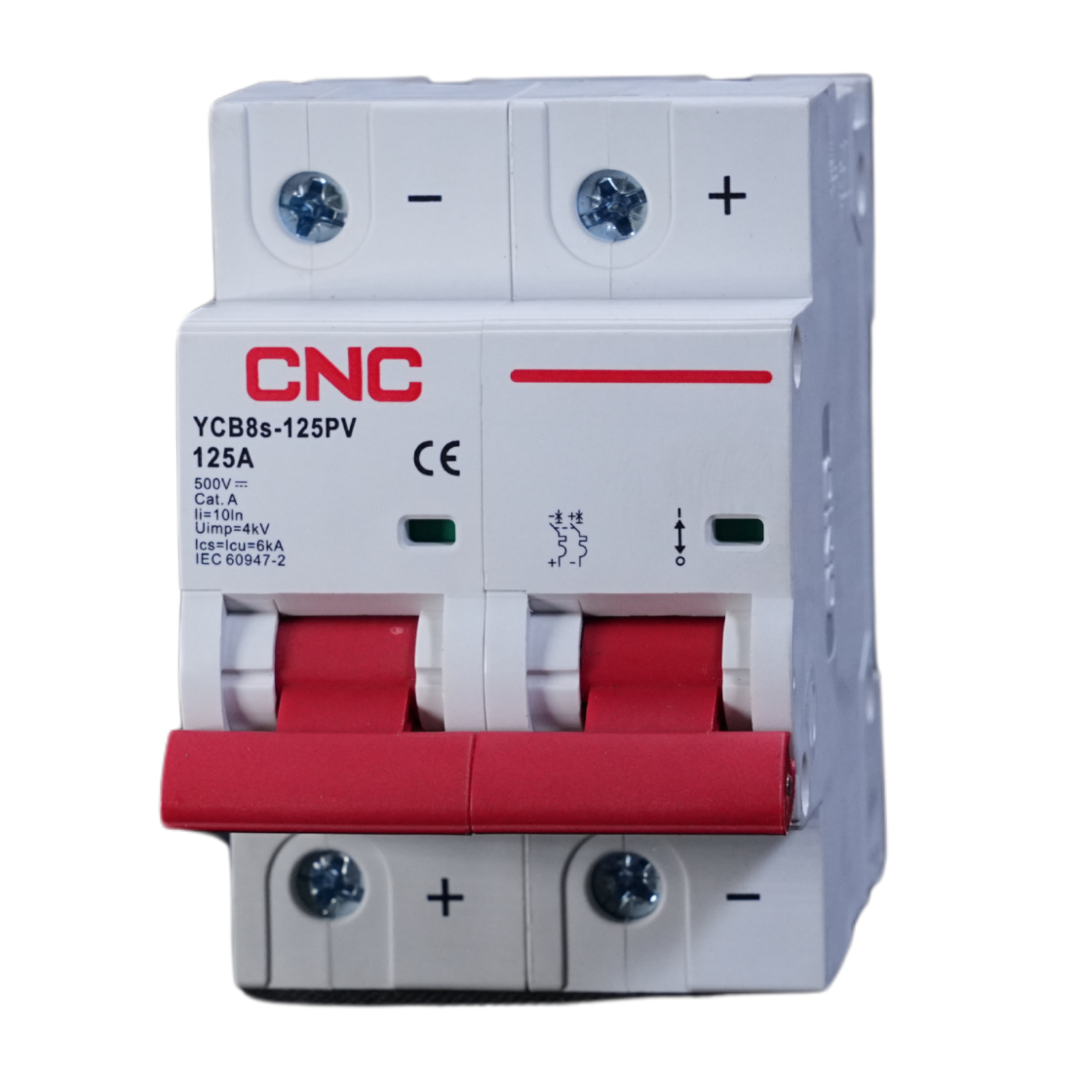

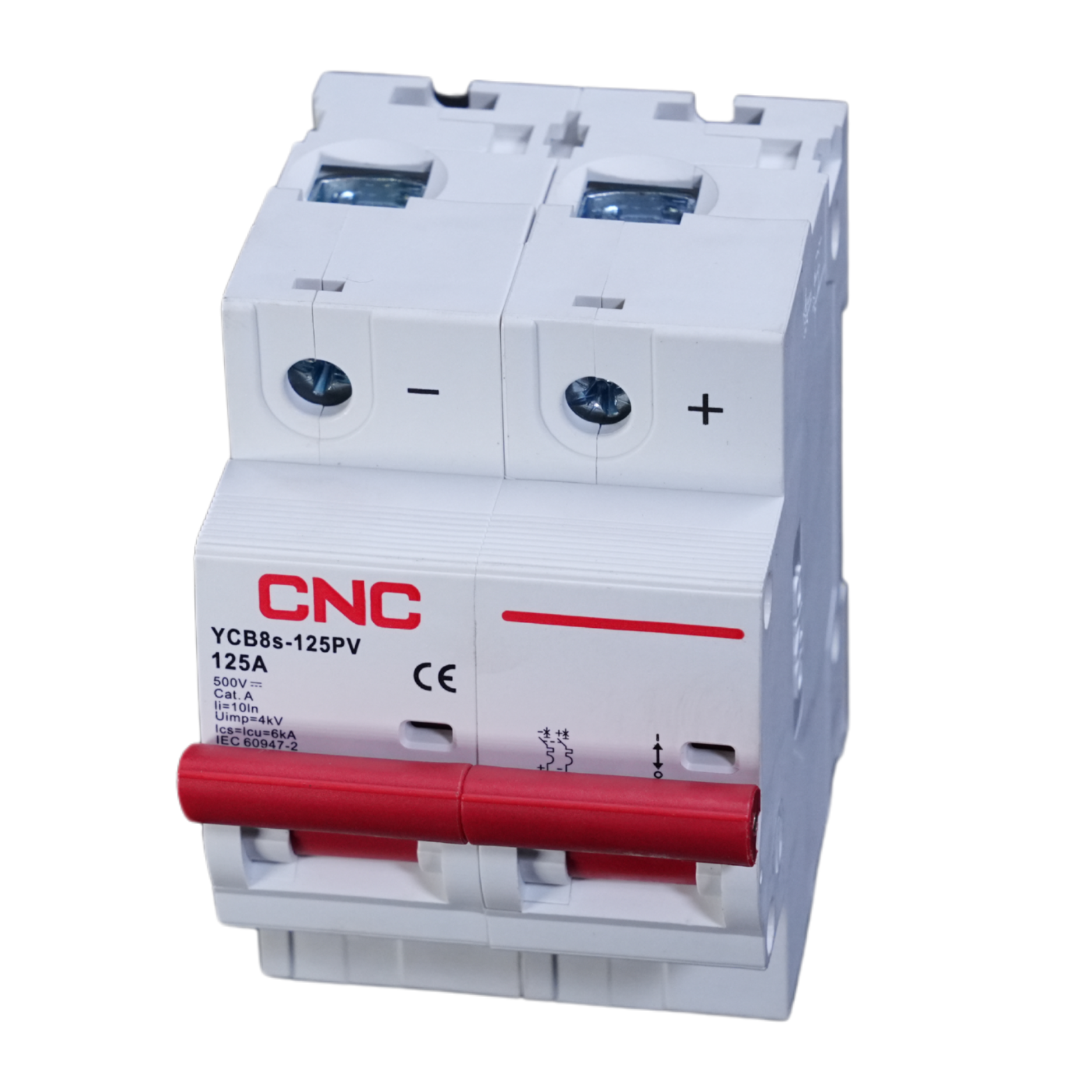

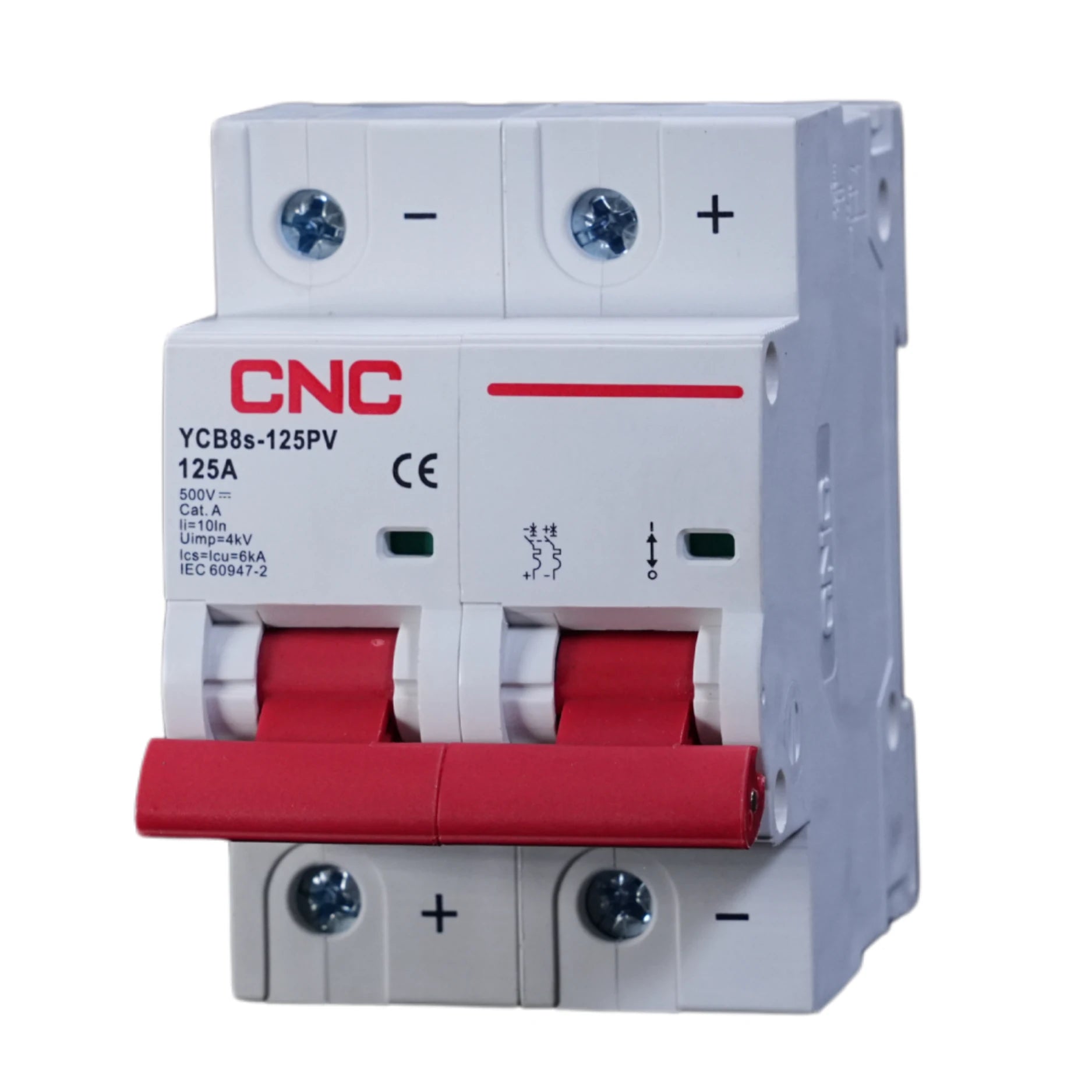

CNC DC 2P Circuit Battery Breakers 500V Breaking Capacity 125A YCB1-125

General:

The rated operating voltage of YCB8-125PV series DC miniature circuit breakers can reach DC1000V, and the rated operating current can reach 125A, which is used for isolation, overload, and short circuit protection. It is widely used in photovoltaic, industrial, civil, communication, and other systems, and can also be used in DC systems to ensure the reliable operation of DC systems. Standard: IEC/EN 60947-2

Features

Modular design, small size

Standard Din rail installation, convenient installation

Overload, short circuit, isolation protection function, comprehensive protection

Current up to 125A, 4 options

The breaking capacity reaches 6KA, with a strong protection capacity

Complete accessories and strong expansibility

Multiple wiring methods to meet various wiring needs of customers

The electrical life reaches 10000 times, which is suitable for the 25-year life cycle of photovoltaics.

DC Breaker Temperature Correction Factor

When selecting DC MCB( DC Maniature Circuit Breakers) for solar systems and other electrical installations, it is vital to consider the ambient temperature correction factor to ensure optimal performance and safety.

With corrected values catered to current ratings from 63A to 125A, our DC Breakers are made to run consistently across a large temperature range.

The rated current capacity changes with the increasing ambient temperature to minimize tripping failures or overheating. At 60°C, for instance, a 63A breaker will transport just 53.4A whereas a 125A breaker will carry 105.4A.

In high-temperature settings including solar PV installations, battery energy storage systems, and industrial control panels, this temperature derating guarantees long-term protection and efficiency.

Use the given adjustment chart always to match your breaker with actual running conditions. Our breakers are a dependable solution for DC circuit protection since they follow IEC/EN criteria.
