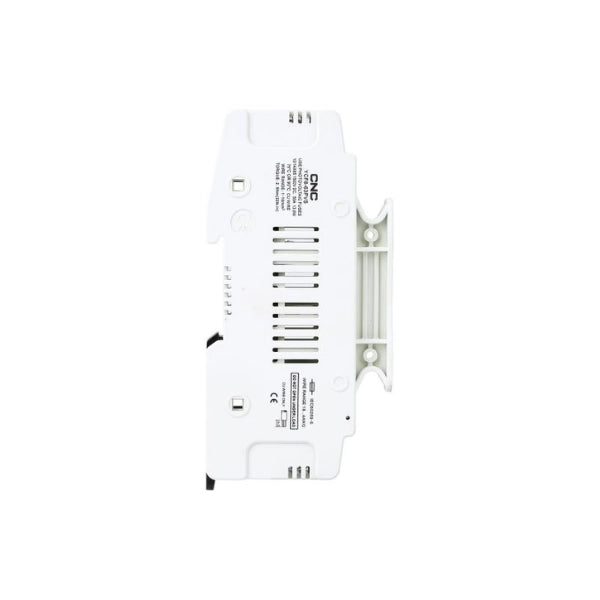

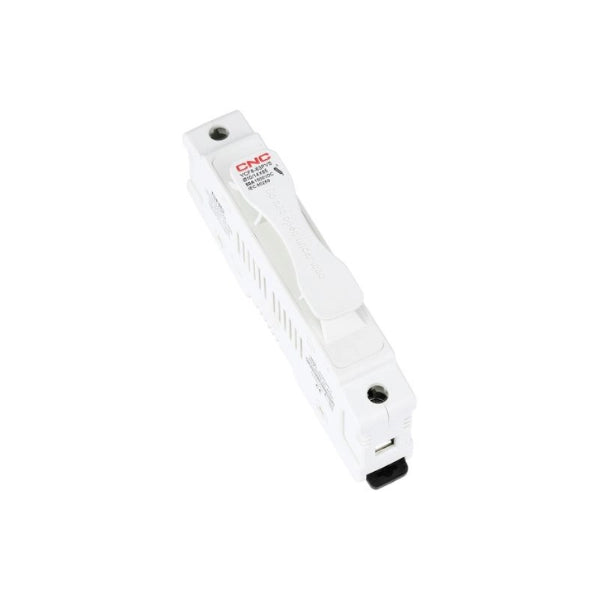

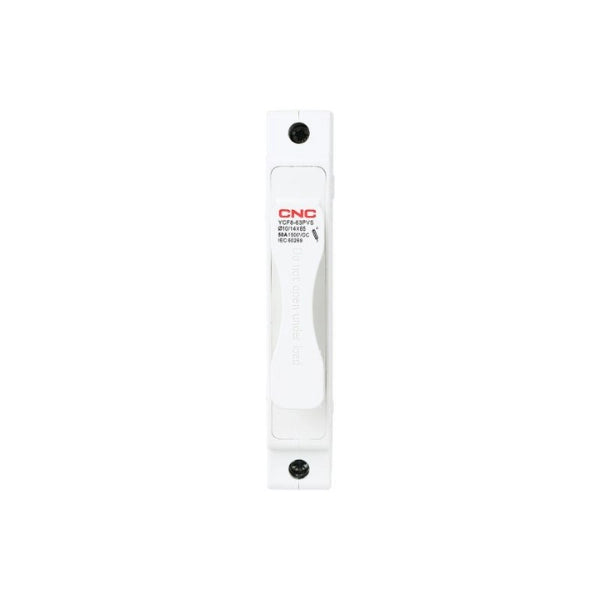

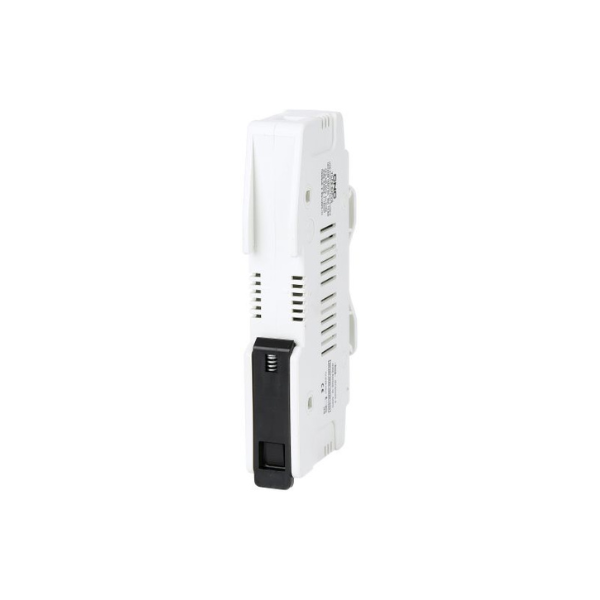

CNC DC 1500V Fuse with 1P Holder 20A Fuse – Overload & Short Circuit Protection
CNC DC 1500V Fuse with 1P Holder 20A Fuse – Overload & Short Circuit Protection
CNC DC 1500V Fuse with 1P Holder 20A Fuse – Overload & Short Circuit Protection
CNC DC 1500V Fuse with 1P Holder 20A Fuse – Overload & Short Circuit Protection
CNC DC 1500V Fuse with 1P Holder 20A Fuse – Overload & Short Circuit Protection

CNC DC 1500V Fuse with 1P Holder 20A Fuse – Overload & Short Circuit Protection

DC Fuse Photovoltaic fuse YCF8-□ PVS series is applicable to DC Fuse distribution lines with...
Vendor: C-Power
Availability: In Stock
Product Type: DC Fuse
Rs.1,450.00
Rs.1,600.00
Rs.1,450.00
Save Rs.150.00
(-9%)
With Fuse: 20A Fuse
Without Fuse: Upto 63A Holder
10 customers are viewing this product
Why Shop With Us?
⏰

EXPRESS DELIVERY

Same Day Delivery in Lahore and Karachi. Order Before 4 PM.

STANDARD DELIVERY

Delivery Within 2 to 3 Working Days.

PRODUCT WARRANTY

Trusted Products with Quality Assurance.
  • CNC Electric Pakistan

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Dc Fuse & Holder

CNC DC 1500V Fuse with 1P Holder 20A Fuse – Overload & Short Circuit Protection

Rs.1,600.00 Rs.1,450.00
Dc Fuse & Holder
CNC DC 1500V Fuse with 1P Holder 20A Fuse – Overload & Short Circuit Protection
CNC DC 1500V Fuse with 1P Holder 20A Fuse – Overload & Short Circuit Protection
CNC DC 1500V Fuse with 1P Holder 20A Fuse – Overload & Short Circuit Protection
CNC DC 1500V Fuse with 1P Holder 20A Fuse – Overload & Short Circuit Protection
CNC DC 1500V Fuse with 1P Holder 20A Fuse – Overload & Short Circuit Protection

CNC DC 1500V Fuse with 1P Holder 20A Fuse – Overload & Short Circuit Protection

Rs.1,600.00 Rs.1,450.00
With Fuse: 20A Fuse
Without Fuse: Upto 63A Holder
Description
DC Fuse

Photovoltaic fuse YCF8-□ PVS series is applicable to DC Fuse distribution lines with rated voltage not exceeding DC1500V, rated current not exceeding 50A, and rated short circuit capacity not exceeding 50kA; It is used for line overload and short circuit protection. It is mainly used in energy storage systems and solar photovoltaic combiner boxes as short circuit and overload protection for solar photovoltaic power generation devices, batteries, and other semiconductor devices.
Standard: IEC 60269-6 UL248-19

Key Features
  1. High Voltage Capacity

○      Supports up to DC1500V and current ratings between 2A and 50A.

○      Offers a breaking capacity of 50kA for robust circuit protection.

  1. Optimized for Solar Systems

○      Provides overload and short circuit protection for solar panels, inverters, and batteries.

○      Specifically designed for photovoltaic power generation systems.

  1. Durable and Reliable

○      Operates in a wide temperature range from -40°C to +90°C.

○      Suitable for altitudes up to 2000m and environments with varying humidity.

  1. Easy Installation

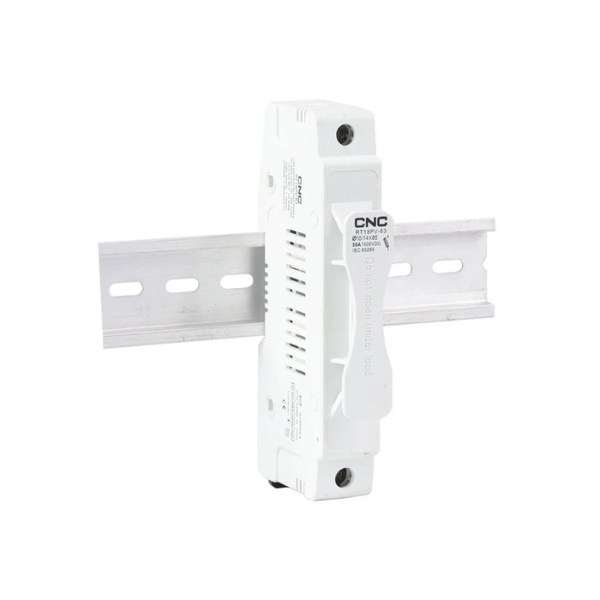

○      Features TH-35 Din-rail installation for quick setup.

○      Complies with pollution degree Level 3 and installation category III.

DC Fuse Specifications

●      Rated Current: 2A to 50A (depending on model).

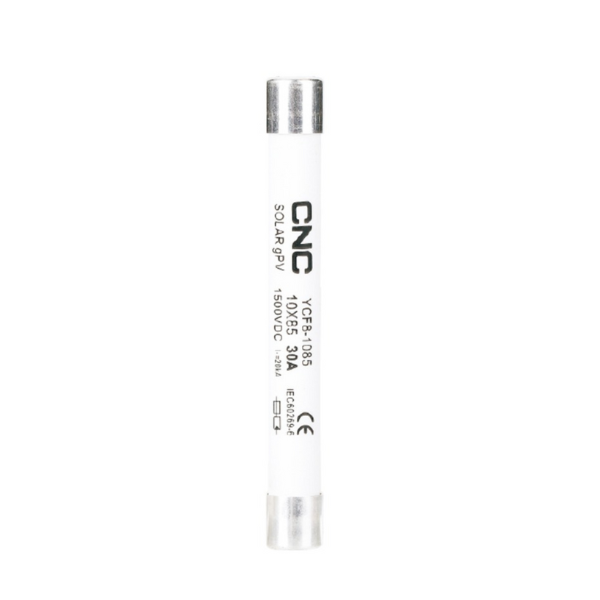

●      Fuse Size: 10 × 85 mm for 2A-32A models, 14 × 85 mm for 40A-50A models.

●      Rated Voltage: DC1500V.

●      Breaking Capacity: 20kA.

●      Operating Level: gPV.

●      Operating Temperature: -40°C to +90°C.

●      Installation: TH-35 Din-rail.

●      Standards: IEC 60269-6, UL248-19.

General

●      For DC lines up to DC1500V.

●      Protects solar, energy storage, and semiconductor systems.

●      Safeguards against overloads and short circuits.

●      Commonly used in solar combiner boxes.

Brand

CNC

Technical Data

YCf8-63PVS

Fuse Size (mm)

10×85, 14×85

Rated Working Voltage Ue (V)

DC1500

Rated Insulation Voltage Ui (V)

DC1500

Rated Short-Circuit Breaking Capacity (KA)

20KA

Operating Level

gPV

Standard

IEC60269-6, UL4248-19

Number of Poles

1Pole

Installation Method

TH-35 Din-rail installation

Operating Environment and Installation

Working Temperature

-40°C ≤ T ≤ +90°C

Altitude

≤2000m

Humidity

When the maximum temperature is +40°C, the relative humidity of the air shall not exceed 50%, and higher humidity can be allowed at lower temperatures. For example +90% at 25°C. Special measures shall be taken for occasional condensation due to temperature changes.

Installation Environment

In a place where there is no explosive medium and the medium is not enough to corrode metal and damage insulation gas and conductive dust.

Pollution Degree

Level 3

Installation Category

III



Photovoltic Fuse 1500V



Product Name

Size

Rated Current

Rated Voltage

YCf8

1085: 10×85(mm)

2-32A

DC1500V
