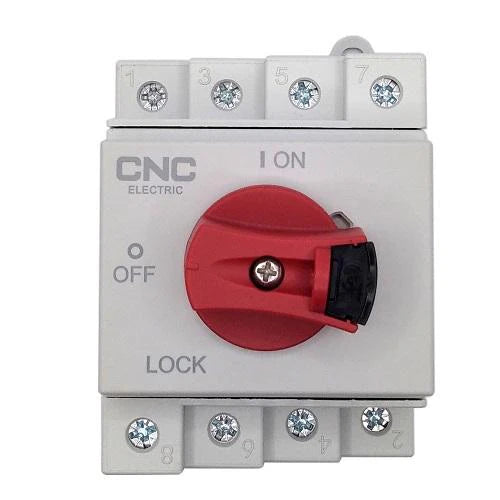

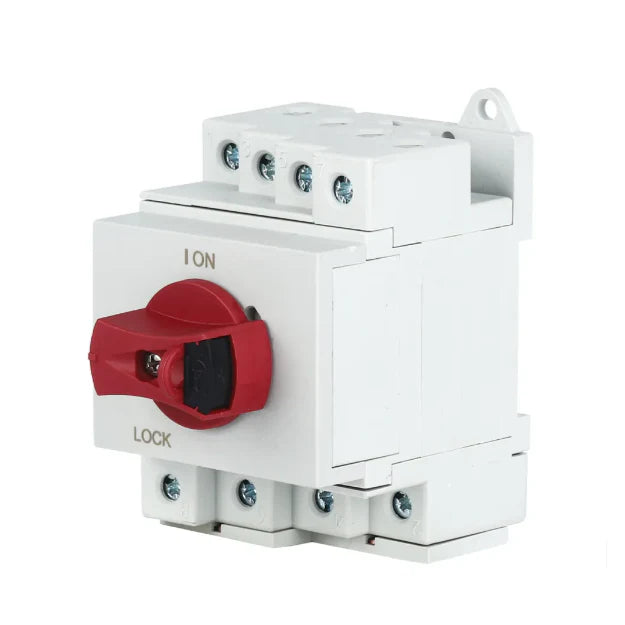

CNC 4-Pole DC Isolator – DIN Rail Mounted Switch
CNC 4-Pole DC Isolator – DIN Rail Mounted Switch

CNC 4-Pole DC Isolator – DIN Rail Mounted Switch

High-Quality and Reliable Disconnect Switch for Solar Systems The Din Rail isolation switch YC1SC8 series...
Vendor: CNC Electric Pakistan
Availability: In Stock
Rs.5,280.00
Rs.6,000.00
Rs.5,280.00
Save Rs.720.00
(-12%)
10 customers are viewing this product
Ampre: 32A
Why Shop With Us?
⏰

EXPRESS DELIVERY

Same Day Delivery in Lahore . Order Before 4 PM.

STANDARD DELIVERY

Reliable Delivery in
2 to 4
Working Days.

PRODUCT WARRANTY

Trusted Products with 2 years Replaced Warranty.

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
CNC 4-Pole DC Isolator – DIN Rail Mounted Switch

CNC 4-Pole DC Isolator – DIN Rail Mounted Switch

Rs.6,000.00 Rs.5,280.00
CNC 4-Pole DC Isolator – DIN Rail Mounted Switch
CNC 4-Pole DC Isolator – DIN Rail Mounted Switch

CNC 4-Pole DC Isolator – DIN Rail Mounted Switch

Rs.6,000.00 Rs.5,280.00
Ampre: 32A
Description

High-Quality and Reliable Disconnect Switch for Solar Systems

The Din Rail isolation switch YC1SC8 series (4-Pole) is designed for DC power systems up to DC1200V with rated current up to 32A. It allows simultaneous disconnection of up to 4 MPPT lines, making it ideal for complex solar setups.

This isolator is used for infrequent manual switching and safe disconnection in photovoltaic systems. Typical applications include control cabinets, combiner boxes, and DC distribution panels.
Standards: IEC/EN60947-3, AS60947.3, UL508i

Key Features:

  • Complete 4-Pole Isolation:
    Efficiently isolates four DC circuits at once, ensuring no current flows during maintenance, thereby guaranteeing operator safety.

  • Robust Build Quality:
    Constructed with premium materials, this isolator is durable and long-lasting, even in harsh environmental conditions.

  • Space-Saving DIN Rail Design:
    Its compact design ensures a tidy and space-efficient installation on standard DIN rails.

  • Easy to Install:
    The snap-on DIN rail system enables quick installation for both new systems and upgrades.

  • UV Resistant & Flame Retardant:
    Ideal for outdoor PV installations, thanks to its weather-resistant and flame-retardant housing.

Applications:

  • Solar PV Systems:
    Disconnect and isolate multiple solar strings (MPPTs) safely from the inverter/DC circuitry.

  • DC Power Distribution:
    Suitable for residential, commercial, and industrial DC disconnection needs.

  • Maintenance & Safety:
    Essential for system upgrades, troubleshooting, or servicing, providing full protection against live DC hazards.


Electrical Performance

Data

Rated Heating Current (Ith)

32A

Rated Insulation Voltage (Ui, V DC)

1000V , 4Pole

Rated Working Voltage (Ue, V DC)

1000V or 1200V

Rated Impulse Voltage (Uimp, kV)

8kV

Rated Short-Time Withstand Current (Icw(1s), kA)

1kA

Rated Short-Time Making Capacity (Icm, kA)

1.7kA

Rated Short Circuit Current (Icn)

3kA

Overvoltage Category

II

Polarity

No polarity, "+" and "-" can be interchanged

Switch Knob Position

9 o'clock position off, 12 o'clock position on, 3 o'clock position on

Service Life

Mechanical

10000 cycles

Electrical

3000 cycles



Why Choose the CNC 4-Pole DC Isolator?

The CNC 4-Pole DC Isolator is the go-to solution for safely managing multiple DC circuits in solar and other critical power systems. Its high-performance, reliable switching, and user-friendly installation make it the ideal choice for professionals looking to minimize downtime and maximize protection.
