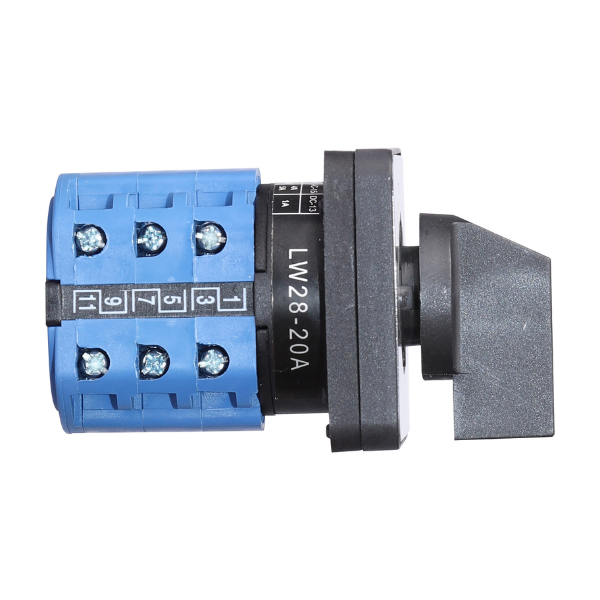

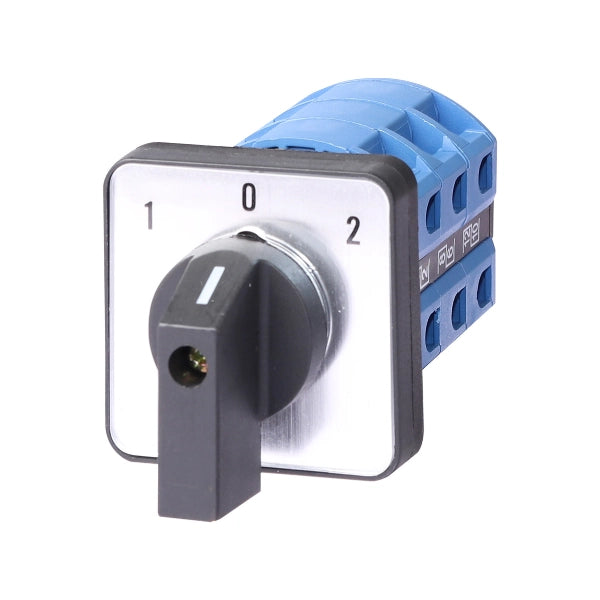

LW28 Series Universal changeover switch is a Selector Switch mainly used for AC 50/60Hz, rated voltage up to 380V and below, DC voltage up to 220V, and rated current to 160A electrical circuit for manually infrequent making or breaking the circuit for the purposes of control and conversion. It can also control three-phase asynchronous motors and circuits directly for master control and measurement purposes. The products are widely used, replacing various national switches, and can serve as circuit control switches, measuring equipment switches, motor control switches, master control switches, and welding machine switches.
Standard: IEC60947-3
1. The ambient air temperature does not exceed +40℃, the average temperature within 24 hours and not more than +35℃.The ambient air temperature is not lower than -5℃ .
2. Installation site altitude does not exceed 2000m
3. The relative humidity of the air no more than 50% when the maximum
temperature is +40℃ and at a lower temperature allows a higher relative
humidity, such as when temperature is 20℃ the relative humidity reaches 90%.
4. Special measures should betaken for condensation occassionally due to temperature changes.
For use to master control
Note:If there are special wiring requirements, please provide the wiring diagram or contact us
The following table shows the relevant dimension of the transfer switch
