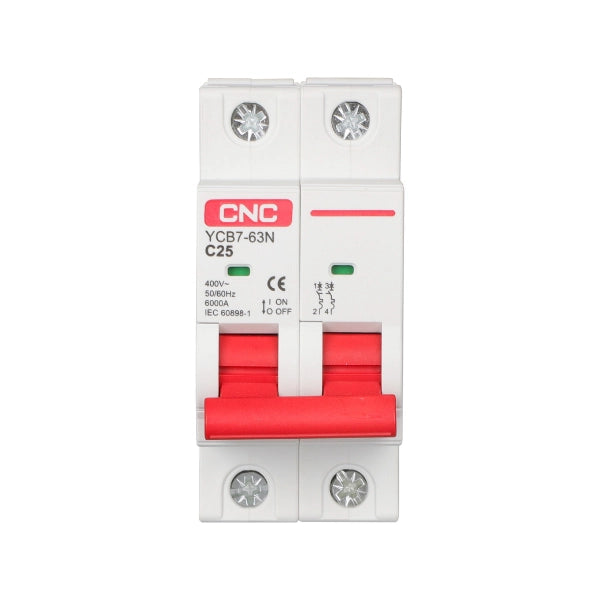

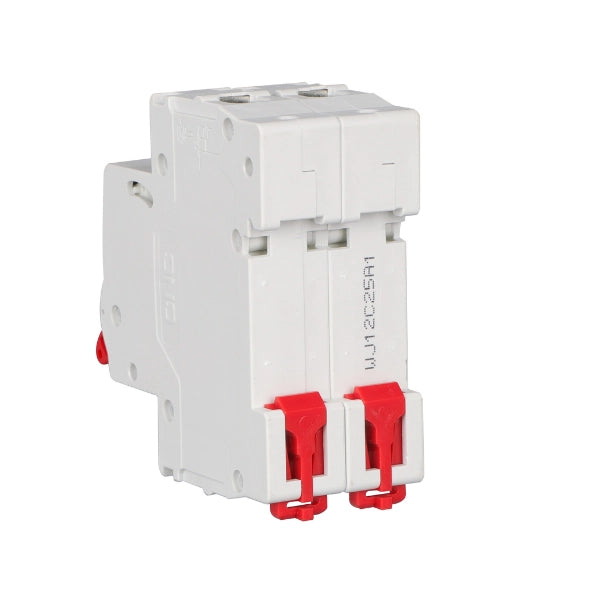

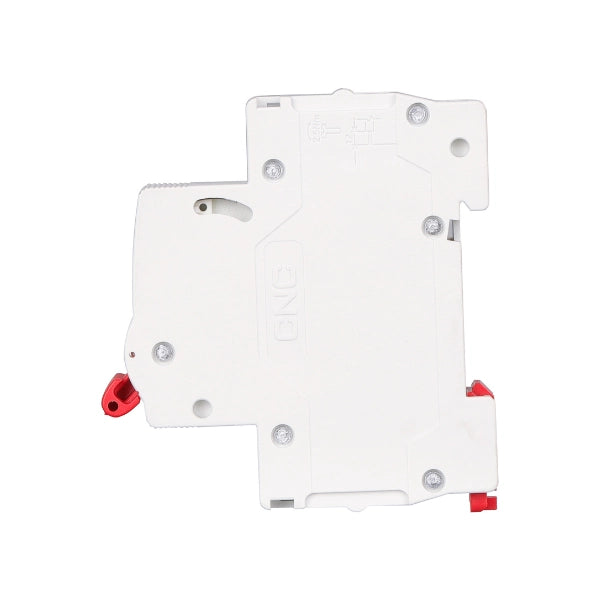

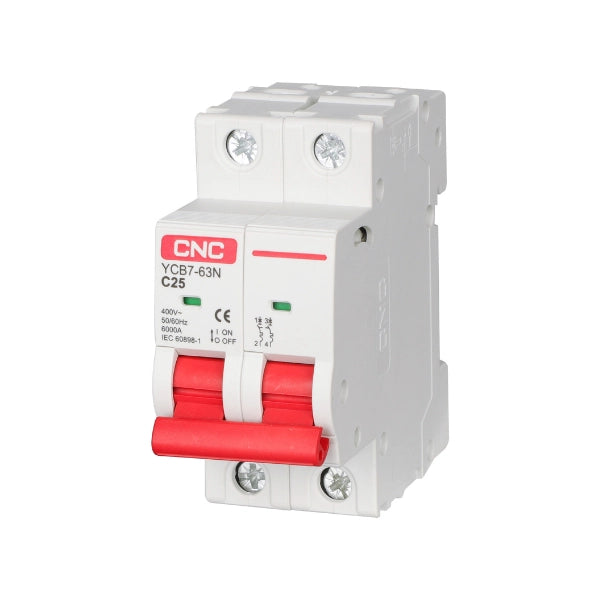

CNC 2P MCB AC Cricuit Breaker YCB7H-63A
Ac Breaker Key Features 1. Comprehensive ProtectionOffers effective overcurrent, overload, and short circuit protection, ensuring...
- Rs.950.00
Rs.950.00- Rs.950.00
- (-0%)
- Unit price
- per
Save Rs.0.00
10 customers are viewing this product
Couldn't load pickup availability
Ac Breaker Key Features
1. Comprehensive Protection
Offers effective overcurrent, overload, and short circuit protection, ensuring safety for electrical systems.
● Protects against electrical faults and overloads.
● Suitable for AC 50/60Hz circuits.
2. Dual Pole Configuration
AC Cricuit Breaker Designed with a double-pole structure for enhanced flexibility and safety in electrical installations.
● Supports 20A, 32A, 40A, and 63A rated currents.
● Provides reliable protection for both poles.
3. High Performance
Features a breaking capacity of 6.0KA and tripping curves (B, C, D) for diverse applications.
● Handles high fault currents efficiently.
● Meets the needs of residential, commercial, and industrial environments.
Specification |
Value |
|
Type |
Standard IEC/EN 60898-1 |
|
Rated Current (In) |
16A, 20A, 32A, 40A, 63A |
|
Poles |
2 Pole |
|
Rated Voltage (Ue) |
230/400 V |
|
Insulation Voltage (Ui) |
500 V |
|
Rated Frequency |
50/60 Hz |
|
Rated Breaking Capacity |
6000 A |
|
Rated Impulse Withstand Voltage (Uimp) |
4000 V |
|
Dielectric Test Voltage at Industrial Frequency (1 min) |
2 kV |
|
Pollution Degree |
2 |
|
Thermo-Magnetic Release Characteristic |
B, C, D |
|
Electrical Life |
6000 cycles |
|
Mechanical Life |
20000 cycles |
|
Protection Degree |
IP20 |
|
Ambient Temperature (Daily Average ≤35°C) |
-25~+70°C |
|
Storage Temperature |
-25~+70°C |
|
Terminal Connection Type |
Cable/Pin-type busbar |
|
Terminal Size Top/Bottom for Cable |
25 mm² / AWG 18-3 |
|
Terminal Size Top/Bottom for Busbar |
25 mm² / AWG 18-3 |
|
Tightening Torque |
2 N·m / 18 In-lbs |
|
Mounting |
On DIN rail EN 60715 (35 mm) by means of fast clip |
|
Connection |
From top and bottom |
|
Reference Temperature for Setting of Thermal Element |
30°C |
