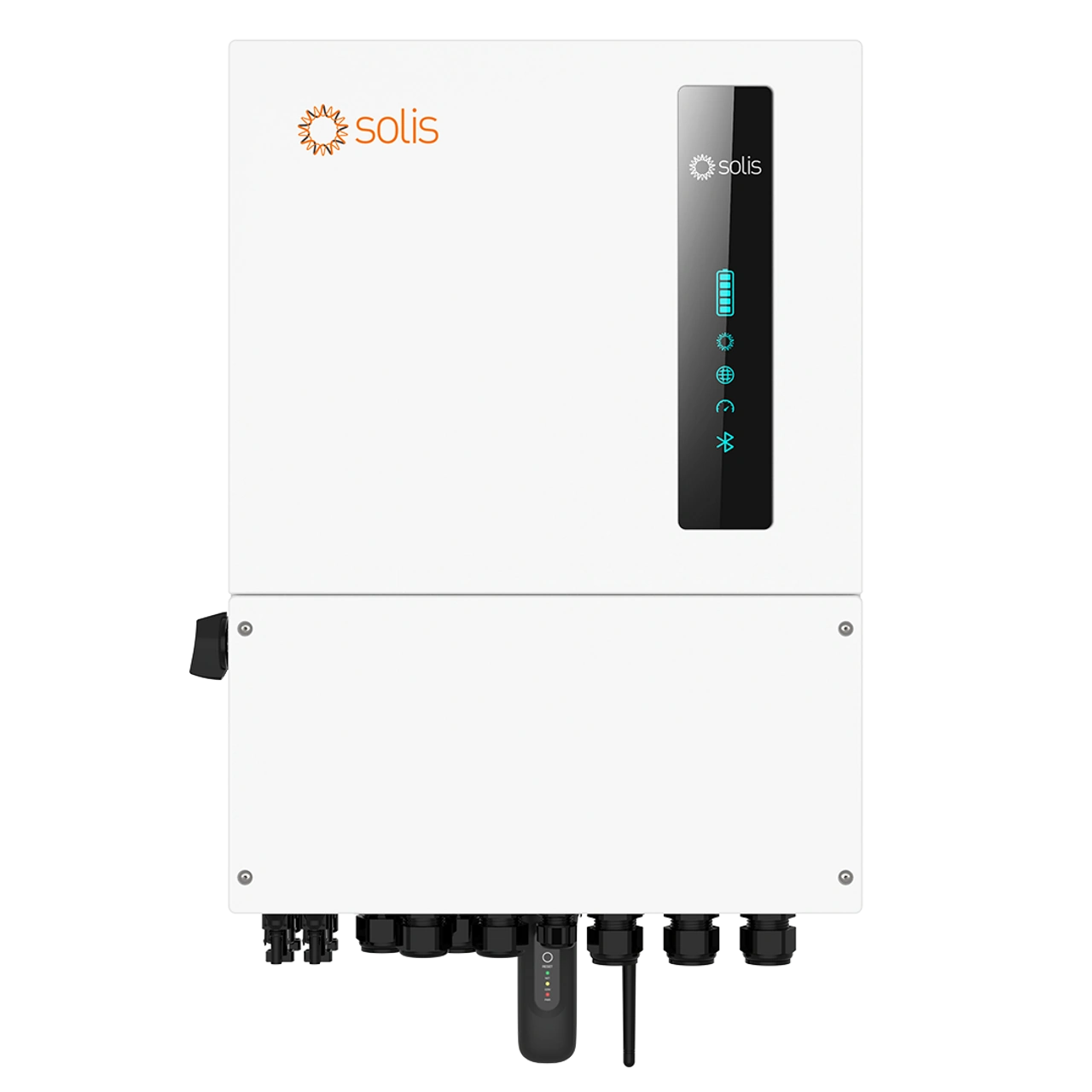

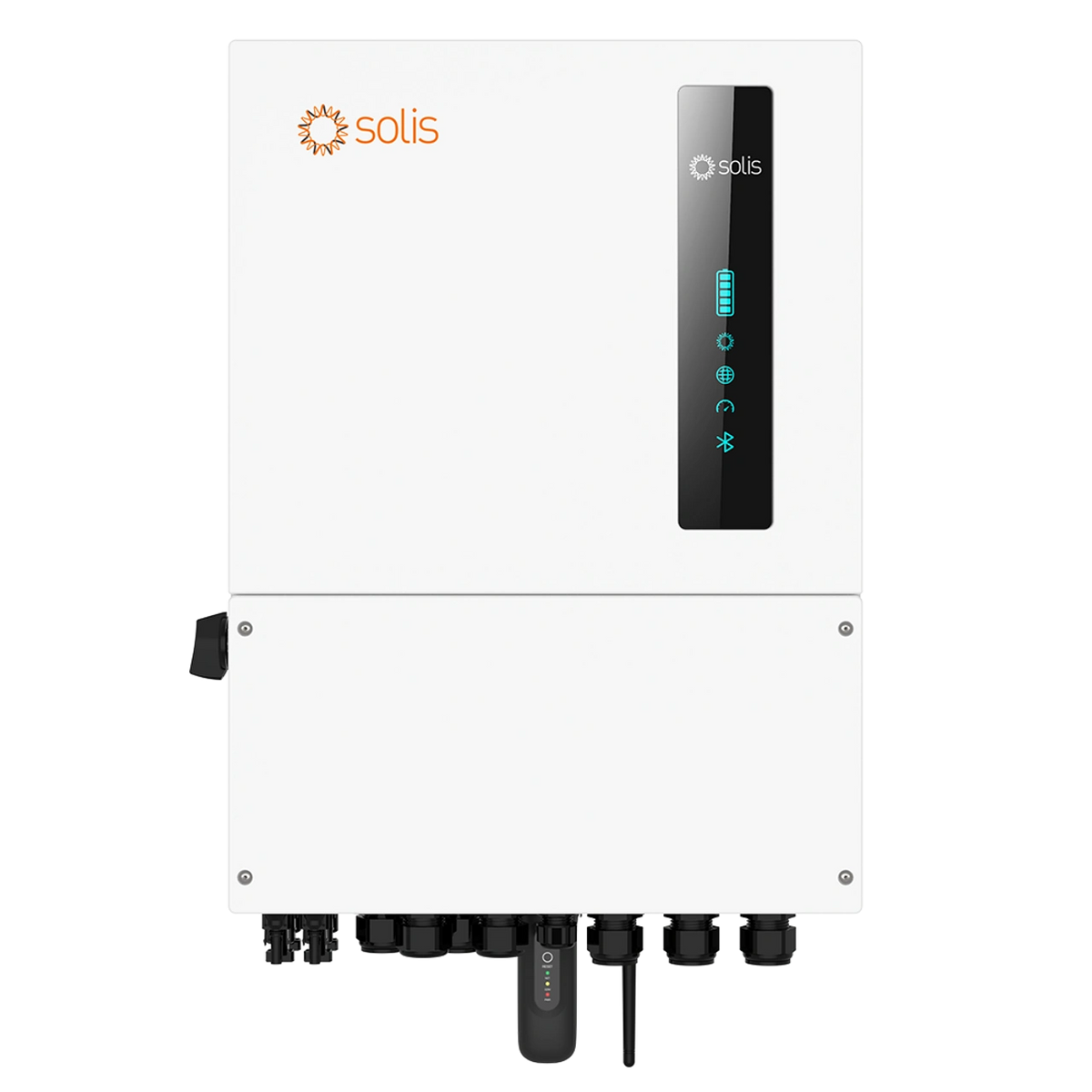

Solis 8KW Single Phase Hybrid LV Inverter Pro

The Solis 8KW Single Phase Hybrid LV Inverter Pro (Model: S6-EH1P8K-L-PRO) is a high-performance inverter designed for residential and small commercial photovoltaic (PV) energy storage systems. It efficiently converts DC power from solar panels into AC power for household or business use, while also managing energy storage and grid interaction.

Key Features:

• High Efficiency: Achieves an inverter efficiency of 97.5%, ensuring optimal energy conversion and minimal losses.

• Dual MPPT Design: Equipped with two Maximum Power Point Tracking (MPPT) channels, each supporting up to 32A of current, allowing for flexible panel configurations and improved energy harvest.

• Flexible Battery Compatibility: Compatible with both lithium-ion and lead-acid batteries, offering versatility in energy storage solutions.

• High Charge/Discharge Current: Supports up to 190A of charge/discharge current, facilitating rapid energy storage and retrieval.

• Automatic UPS Switching: Features automatic uninterruptible power supply (UPS) switching with a response time of less than 4 milliseconds, ensuring continuous power during grid outages.

• Surge Power Capability: Provides a 10-second 200% surge power backup overload capability, accommodating high inrush currents from appliances.

• Parallel Operation: Supports parallel connection for both single-phase and three-phase systems, allowing up to 48kW in parallel to meet higher power demands.




• Customizable Charge/Discharge Settings: Offers six customizable charge and discharge time settings with defined charging sources, enhancing energy management flexibility.

• Generator Connectivity: Includes multiple input methods and automatic generator on/off control, enabling seamless integration with backup generators

Technical Specifications:

• Model: S6-EH1P8K-L-PRO

• Rated Output Power: 8kW

• Input Voltage (PV Side):

  • Max. Input Voltage: 600V
  • MPPT Voltage Range: 90-520V
  • Start-Up Voltage: 90V
  • Max. Input Current: 32A per MPPT

• Battery Voltage Range: 40-60V

• Max. Charge/Discharge Power: 8kW

• Max. Charge/Discharge Current: 190A

• Output Voltage: 220V/230V

• Output Frequency: 50Hz/60Hz

• Operating Temperature Range: -10°C to 50°C

• Dimensions: 406 x 560 x 215 mm

• Weight: 25.7 kg

• Ingress Protection: IP66

Applications:

The Solis 8KW Single Phase Hybrid LV Inverter Pro is ideal for:

• Residential Solar Installations: Providing reliable power for household appliances and reducing electricity bills.

• Small Commercial Use: Supporting energy demands in small to medium-sized businesses.

• Uninterrupted Power Supply (UPS): Ensuring continuous power during grid outages.
