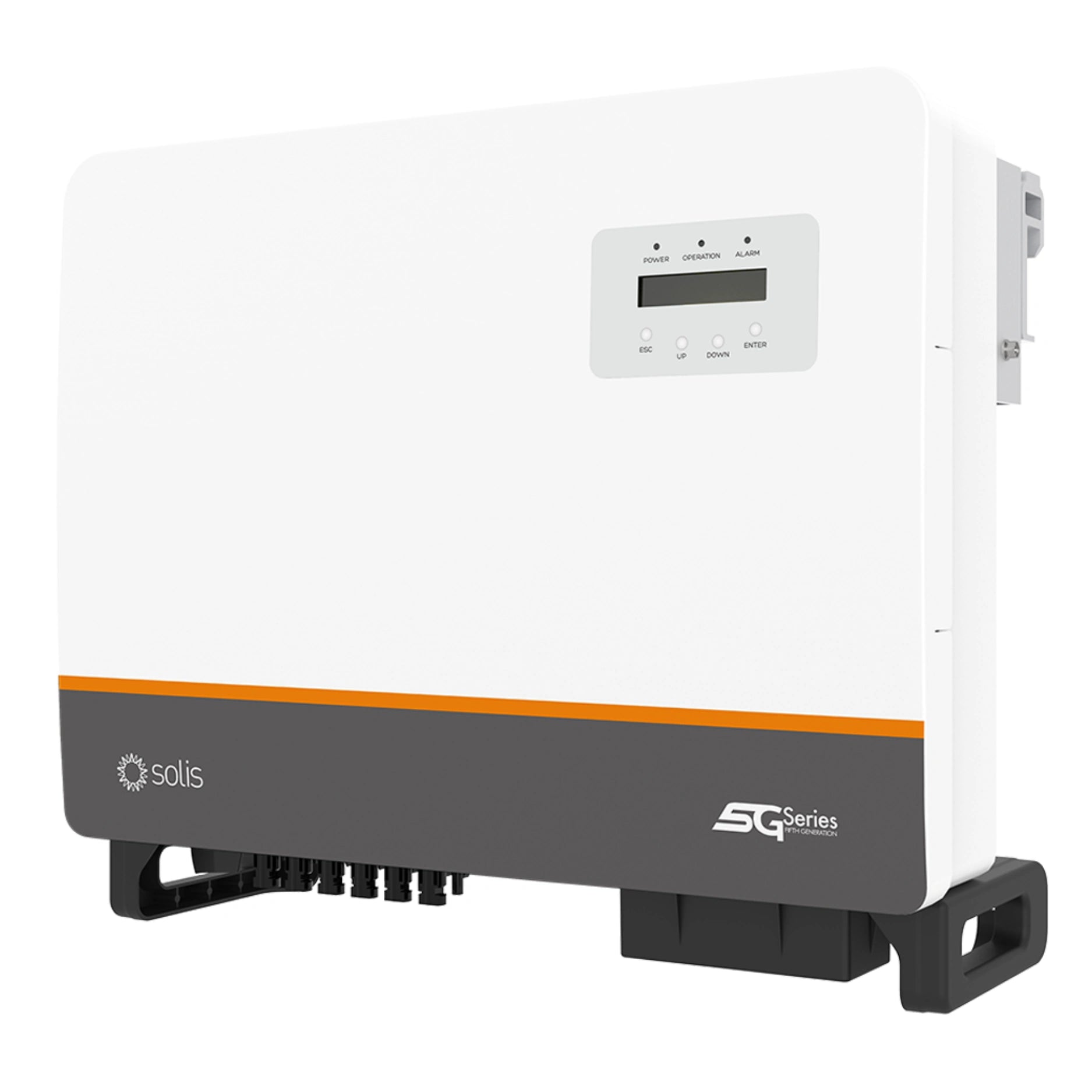

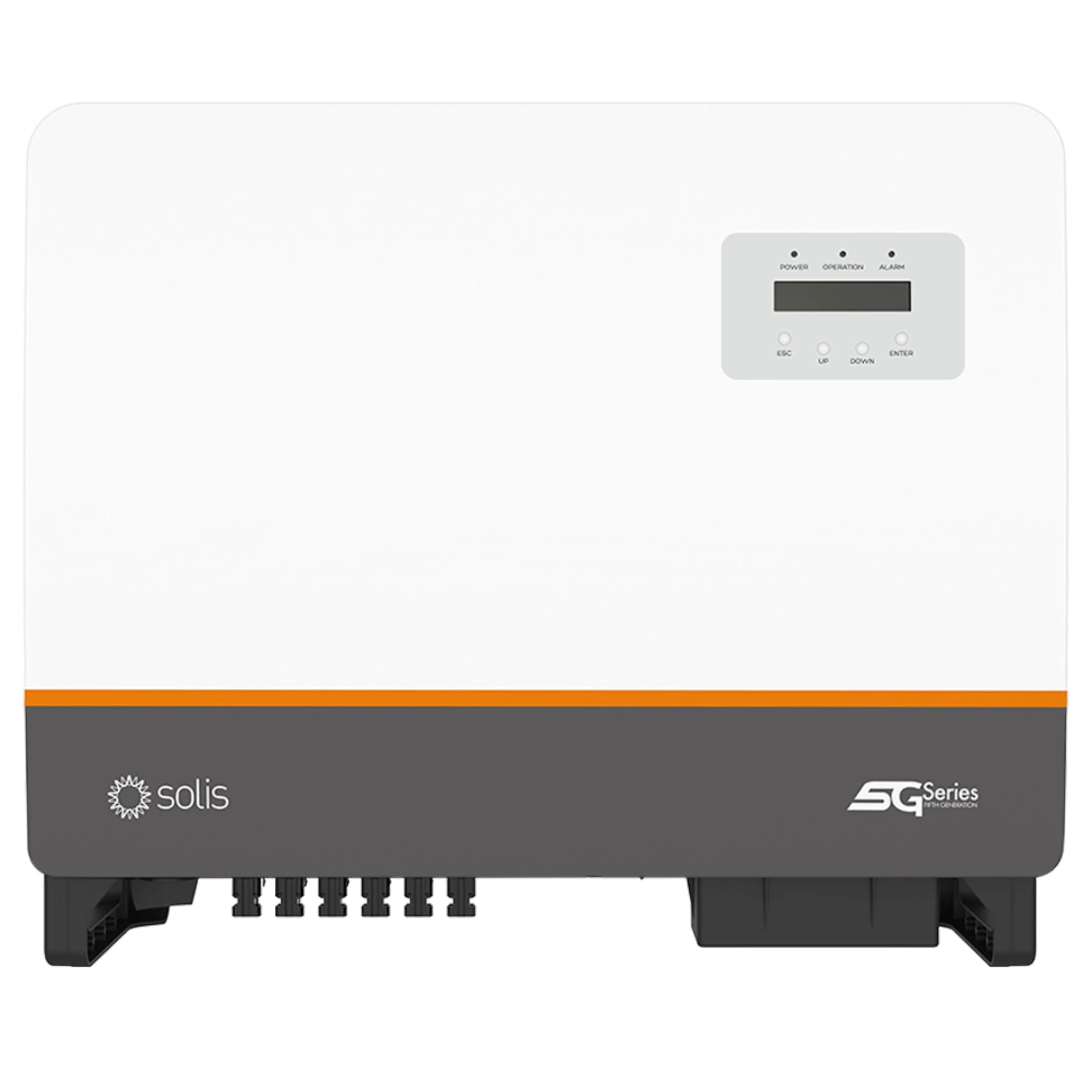

Solis 50kW On-Grid Solar Inverter

PDF Document

Key Features:

1. High Efficiency:

   • Offers a maximum efficiency of 98.7%, ensuring excellent energy conversion and minimizing power losses.

2. Advanced MPPT Technology:

   • Equipped with 4 independent MPPTs to optimize power generation from multiple PV arrays, even under varying conditions.

3. Wide Voltage Range:

   • Operates effectively within a DC input voltage range of 200V to 1000V, suitable for diverse installation setups.

4. Real-Time Monitoring and Control:

   • Supports SolisCloud for remote system monitoring and performance analysis via mobile or desktop.

5. Enhanced Safety Features:

   • Includes Type II surge protection, anti-islanding, and ground fault detection for safe operation.

6. Compact and Lightweight Design:

   • Easy to install with a user-friendly LCD interface for configuration and monitoring.

7. Robust Cooling System:

   • Built-in intelligent fan cooling system ensures efficient heat dissipation and reliable operation under high loads.

8. Durable and Reliable:

   • Designed for long-term performance, with a sturdy build that withstands challenging environmental conditions.

Technical Specifications:

• Model: Solis 50kW On-Grid
• Output Power: 50,000W
• Input Voltage (DC): 200V - 1000V
• Max PV Input Current: 22A per MPPT
• Number of MPPTs: 4
• Output Voltage (AC): 230/400V
• Grid Frequency: 50/60 Hz
• Operating Temperature Range: -25°C to 60°C
• Communication Interface: RS485, Wi-Fi, GPRS (optional)
• Cooling Method: Intelligent fan cooling
• Weight: Approx. 65 kg
• Dimensions: 580 x 755 x 310 mm

Applications:

• Ideal for large-scale commercial, industrial, and utility-scale solar installations where high energy output is required.

Benefits:

• Cost Savings: Significantly reduces electricity bills through efficient solar energy usage.
• Environmentally Friendly: Promotes clean energy adoption and reduces carbon footprint.
• Reliable Performance: Built for long-term, high-efficiency operation in diverse environments.

Additional Options:

• Compatible with Wi-Fi and GPRS modules for enhanced monitoring and control capabilities.
