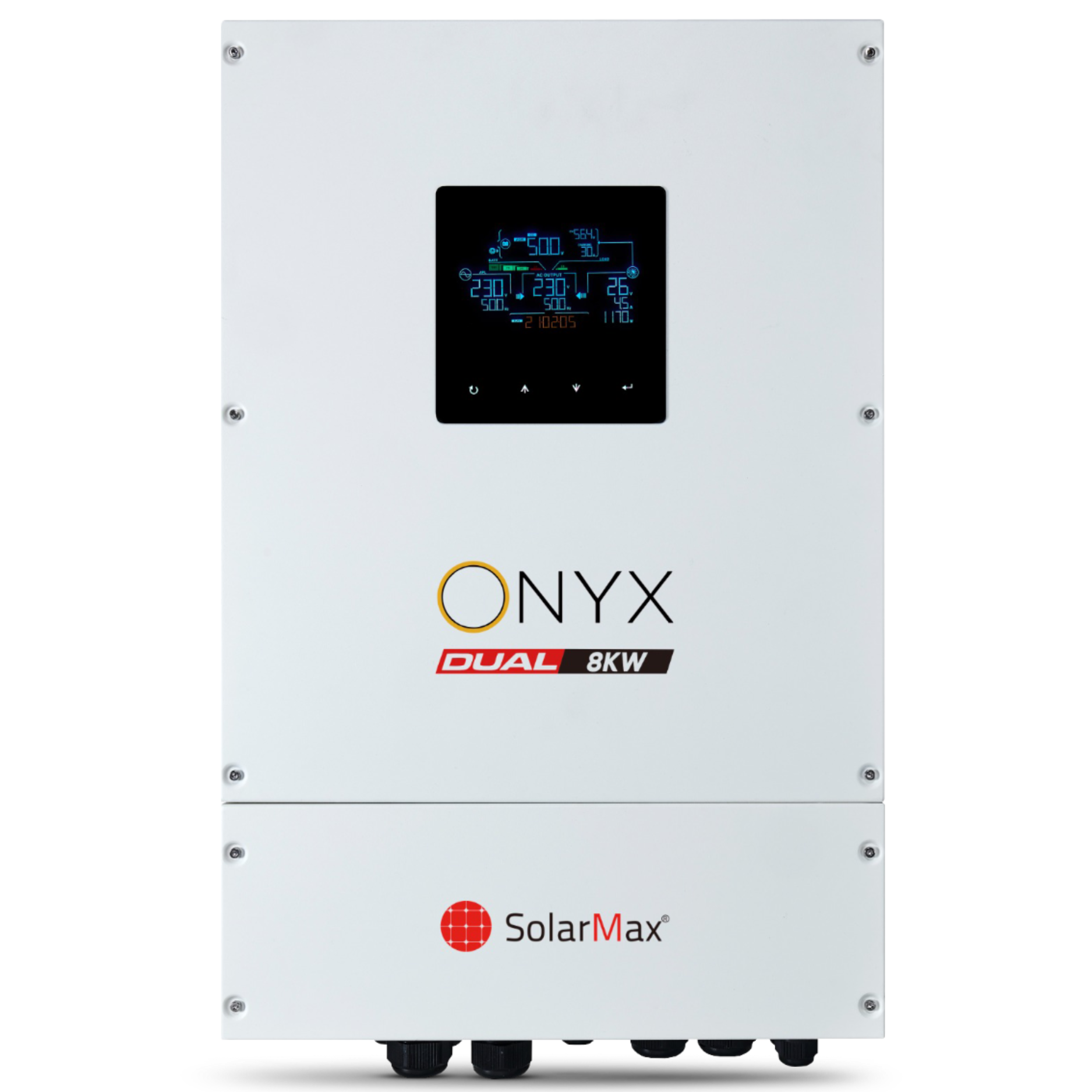

SolarMax Onyx 8KW Hybrid Solar Inverter

The SolarMax Onyx 8KW is a hybrid solar inverter designed to provide efficient and reliable power solutions for both residential and commercial applications. Its advanced features and robust design make it a versatile choice for managing energy needs.

Key Features:

• Pure Sine Wave Output: Delivers clean and stable electricity suitable for all types of appliances.

• Dual AC Output: Provides separate outputs for normal and heavy loads, ensuring optimal power distribution.

• 10KW Dual MPPT PV Input: Equipped with dual Maximum Power Point Tracking (MPPT) inputs, allowing for efficient energy harvest from solar panels.

• Built-in Wi-Fi: Enables easy monitoring and control of the inverter's performance via a user-friendly interface.

• Short-Circuit Protection: Incorporates smart safety features to protect against electrical faults.

• Smart Power Management: Allows users to set multiple schedules for energy usage, enhancing efficiency.

• Battery Management System (BMS): Integrated BMS ensures optimal battery performance and longevity.

• Parallel Capability: Supports parallel operation, allowing up to six units to be connected in single-phase or three-phase configurations for increased capacity.

Technical Specifications:

• Model: SM-ONYX-DUAL-8KW

• Rated Output Power: 8KW

• Maximum PV Input Power: 10KW

• Battery Voltage: 48V

• Protection Rating: IP65, suitable for outdoor installations.

• Display: LCD for real-time monitoring.

• Communication Ports: Built-in Wi-Fi for remote monitoring.

• Operating Temperature Range: -10°C to 50°C

Applications:

The SolarMax Onyx 8KW inverter is ideal for:

• Residential Solar Installations: Providing reliable power for household appliances and reducing electricity bills.

• Commercial and Industrial Use: Supporting larger energy demands with the ability to operate in parallel configurations.

• Uninterrupted Power Supply (UPS): Ensuring continuous power during grid outages.
