Huawei inverter 30 kw On-Grid Solar Inverter

PDF Document

OVERVIEW:

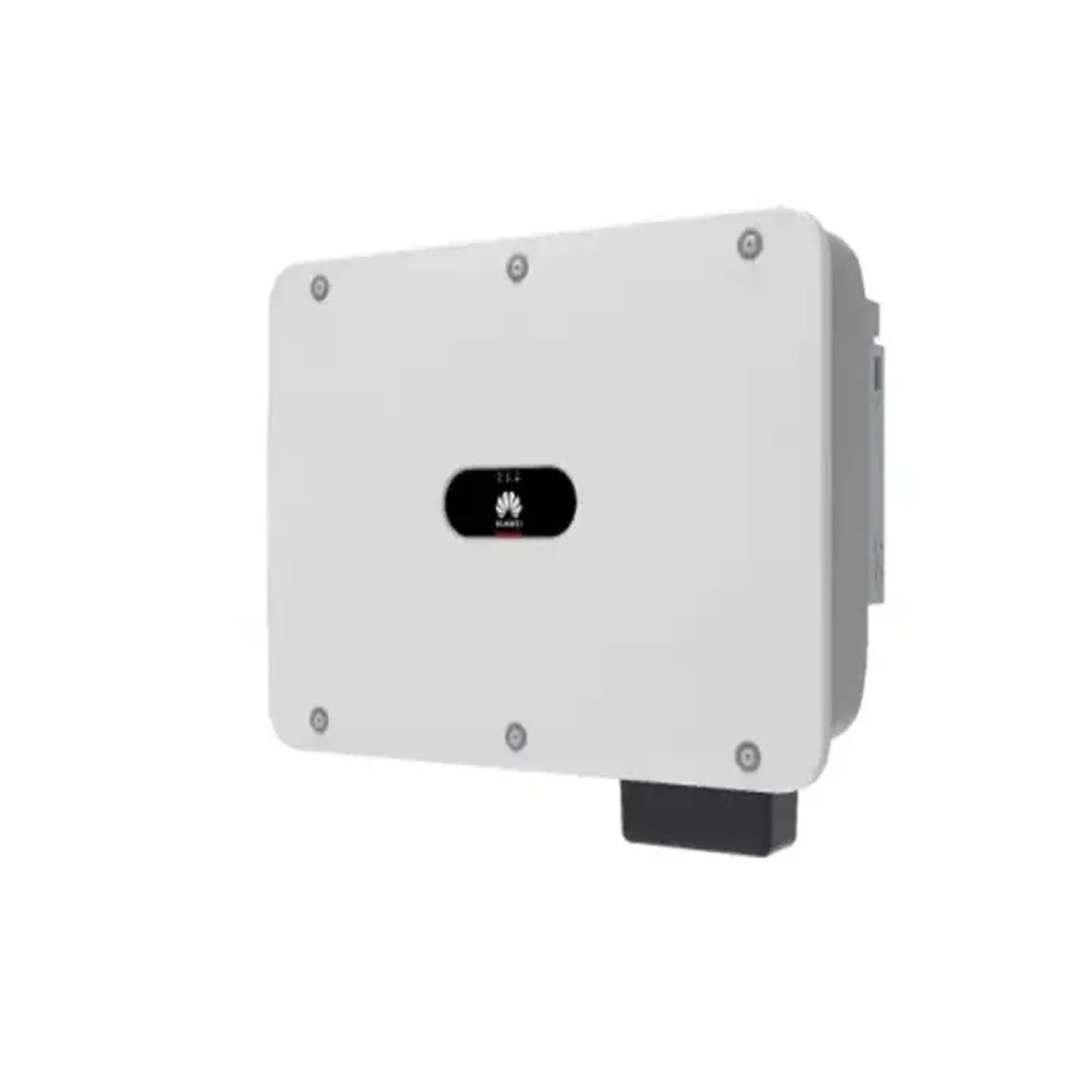

The Huawei SUN2000-30KTL-M3 is a powerful inverter that performs an indispensable task in the PV system: It converts the direct current into alternating current. With its high efficiency, it is the right solution for demanding system operators. Behind the dimensions of 640 x 530x 270 mm, the Huawei SUN2000-30KTL-M3 inverter offers a lot of state-of-the-art technical finesse. The weight is 43 kg - including the mounting plate. As with all Huawei Solar products, installation is simple and commissioning can be completed in just a few minutes using the app. RS485 communication is provided for data exchange with the Smart Logger and Smart Power Meter.

Features:

• 3-phase inverter with 33,000VA1 Power

• 4 independent MPP trackers

• 8 DC connections

• Efficiency up to 98.7%

• Communication via WLAN / Ethernet & 2G/3G/4G (optional)

• Free system monitoring with FusionSolar

• RS485 for Smart Power Sensor and SmartLogger

• Connection for ripple control receiver

• DC MBUS communication for Smart Optimizer

• Integrated AC and DC overvoltage protection TYPE II

• Integrated PID recovery

• Convection cooling

• Protection class IP66
