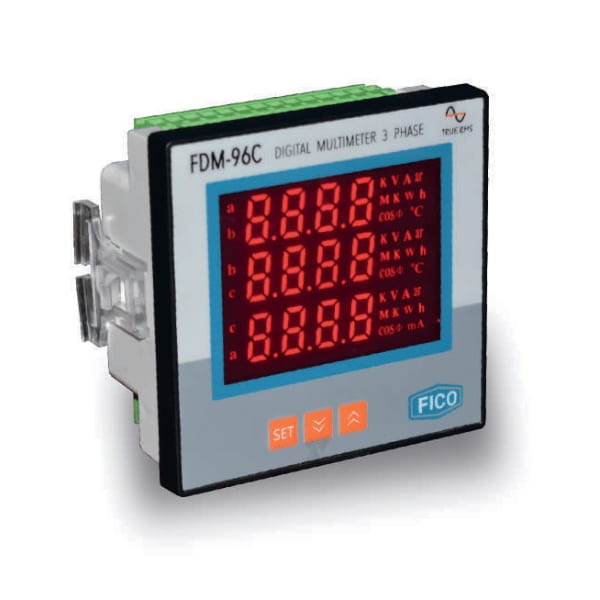

Fico Multi Functional Power Meter FDM-96C

DIGITAL POWER ANALYSER

FDM-96C series multi-functional digital display electric measuring meter is a new generation of intelligent electric meter, integrates measurement, alarming, transmission and communication as a whole.

For User Manual

Click here to view Fico Power Analyzer User Manual

General

• Class 0.2 high precision.

• Support Modbus-RTU communication protocol RS-485.

• It supports dual power source metering (DI trigger); Dual relay output.

• It can measure the 2–31 harmonic content.

• 4-digit full-view LED digital screen display.

• Can measure the voltage crest factor and current K factor in the power network.

• Can support bi-directional (import/export) feature.

• 2-way relay dry contact output (DO) module. Can be used for alarm signal output or remote control function.

Technical Features

Accuracy Measurement

• Current/Voltage: ± (0.5% F.S.)
• Active/Reactive/Apparent Power: ± (1.0% F.S.)
• Frequency: ± 0.1Hz
• Power Factor: ± 0.01PF
• Active Energy: Grade 1.0
• Reactive Energy: Grade 2.0

Power Supply

• Range: AC/DC85-264V
• Power Consumption: <5VA

Input

• Network: 3P3W, 3P4W
• Voltage:
• Rated Voltage: AC 57.7V, 100V, 220V, 380V
• Overload: Continuous 1.2 times of rated, instantaneous 2 times/5s
• Power Consumption: <1VA (each phase)
• Impedance: >1MΩ
• Current:
• Rated Current: AC1A, 5A
• Overload: Continuous 1.2 times, instantaneous 10 times/5s
• Impedance: <20mΩ (each phase)
• Frequency Range: 45–65Hz

Output

• Energy Pulse: 1-channel collector open coupling pulse output
• Output Mode: 3200imp/kWh
• RS-485 Communication: MODBUS-RTU
• Baud Rate: 1200, 2400, 4800, 9600, 19200
• Analog Output: 0–20mA, 4–20mA (programmable, ≤500Ω)
• Relay Output:
• Switching Value: 1-channel or 3-channel (sometimes supports 4-channel)
• Upper & lower limits use same relay (NO contact) to output AC-240V/1A
• Switching Value Input: 1 or 3-channel (same types, passive contact)

Safety

• Withstand Resistance: Among input, output, power supply and shell ≥2kV
• Isolation Resistance: Among input, output, and power supply ≥100MΩ/500V

Environment

• Temperature: Working -10–55°C; Storage -25–70°C
• Humidity: ≤85%RH, non-condensing, no corrosive gas situation

SPECIAL FEATURES

1. True RMS measurement, frequency and waveform change will not influence the accuracy of measurement.

2. Variable ratio can be set, it can also expand the functions of switching value input, switching value output, analog value output and communication.

3. It can realize the function of upper and lower limit out-of-limit alarming contact output.

4. Support various transmitting output specifications (which can be set freely: 0～10mA, 0～20mA, 4～20mA).

5. Standard RS-485 communication interface, MODBUS-RTU communication agreement, baud rate 1200～19200.

6. Efficient installation method, firm and reliable.

7. It support dual power source metering (DI trigger); Dual relay output.

8. It can measure the 2–31 harmonic content.
