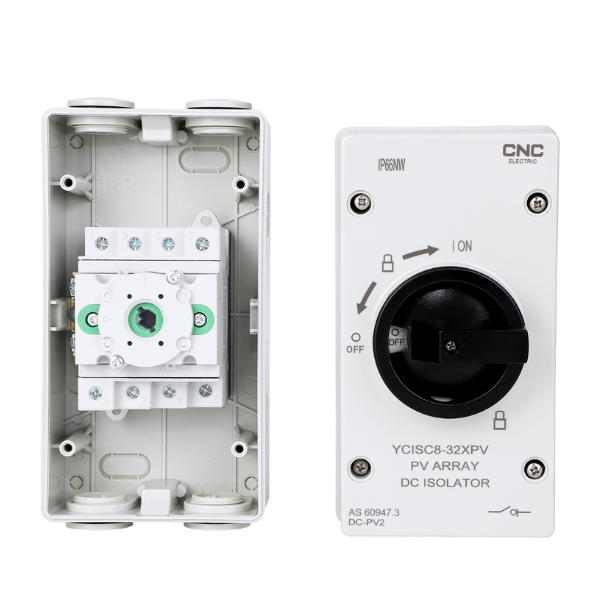

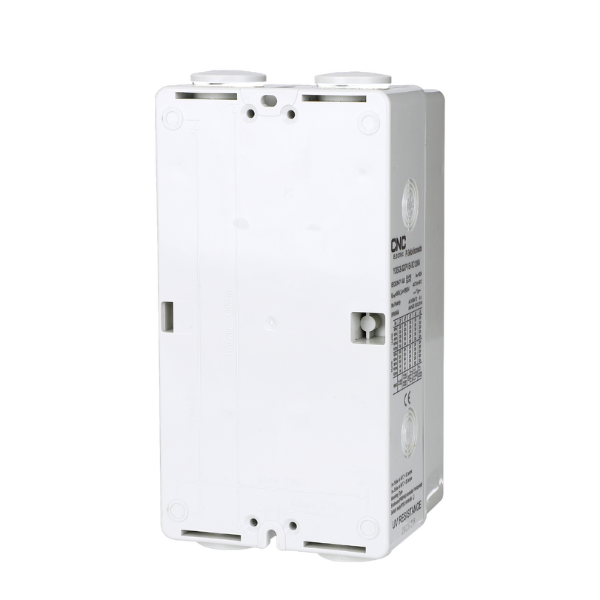

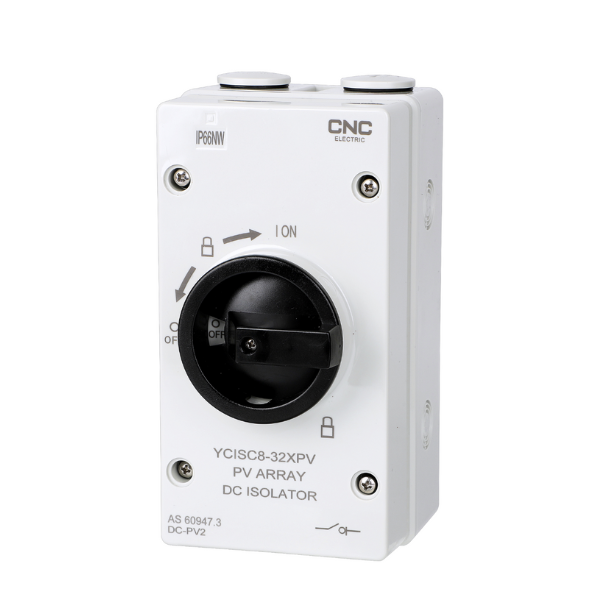

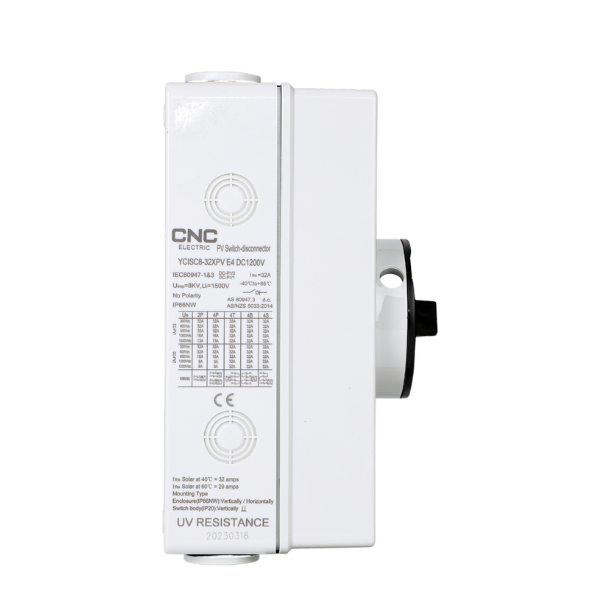

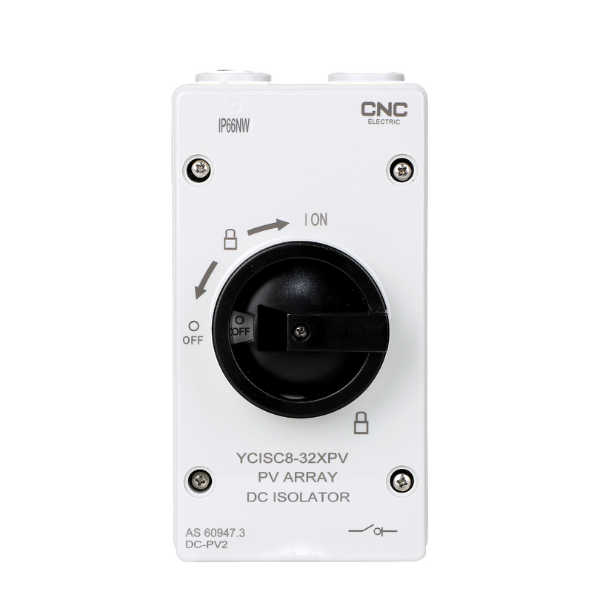

CNC DC Isolator 2-Pole – Wall Mounted Safety Switch
General Cage type isolation switch YC1SC8 series is suitable for DC power systems with rated...
Vendor:
C-Power
Availability:
Out Of Stock
- Rs.7,000.00
- Rs.7,000.00
- (-0%)
- Unit price
- per
10 customers are viewing this product
Couldn't load pickup availability
General
Cage type isolation switch YC1SC8 series is suitable for DC power systems with rated voltage DC1200V and below and rated current 32A and below. This product is used for infrequent on/off, and can disconnect 1-2 MPPT lines at the same time. It is mainly used in the control cabinet, distribution box, and combiner box of the photovoltaic power generation system, and is used for isolation of the DC power distribution system. The external waterproof performance of this product reaches IP66.
Standard: IEC/EN60947-3: AS60947.3, UL508i.
Features:
- E type external installation can reach IP66 waterproof level at any angle;
- UV resistant and V0 flame retardant material;
- Contact silver plating, silver layer thickness reaches the highest standard in the industry;
- Arc extinguishing time (3ms);
- The bottom of the external box is equipped with a breather valve;
- Nonpolarity;
- Lockable in closed position;
-
4 installation modes optional.
|
Electrical Performance |
Data |
|
Rated Heating Current (Ith) |
32A |
|
Rated Insulation Voltage (Ui, V DC) |
1500V |
|
Rated Working Voltage (Ue, V DC) |
1000V or 1200V |
|
Rated Impulse Voltage (Uimp, kV) |
8kV |
|
Rated Short-Time Withstand Current (Icw(1s), kA) |
1kA |
|
Rated Short-Time Making Capacity (Icm, A) |
1.7kA |
|
Rated Short Circuit Current (Icn) |
3kA |
|
Overvoltage Category |
II |
|
Polarity |
No polarity, "+" and "-" polarity can be interchanged |
|
Switch Knob Position |
9 o'clock position off, 12 o'clock position on (or 12 o'clock position off, 3 o'clock position on) |
|
Service Life |
Mechanical: 10000, Electrical: 3000 |
|
Maximum Wiring Capacity (Including Jumper Wires) |
|
|
Single Wire or Standard (mm²) |
4-16 |
|
Flexible Cord (mm²) |
4-10 |
|
Flexible Cord (+ Stranded Cable End) (mm²) |
4-10 |
|
Torque |
|
|
Tightening Torque of Terminal M4 Screw (Nm) |
1.2-1.8 |
|
Tightening Torque of Upper Cover Mounting Screw ST4.2 (304 Stainless Steel) (Nm) |
1.5-2.0 |
|
Tightening Torque of Knob M3 Screw (Nm) |
0.5-0.7 |
|
Bottom Wiring Torque (Nm) |
1.1-1.4 |
|
Environment |
|
|
Protection Degree |
IP20; External type IP66 |
|
Operating Temperature (°C) |
-40°C to +85°C |
|
Storage Temperature (°C) |
-40°C to +85°C |
|
Pollution Degree |
3 |
|
Overvoltage Category |
III |
Why Would You Want the CNC 2-Pole DC Isolator?
Safety and dependability of the CNC 2-Pole DC Isolator make it ideal for protecting your DC circuits. Ideal for solar or other DC system operations, this isolator switch guarantees simple and quick installation along with excellent design, so shielding the system from continuous damage and reducing system downtime.
