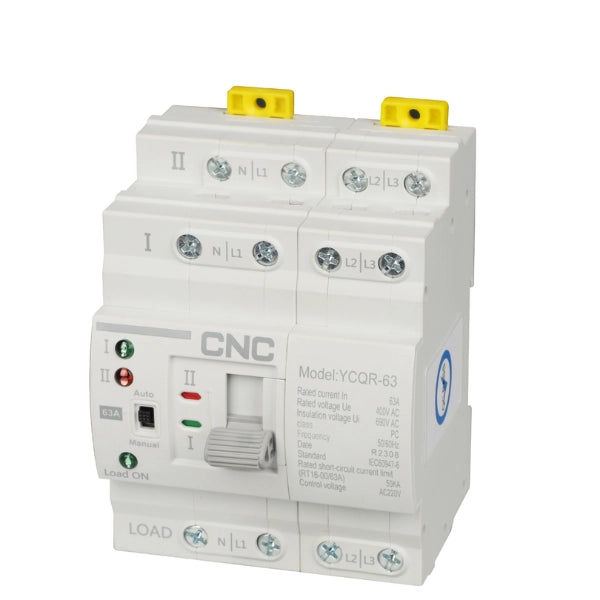

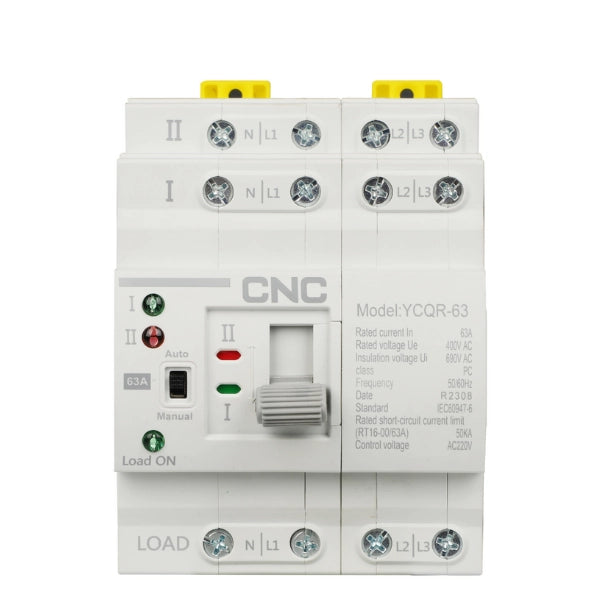

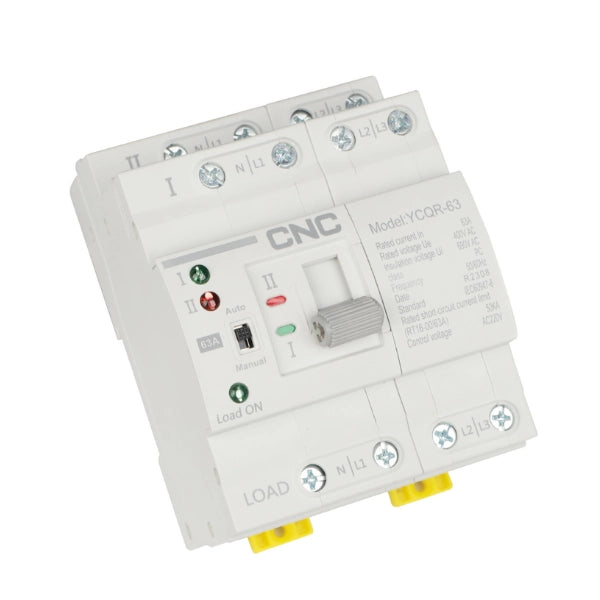

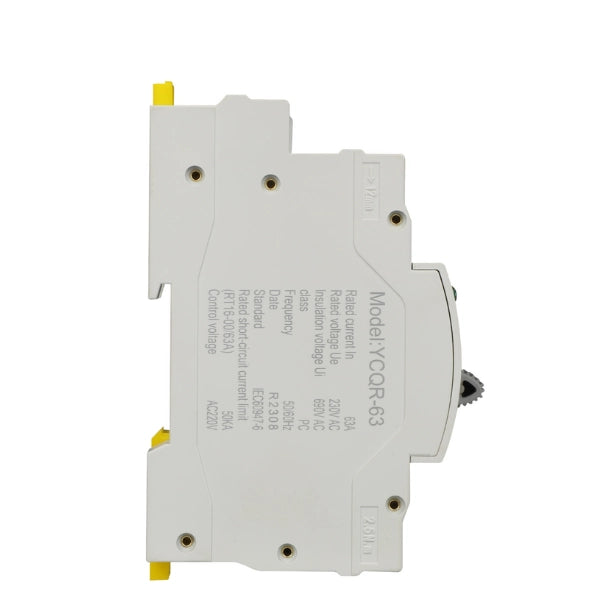

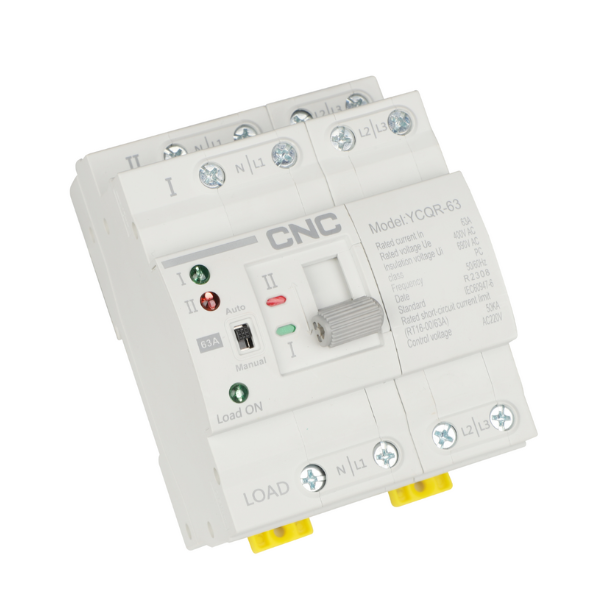

CNC 4 Pole ATS YCQR-63 Automatic Transfer Switch for Seamless Power Transition

General

●      Function: The ATS automatically switches to the backup power supply when the main power fails.

●      Design: The system includes a two-station design, commonly used for A (main) and B (backup) power sources.

●      Reliability: The Automatic transfer switch provides seamless power transitions with minimal downtime.

●      Ideal Use: Best suited for systems requiring non-stop power like industrial machinery, residential buildings, and commercial operations.

Automatic Transfer Switch Key Features

1. Fast and Efficient Power Switching
Automatically switches to backup power in case of main power failure, ensuring continuity.

●      Fast Switching Speed: Switches within less than 50 milliseconds for minimal downtime.

●      Dual Power Source: Seamlessly switches between common power and backup power.

2. Versatile Application
Perfect for a wide range of AC systems, both residential and commercial.

●      Wide Compatibility: Suitable for AC systems with frequencies of 50- 60Hz.

●      Flexible Current Range: Works efficiently with current ratings from 6A to 63A.

3. Enhanced Reliability
Designed to handle critical power transitions with robust operation.

●      Infrequent Changeover: PC-class design ensures durability and longevity.

●      Two-Station Design: Typically used for alternating between main and backup power supplies.

4. Quick Recovery from Power Failures
Maintains uninterrupted operations by ensuring seamless transitions.

●      Automatic Recovery: Instantly switches to backup when the main power supply fails.

●      Continuous Power Supply: Guarantees that critical systems remain powered without manual intervention.

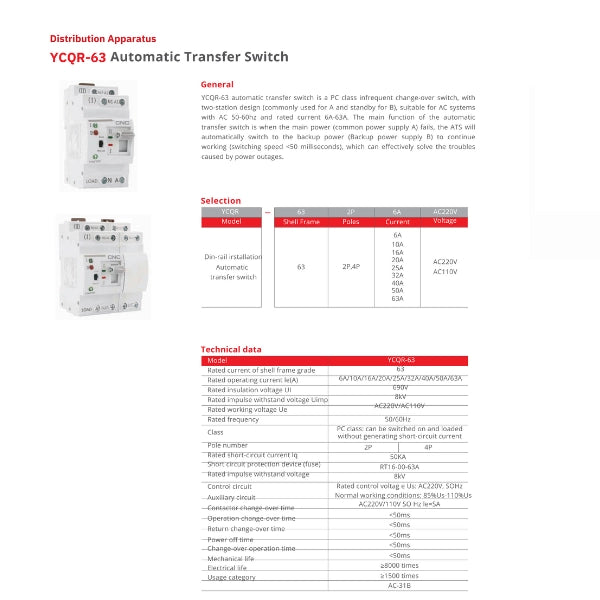

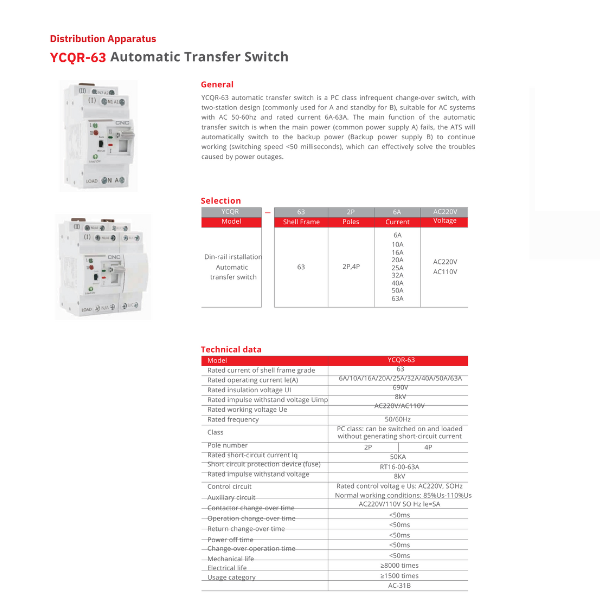

Automatic Transfer Switch Specification

●      Type: YCQR-63 4 Pole ATS

●      Frequency: 50- 60Hz

●      Rated Current: 6A to 63A

●      Switching Speed: ≤50 milliseconds

●      Design: PC Class, Infrequent Change-Over

●      Current Type: AC

●      Application: Ideal for switching between common and backup power sources

Brand

●      CNC Electric

Working Conditions:

Temperature:

• The temperature range for the operating environment is -5°C to +40°C, with a minimum requirement of +35°C for the average temperature within 24 hours. • The temperature range for the storage environment is -25°C to +55°C, with the potential to quickly reach +70°C within the same time frame.

Installation:

• The installation site must not be higher than 2000 meters.
When the outside air temperature is 40 degrees Celsius, the relative temperature at the location of the installation must not go higher than 50 degrees Celsius. When temperatures are lower, relative humidity levels might be higher. For instance, a higher relative humidity is tolerable in conditions with a low average minimum temperature.

• The wettest month has temperatures of +20°C and a maximum relative humidity of 90% on average for that month. To avoid condensation caused by variations in temperature, the right precautions should be taken.

The third stage of pollution is conductive pollution, which occurs when dry, non-conductive pollutants undergo condensation and become conductive. Both horizontal and vertical installations are possible for ATS in the cabinet. Get in touch with us if you have any unique installation needs. The ATS case has an IP30 protection rating.

• Category for overvoltage
Class III main circuits; Class II control and auxiliary circuits.
