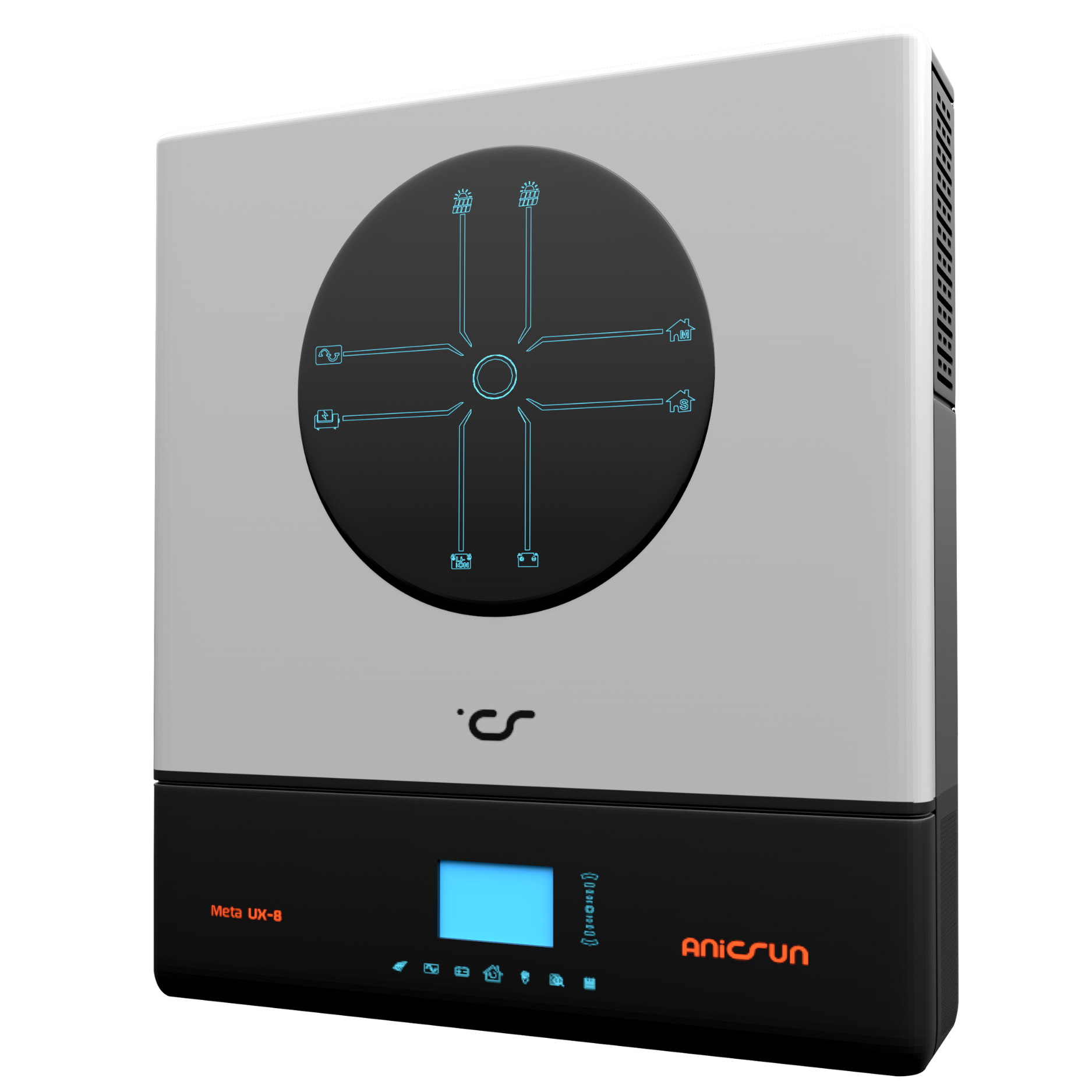

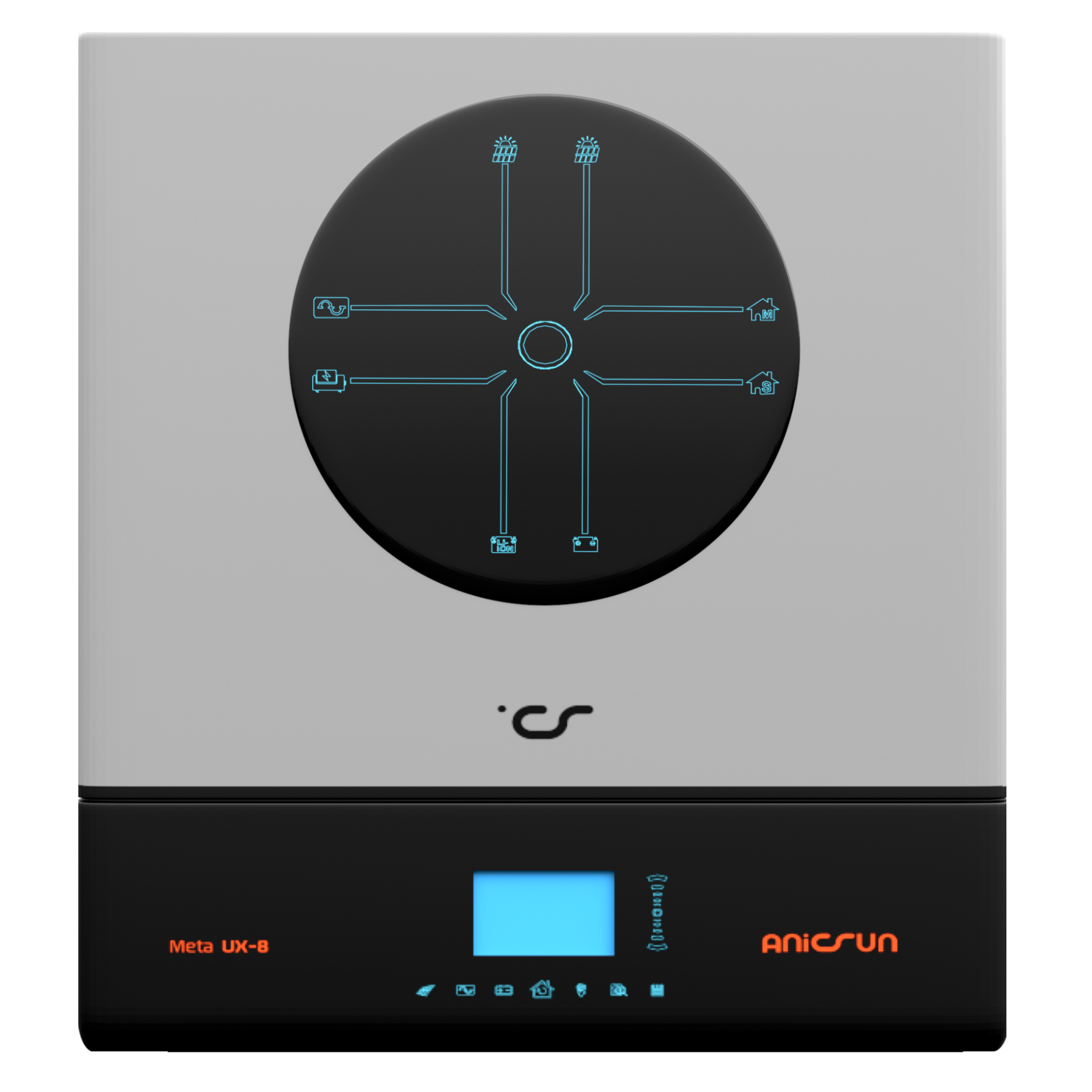

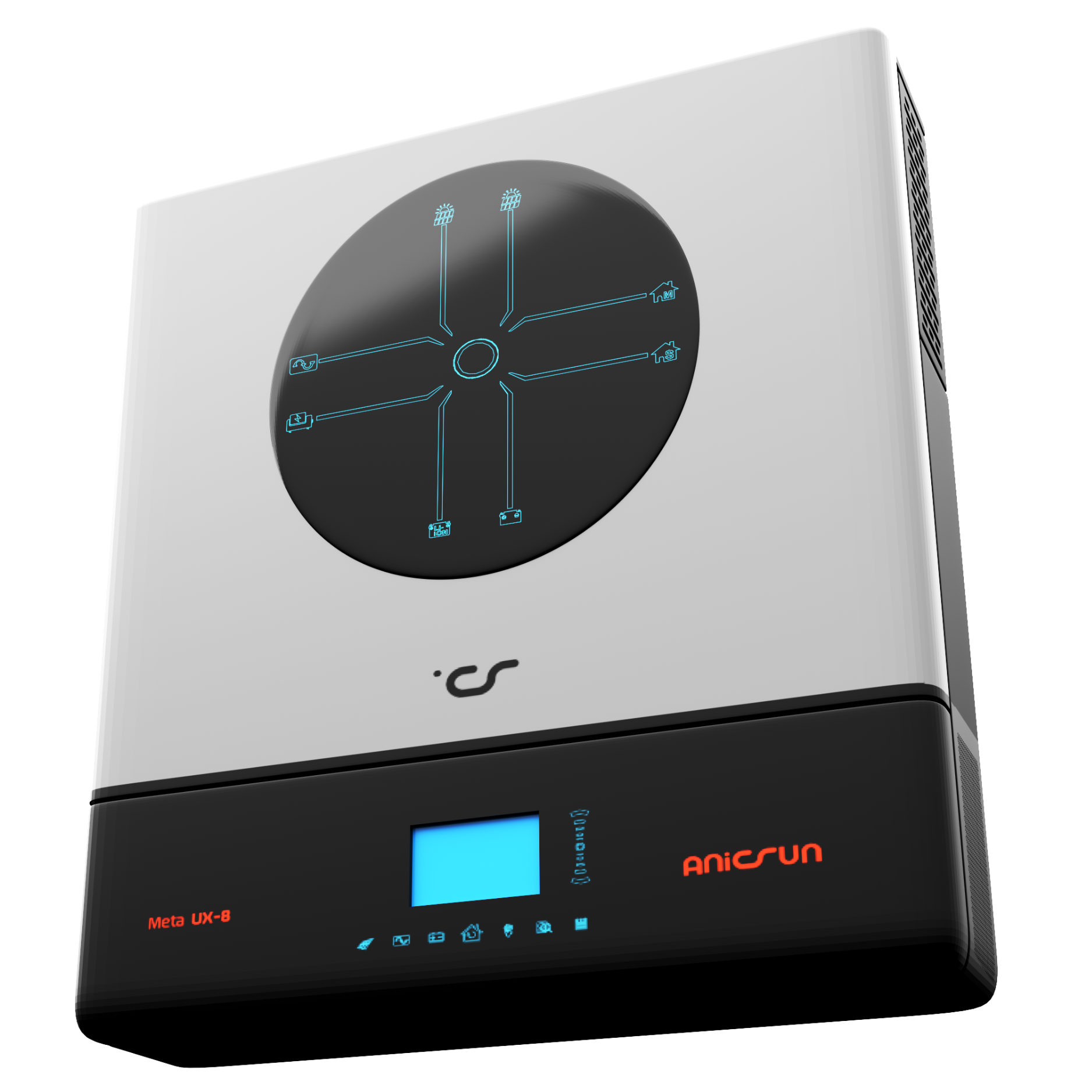

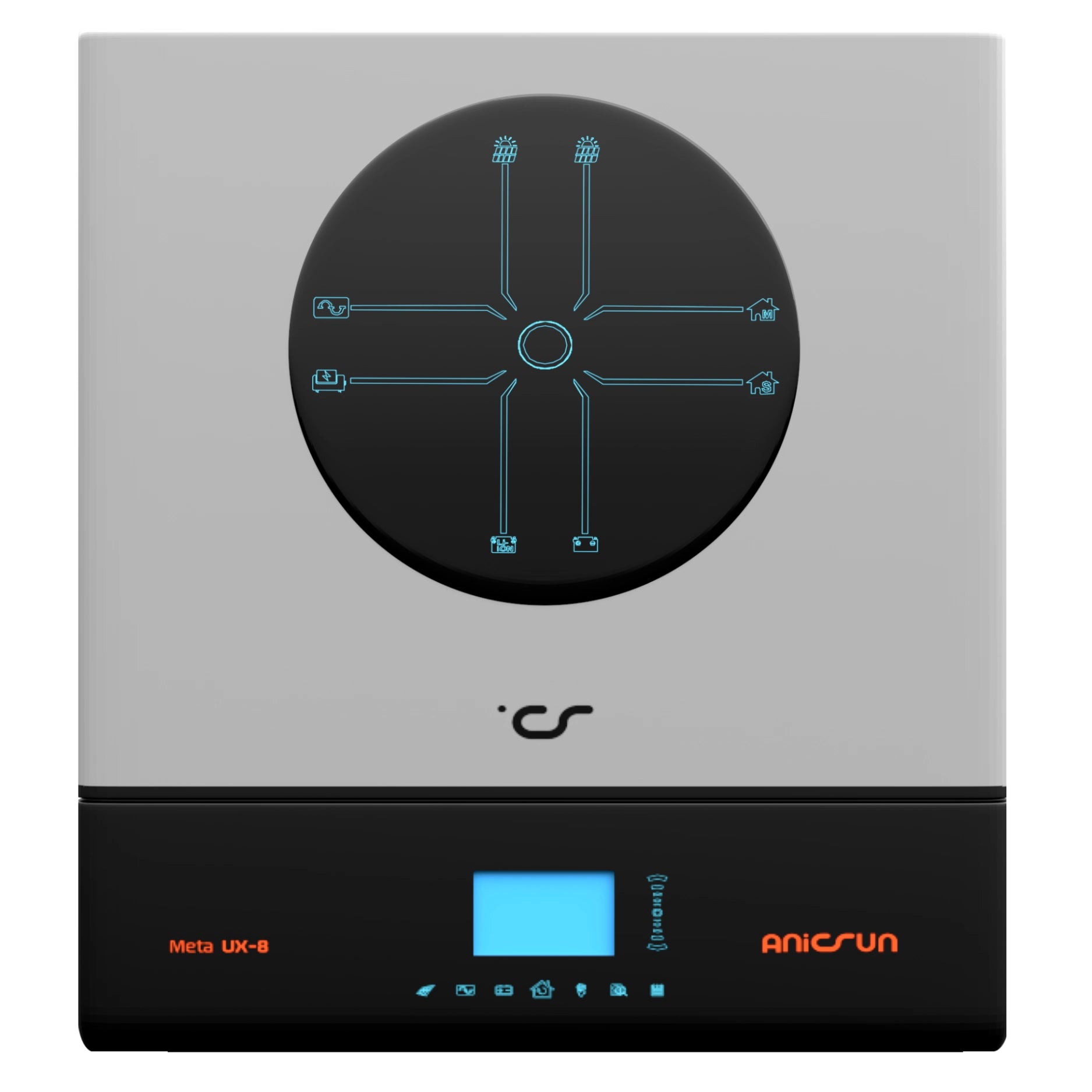

Anicsun Meta UX 8kW Hybrid Solar Inverter

PDF Document

The Anicsun Meta UX 8kW is a robust and efficient solar inverter engineered for both residential and commercial solar power systems. With its advanced technology and reliable performance, it ensures seamless energy conversion and delivers optimal power output. Designed to handle larger energy demands, the Meta UX 8kW is perfect for households and businesses aiming to maximize their solar potential.

Key Features:

• High Efficiency: Offers up to 98.5% energy conversion efficiency for superior performance.
• Powerful Output: Capable of managing high energy loads with an 8kW capacity, ideal for larger installations.
• Intelligent Monitoring: Built-in Wi-Fi and app connectivity for real-time system monitoring and management.
• Safety Assured: Includes advanced protections like overvoltage, overcurrent, and temperature control.
• Hybrid Compatibility: Supports both on-grid and off-grid systems, as well as battery storage integration.
• Weatherproof Design: IP21-rated enclosure for reliable performance in harsh environmental conditions.

Technical Specifications:

• Rated Power Output: 8kW
• Input Voltage Range: 200V – 600V
• Output Voltage: 230V/400V AC (three-phase)
• Efficiency: 98.5%
• Communication Interfaces: Wi-Fi, RS485, and CAN
• Operating Temperature: -25°C to 60°C
• Dimensions: 500mm x 400mm x 170mm
• Weight: 18kg

Applications:

• Large residential solar power systems
• Medium-scale commercial installations
• Hybrid and off-grid solar solutions
